37m³ Gas-Fired Shuttle Kiln | Energy-Efficient Alumina Powder Firing Furnace

Product Overview

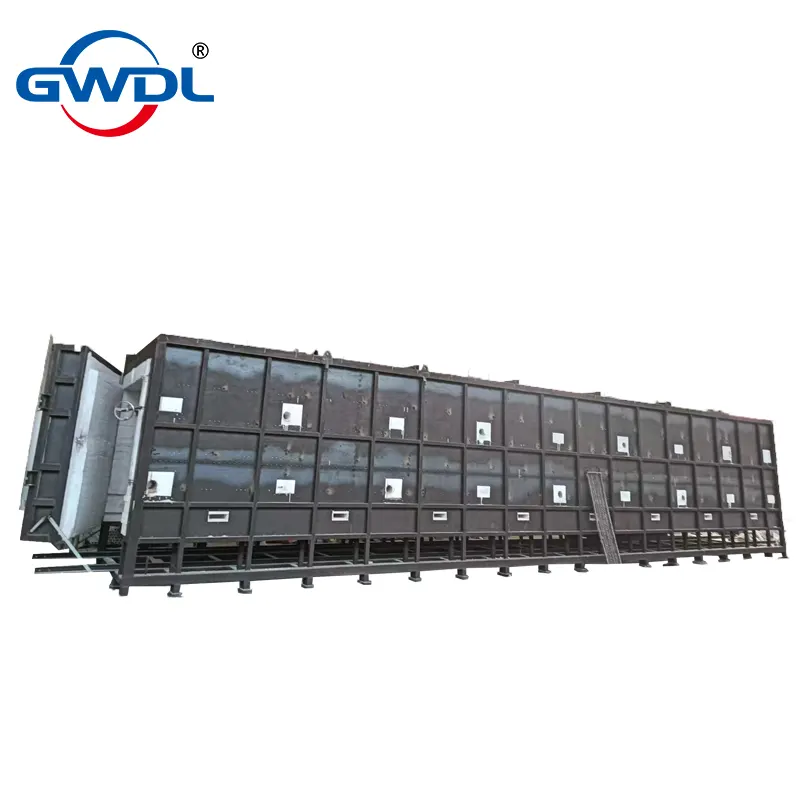

The 37m³ gas-fired shuttle kiln is an advanced firing solution designed for alumina powder and ceramic materials. Featuring a composite fiber + aerogel lining, 18 high-speed burners, and a DCS distributed control system, it provides energy efficiency, uniform heating, intelligent control, and operational safety, ensuring reliable high-volume production.

Technical Specifications

• Total Kiln Volume: 37m³
• Effective Loading Volume: 16.8m³
• Capacity: 35–50 tons
• Chamber Size: 14300 × 1740 × 1500 mm
• Working Temperature: 1250℃
• Design Temperature: 1300℃
• Number of Stacks: 8

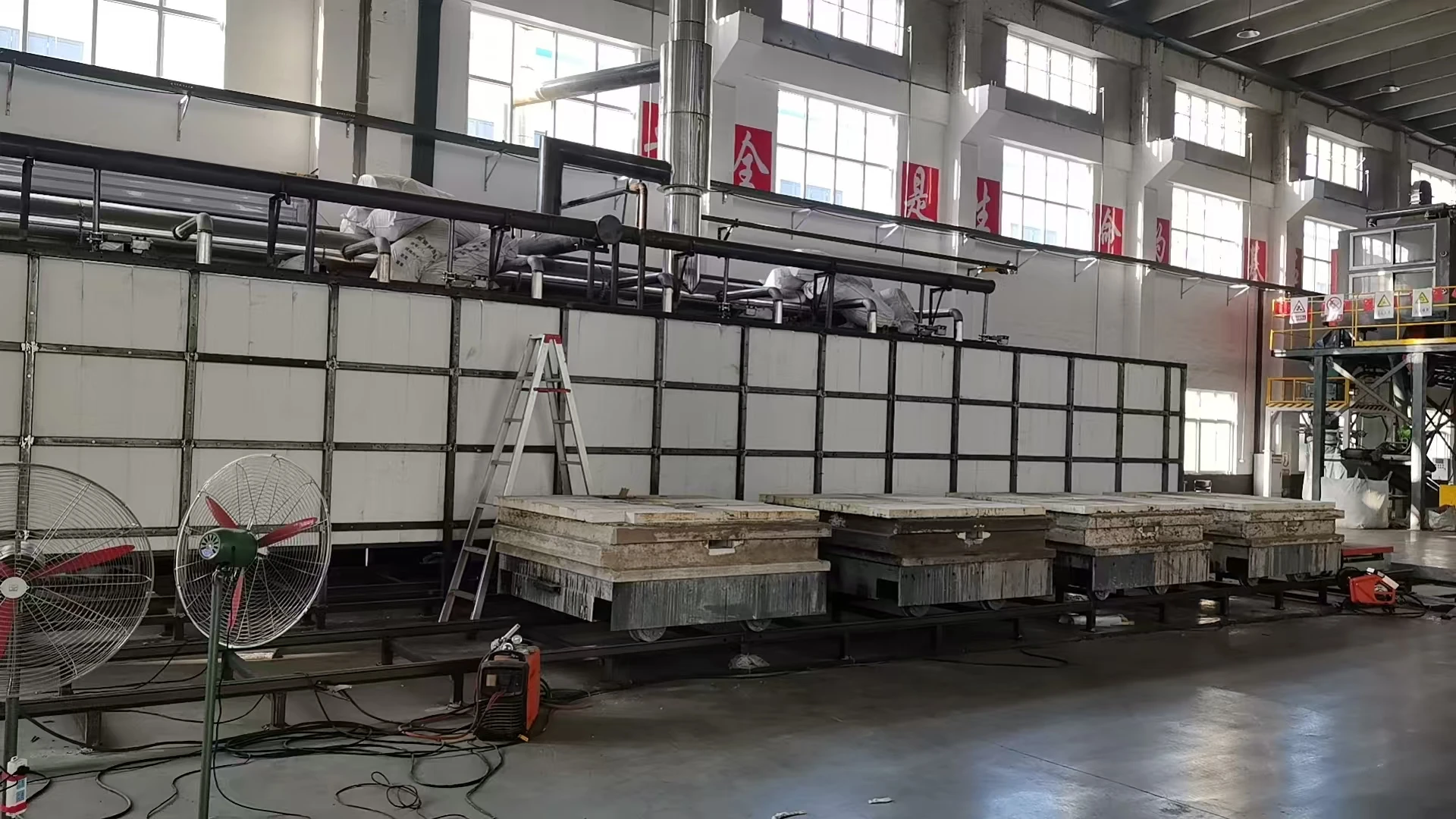

• Kiln Cars: 24 units (8 inside kiln, 8 cooling, 8 standby)
• Burners: 18 high-speed burners (230kW each)
• Fuel: Natural gas (QDW > 8600 kcal/m³, 8000–12000 Pa adjustable)
• Max Gas Consumption: 130 m³/h
• Control System: DCS system with 30 firing curve storage

Key Features

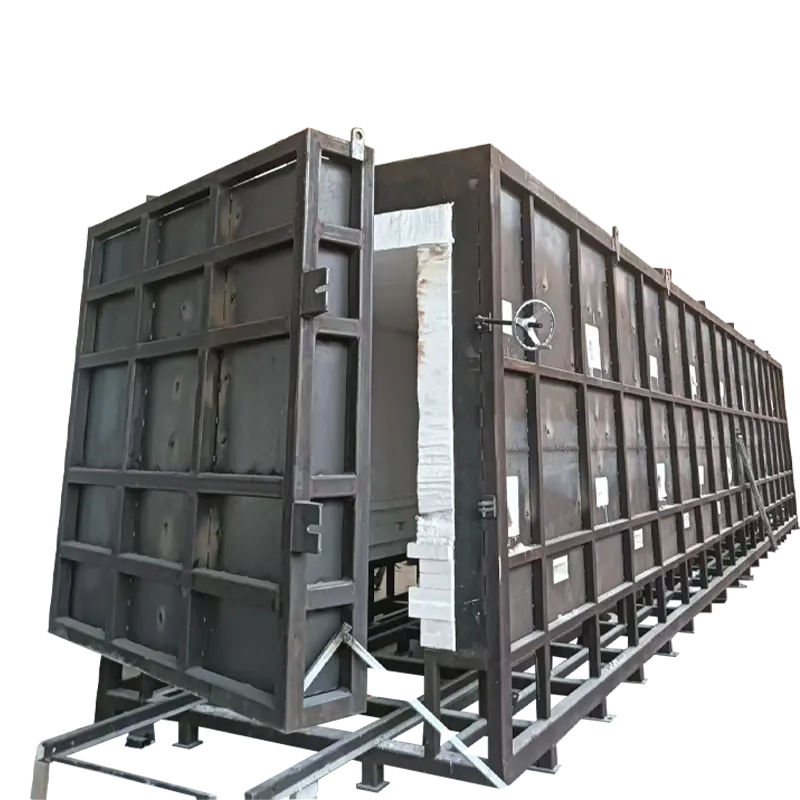

1. Energy Efficiency – Fiber + aerogel lining significantly reduces heat loss.
2. Uniform Heating – High-speed burners arranged alternately with circulating airflow.
3. Smart Control – DCS system for multi-variable decoupling, supports 30 firing curves.
4. Safety Assurance – CE & NFPA86 compliant, automatic gas cut-off & overpressure release.
5. Versatile Applications – Suitable for alumina powder, ceramics, refractories, and electronic ceramics.

Application Fields

• Alumina powder high-temperature firing
• Ceramic products sintering
• Refractory material processing
• Advanced ceramics & electronic ceramics firing
