With a three-zone independent heating system and adjustable rotation/tilt mechanism, the furnace ensures uniform heating, precise residence time control, and excellent process repeatability.

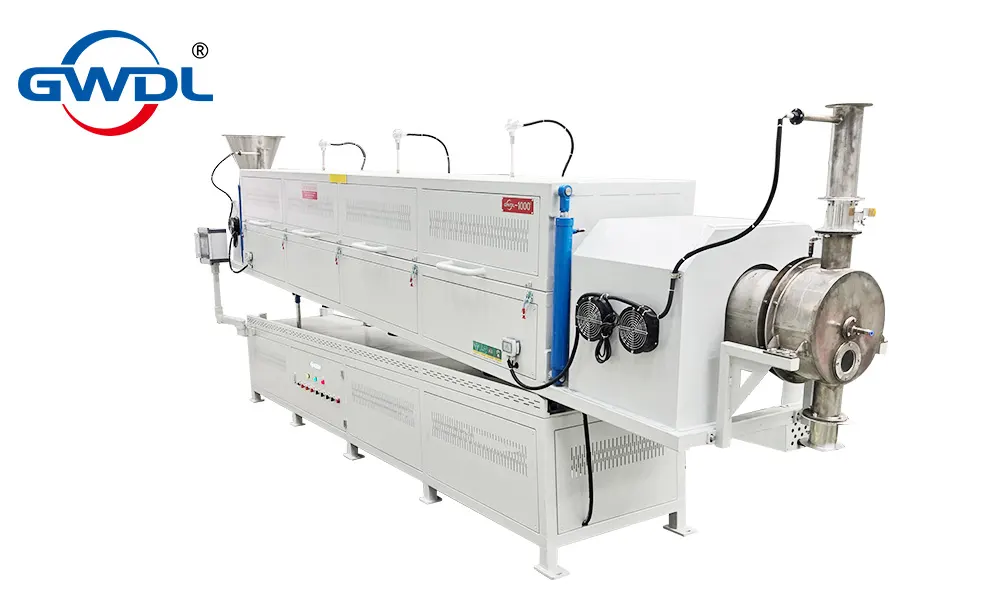

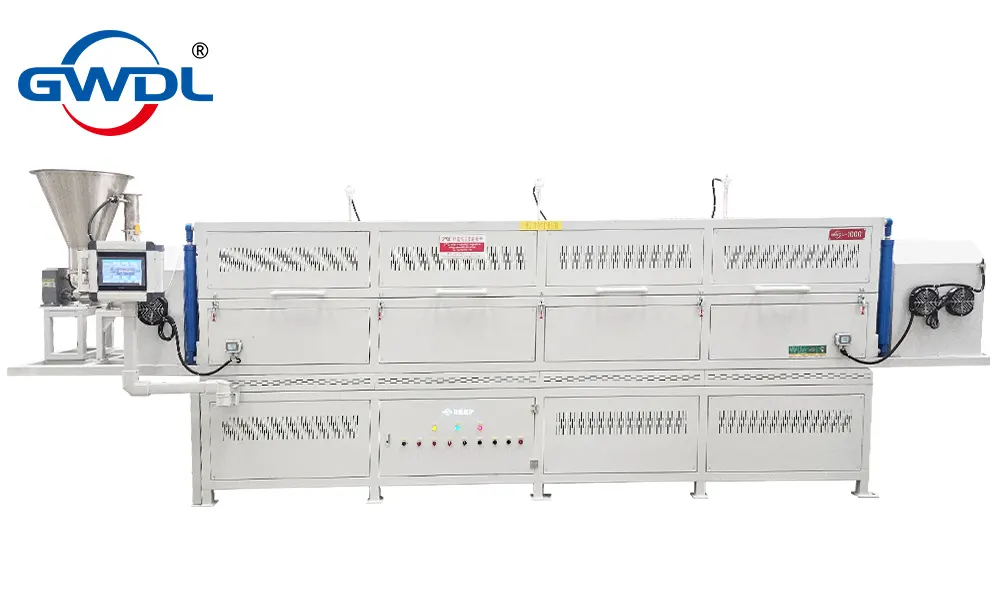

The GWL-KQGA-3 rotary atmosphere furnace is designed for continuous processing of powders, granules, and small bulk materials under controlled atmospheres. With a three-zone independent heating system and adjustable rotation/tilt mechanism, the furnace ensures uniform heating, precise residence time control, and excellent process repeatability.
It is widely used in catalyst calcination, ceramic powders, battery materials, and advanced inorganic processing, where a stable micro-positive pressure and atmosphere control are critical.
| Category | Details |
|---|---|
| Design Temperature | 1000℃ |
| Model | GWDL-KQGA-3 |
| Power Supply | 3P AC 380V ±10%, 50Hz |
| Power Rating | 70 kW |
| External Dimensions | 6000 × 1500 × 1900 mm |
| Tube Diameter | 300 mm, with welded lifting plates |
| Tube Length | 6000 mm (316L stainless steel, ≤800℃) |
| Heating Zones | 3 zones, each 1333 mm, total 4000 mm |
| Temperature Control | Independent PID, precision ±1℃ |
| Temperature Uniformity | ±5℃ |
| Thermocouple | K-type, 0–1350℃ |
| Tube Rotation | 0–5 rpm, adjustable |

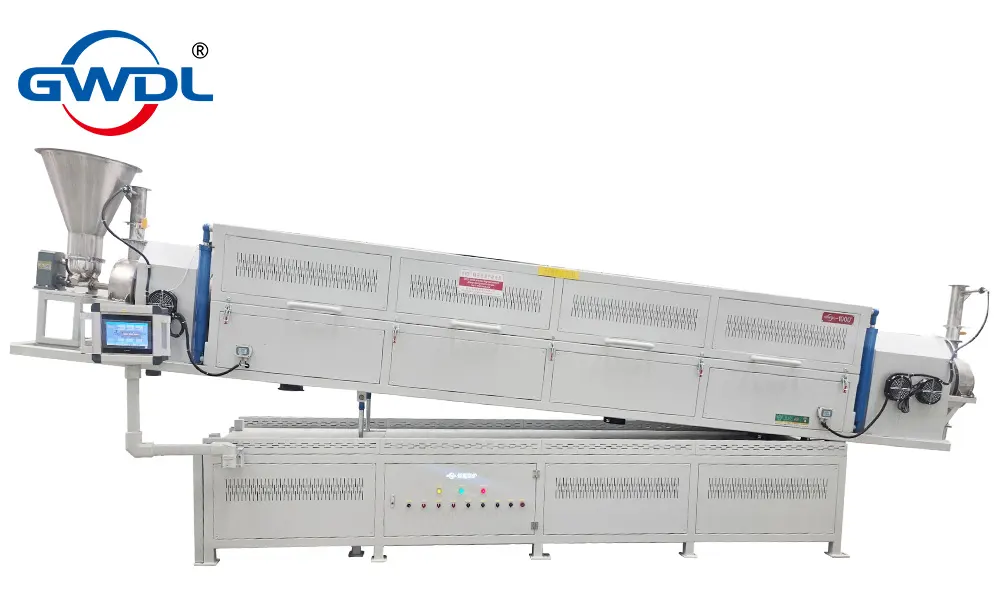

| Tilt Angle | 0–30° adjustable |
| Heating Elements | High-temperature alloy wire (Mo-containing) / SiC rods |
| Insulation | Three-layer: Al₂O₃ fiber board + polycrystalline alumina |
| Furnace Body | Double-layer steel shell, air-cooled, exterior < +25℃ |
| Control System | Siemens PLC + 10" touchscreen, curve storage, data logging, alarms |
| Feeding System | Screw feeder with anti-blocking design |
| Cooling System | Optional rapid cooling by fan purge |
| Gas System | Multi-porous inlet, DN65 exhaust, DN32 tar drain, semi-sealed for micro-positive pressure |
| Temperature Program | 30-step programmable curve, heating/cooling ramps, cycle, pause |
| Safety Protection | Dual-loop over-temperature, overcurrent, phase loss, soft start |
| Accessories | Manual, certificate, crucible tongs, gloves, sealing rings |
| Warranty | 1 year (heating elements & tubes: 3-month replacement for natural damage) |
