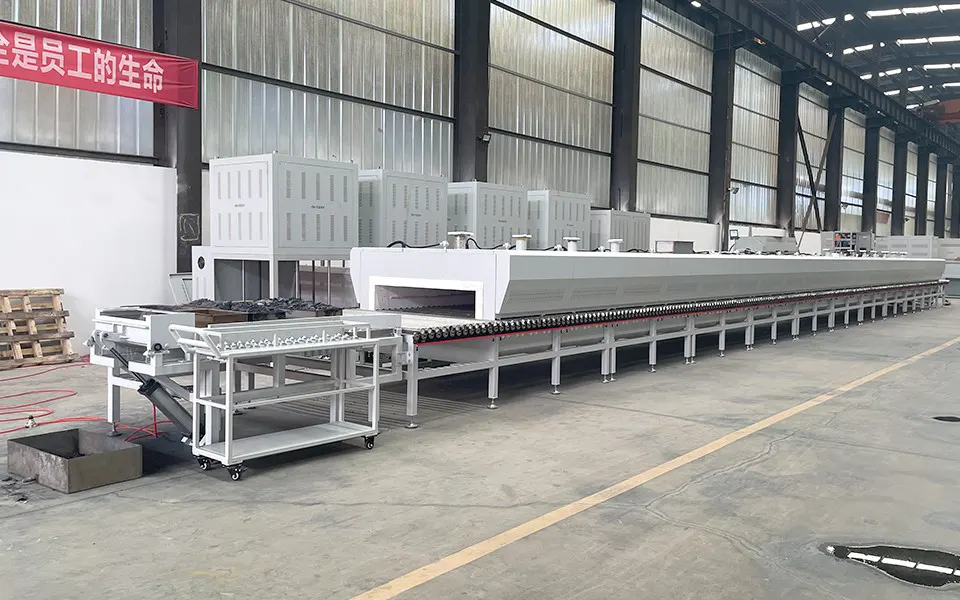

1000-degree high-temperature tunnel kiln

The independently developed high-efficiency tunnel kiln for material processing by Luoyang Juxing Kiln Equipment will be installed at the customer's facility in Australia to meet the production needs of their pilot plant.

Widely applicable in industries such as ceramics, refractory materials, and lithium batteries, this equipment enables continuous and intelligent production, significantly improving output capacity and energy efficiency.

Key Features of the Tunnel Kiln:

Main Structure Design: Includes a refractory outer shell, heating elements (heating coils), roller rods, and more.
Chamber Dimensions: 22 meters (length) × 1.3 meters (width) × 0.25 meters (height). It utilizes multi-layer composite refractory materials with a high-temperature resistance of up to 600°C.
Control System: Equipped with an industrial-grade touch screen and a precise temperature control system that supports multi-point touch. Ensures uniformity of temperature inside the kiln within ±10°C and stability within ±5°C, resulting in consistent product sintering quality. Offers processing capacities of both 30 kg/hr and 300 kg/hr.
Automation & Efficiency: Fully automated roller conveyor system with variable speed design to accommodate different processing times. The maximum material conveying speed reaches 5.8 meters per hour. Customizable kiln car designs are supported to minimize manual intervention, enabling 24-hour continuous production with an efficiency improvement of over 50%.
Energy Saving Innovation: Features innovative waste heat recovery technology, reducing energy consumption by 20%. Compliant with environmental standards, it helps enterprises achieve greener production.
Juxing Tunnel Kiln – Empowering Manufacturing with Technology, Driving Industrial Upgrading.
