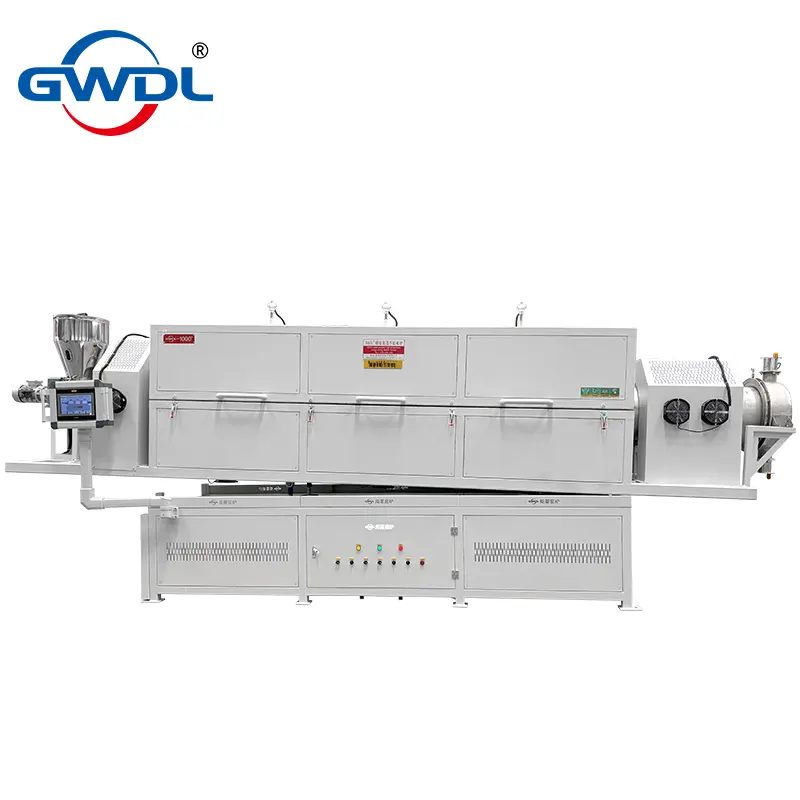

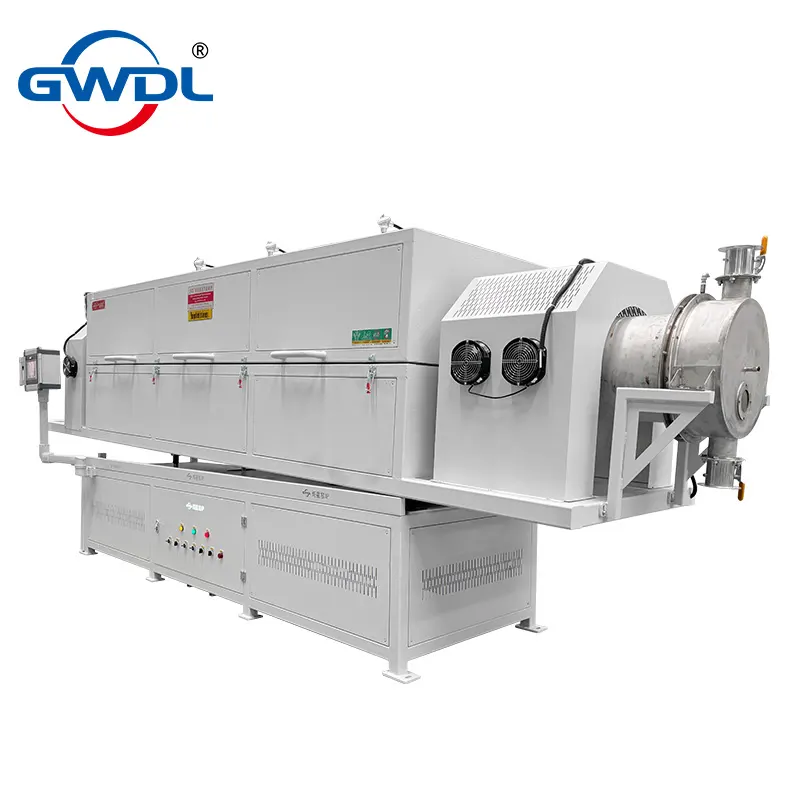

1000℃ Three-zone Rotating Tube Electric Furnace

The 1000°C three-zone rotary furnace is specially designed for high-temperature processes, suitable for scientific research and industrial applications such as powder calcination, material synthesis, and catalyst preparation.


Featuring independent temperature control across three zones, it enables precise thermal field regulation to ensure stable and reliable experimental data.
The furnace tube is made of 310S stainless steel, with a working size of diameter D300mm and length 4000mm. It is lined with high-purity alumina ceramic fiber for superior high-temperature resistance, energy efficiency, and performance. The furnace tube rotates at a constant speed to ensure uniform heating of samples.

With external dimensions of 6×1.5×1.9 meters and equipped with a screw feeding system featuring an anti-jamming design, it ensures safe and efficient operation. The temperature control curve is clear, allowing real-time monitoring of operational status.


Controlled via PLC, the furnace offers one-touch tilting and lifting of the furnace body for quick loading and unloading of materials, minimizing exposure to high temperatures.

It supports scientific innovation and the transformation of research outcomes. Built with precision craftsmanship, it is a reliable choice you can trust.
