Reliable Power Electronics – Fuji & Siemens components ensure long service life Safe to Use – No open flames, low-voltage output

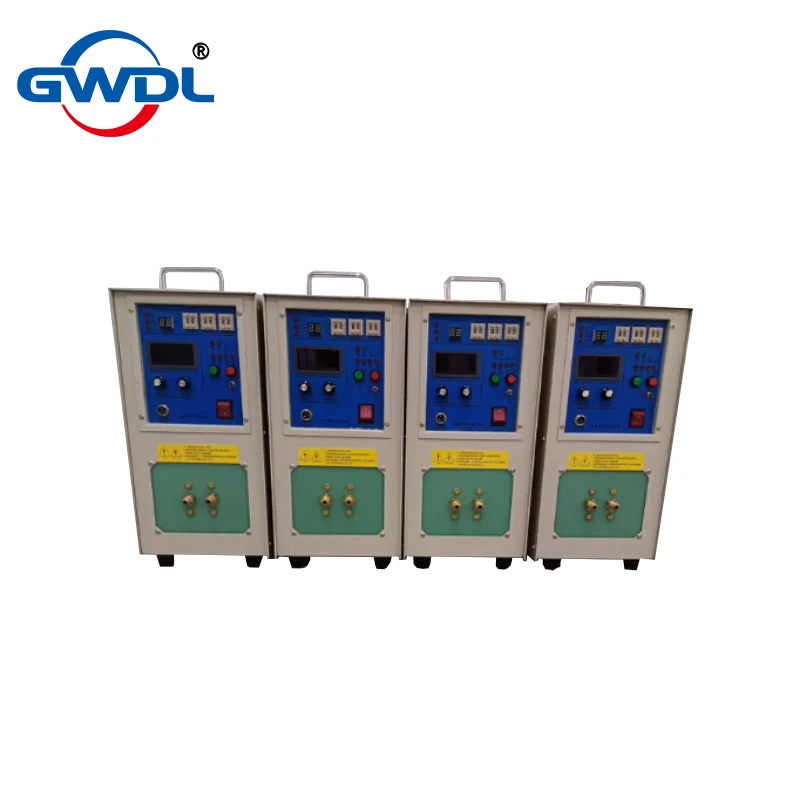

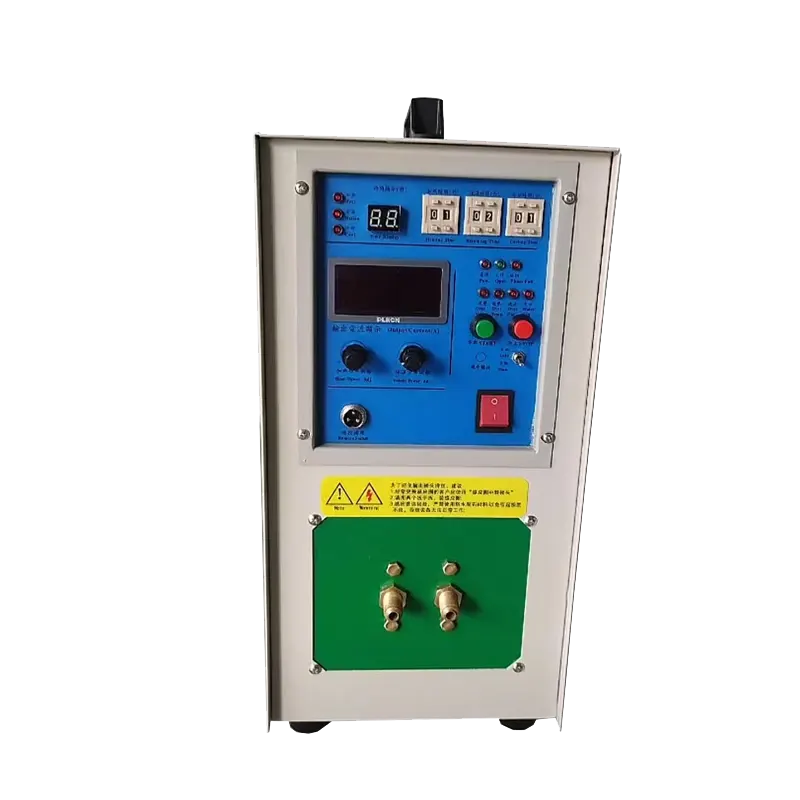

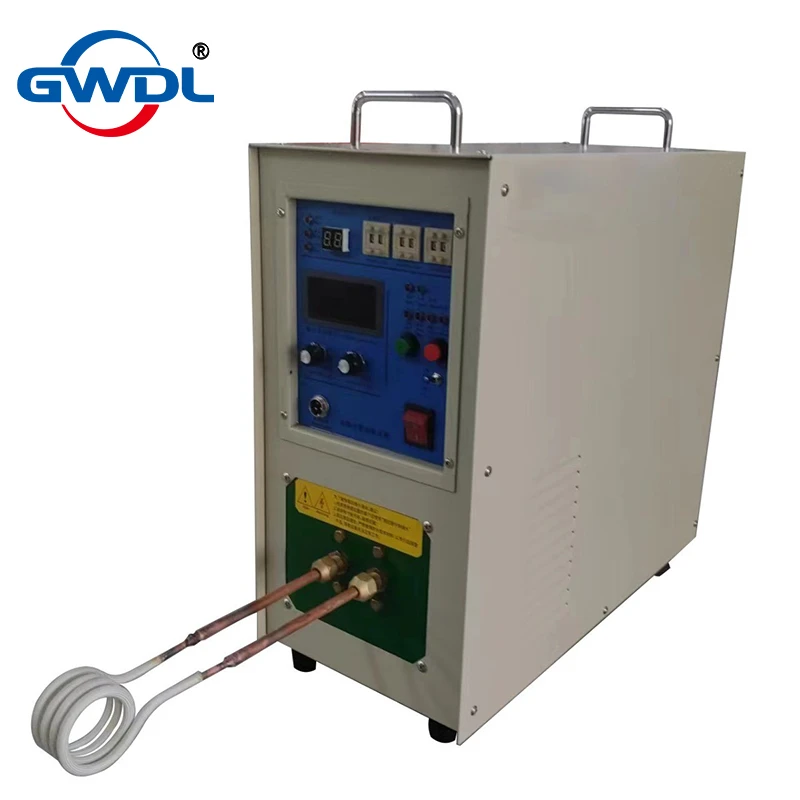

The GWDL high-frequency induction heating system is a compact, efficient, and self-controlled solution designed for precision metal heating. Equipped with Fuji MOSFETs and Siemens/Parker IGBT power modules, it adopts advanced single-regulated series-resonant topology, delivering superior stability, energy efficiency, and operational safety.
| Feature Category | Description |
|---|---|
| High Efficiency | Series-resonant design enables high power transfer efficiency with low energy loss. |
| Smart Control | Adjustable heating power and time, supports controlled heat ramp-up and preservation. |
| Plug-and-Play | Fast startup — connect to power and water, no external transformer needed. |
| Compact Size | Lightweight, portable design with small footprint for flexible deployment. |
| Safe Operation | Low-voltage output (<36V), water-cooled system, no open flames or combustion gases. |
| All-Metal Compatible | Suitable for both ferrous and non-ferrous materials. |
| Model | Input Voltage | Output Power | Duty Cycle | Frequency Range | Weight | Cable Length |
|---|---|---|---|---|---|---|
| GWDL-4kW-A | Single-phase 220V, 50/60Hz | 4 kW | 80% @ 30°C | 100–250 kHz | 20 kg | 2–6 m (adjustable) |
| GWDL-15kW-A | Three-phase 380V, 50/60Hz | 15 kW | 80% @ 30°C | 30–80 kHz | 24 kg | 2–6 m |
| GWDL-15kW-B | Three-phase 380V, 50/60Hz | 15 kW | 80% @ 30°C | 30–80 kHz | 30 kg | 2–6 m |
| GWDL-25kW-A | Three-phase 380V, 50/60Hz | 25 kW | 80% @ 30°C | 30–80 kHz | 29 kg | 2–6 m |
| GWDL-25kW-B | Three-phase 380V, 50/60Hz | 25 kW | 80% @ 30°C | 30–80 kHz | 34 kg | 2–6 m |
| GWDL-35kW-B | Three-phase 380V, 50/60Hz | 35 kW | 100% @ 30°C | 30–80 kHz | 56 kg | 2–6 m |
