Split-Type High-Frequency Induction Heating System | GWDL Series Industrial Heating

Product Overview

The GWDL Series is a split-type, intelligent high-frequency induction heating system designed for demanding industrial heating applications. Powered by dual-regulated IGBT/MOSFET frequency and power control, the system ensures automatic frequency tracking, precise temperature control, and 100% continuous duty operation.

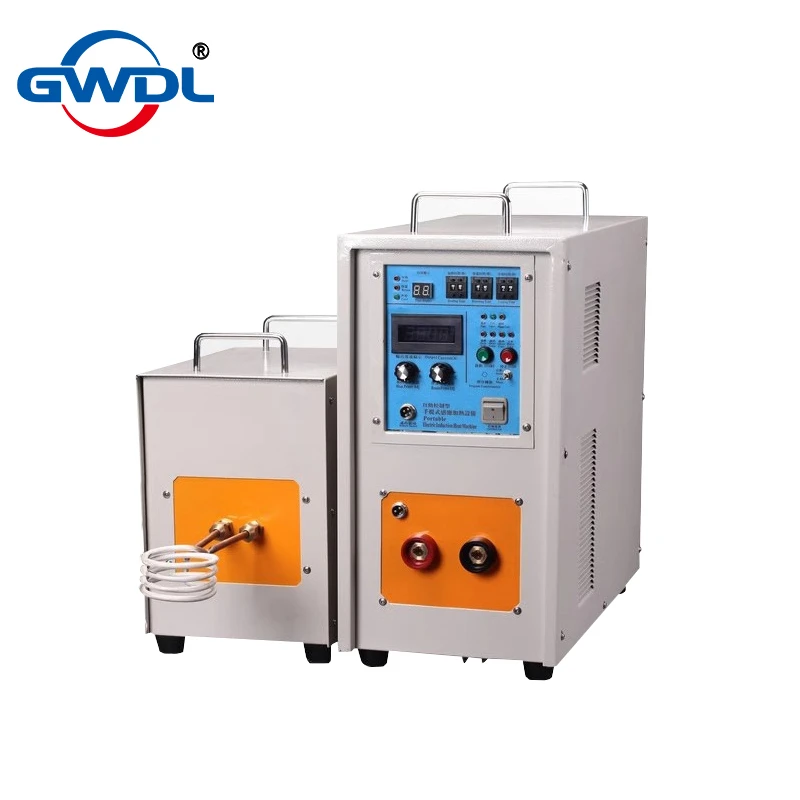

Its modular (split) configuration separates the power supply unit and heating unit, allowing flexible installation, easier maintenance, and higher adaptability to various process layouts.

System Composition

Component	Description
Power Supply Unit	Equipped with high-efficiency IGBT inverter modules (45–160 kW) for stable energy delivery.
Heating Unit (Inductor)	Water-cooled inductor with optimized coil design for rapid, uniform heating.
Control Panel	User-friendly interface with digital display, auto-tuning, power/time adjustment.
Auxiliary Cabinet	Includes control logic, safety interlocks, water circuit, and external IO interface.

Working Principle

Electromagnetic Induction:
High-frequency alternating current generates an oscillating magnetic field via the inductor.
Conductive metal parts within this field produce eddy currents, generating heat internally and rapidly.
Dual-Regulated Control:
The system automatically adjusts both frequency (30–80 kHz) and power output to track load changes in real time, ensuring thermal stability even under fluctuating working conditions.
Split-Type Advantage:
Separates the control/power module from the heating head, minimizing electromagnetic interference and reducing space requirements at the work site.

Core Product Advantages

Feature	Benefit
Split Structure	Easier installation, reduced thermal interference, flexible positioning.
IGBT-Based Inverter Tech	Fast heating, high efficiency (>95%), stable performance even at full load.
100% Duty Cycle	Supports 24/7 industrial operation without overheating or power drops.
Smart Self-Control System	Auto-tuning for frequency & power, real-time monitoring, plug-and-play usability.
High Safety Standards	No open flames, low-voltage heating coil, multi-layer protection (overheat, water, etc.).
Water Cooling System	Adjustable pressure & flow rate for enhanced cooling and longer component life.

Technical Specifications

Model	GWDL-45KW-B	GWDL-60KW-B	GWDL-90KW-B	GWDL-120KW-B	GWDL-160KW-B
Input Voltage	3-phase 380V / 50–60Hz (standard)
Output Power	45 kVA	60 kVA	90 kVA	120 kVA	160 kVA
Frequency Range	30–80 kHz (auto-tracking)
Max Input Power	50 kVA	66 kVA	99 kVA	132 kVA	176 kVA
Cooling Pressure	0.3–0.6 MPa (adjustable per model)
Duty Cycle	100% @30°C continuous
Main Unit Size	See table below
Weight	64–135 kg (varies by model)
Cable Length	2–6 meters (customizable)

Size Chart

Unit	Dimensions (mm)
GWDL-45KW-B Main	550×240×355
GWDL-60KW-B Main	650×285×510
GWDL-90KW-B Main	680×370×600
GWDL-120/160 Main	690×370×640
Auxiliary Unit	470–900 × 265–500 × 430–600

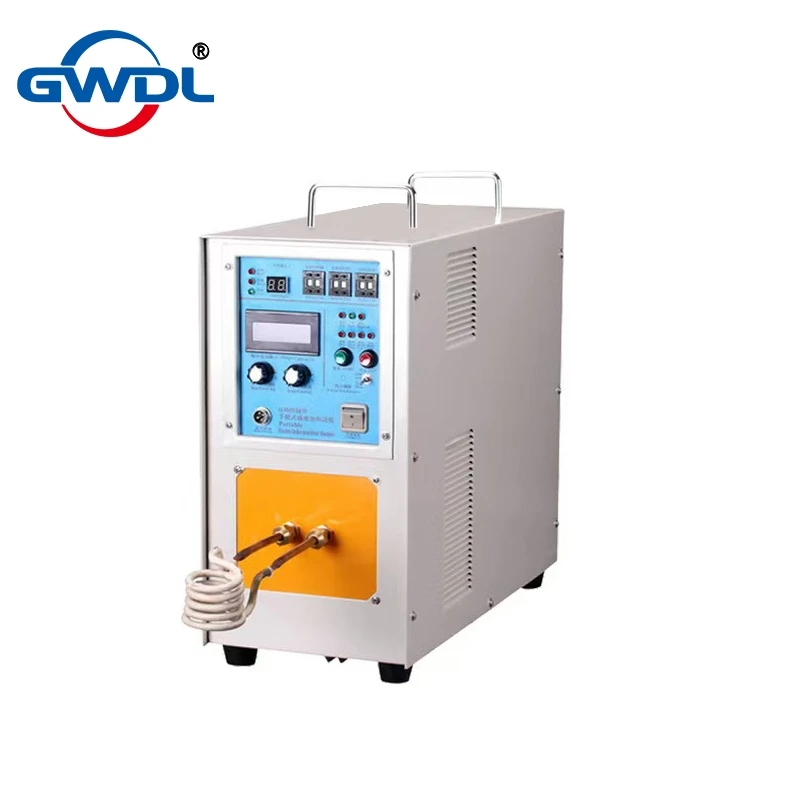

Split-Type Intelligent High-Frequency Induction Heating System
