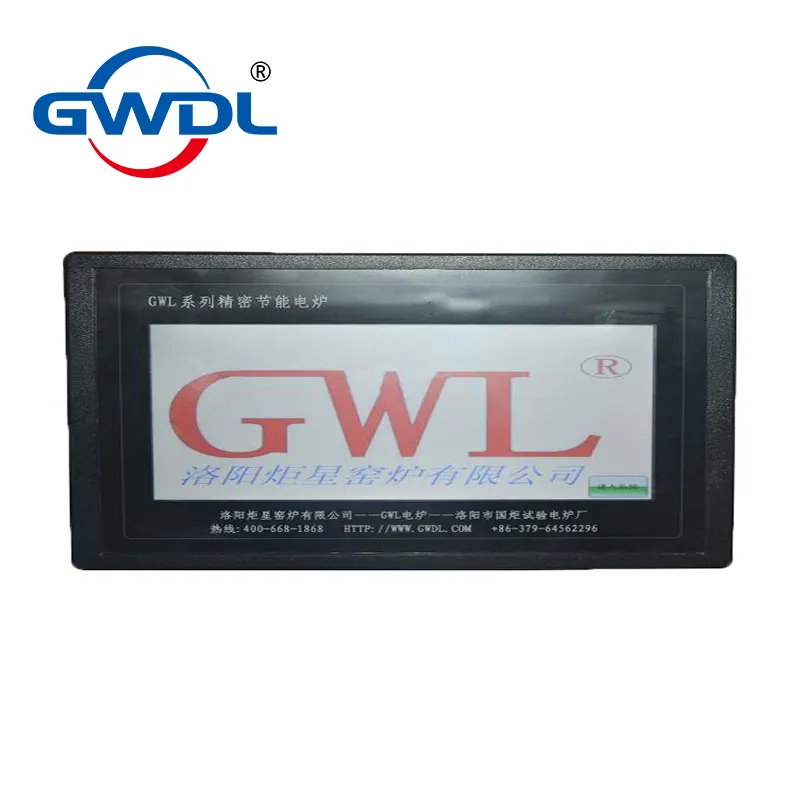

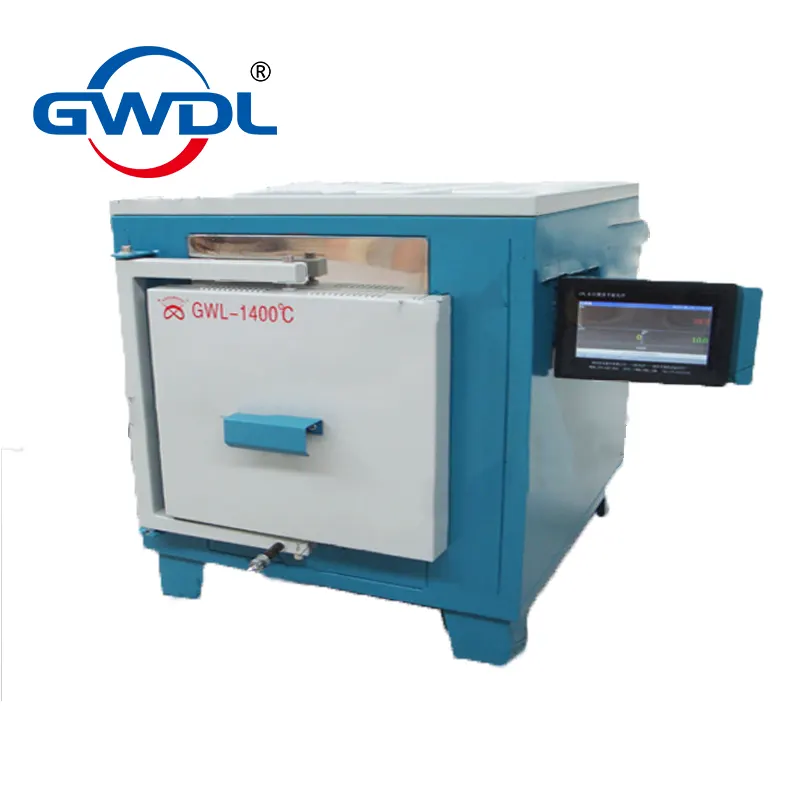

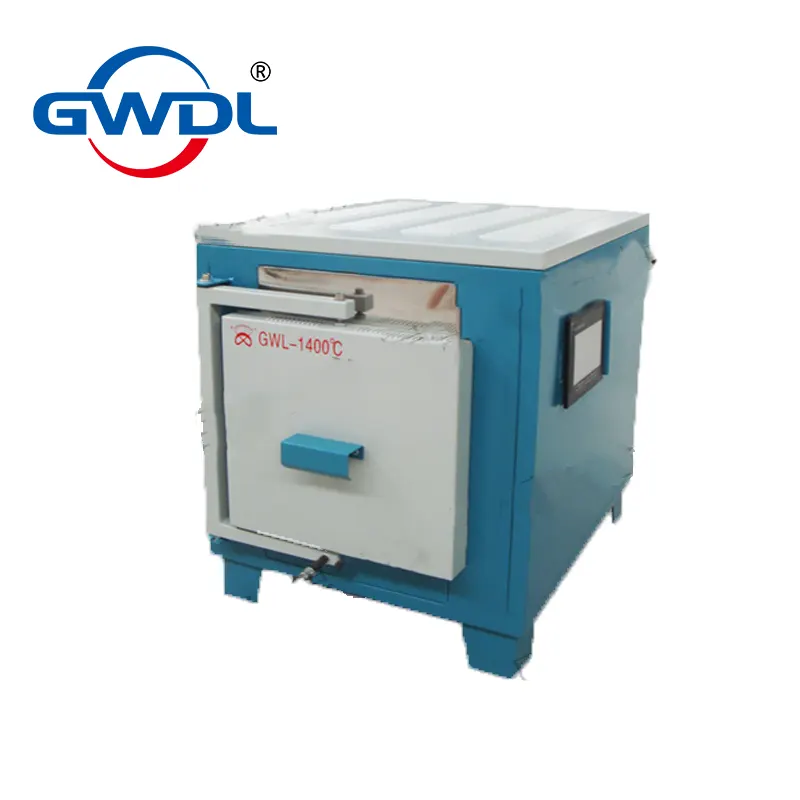

GWL - Touch Screen Box-type Electric Furnace, featuring a 7-inch screen that supports Chinese-English switching, precise temperature control, 30 programmable temperature curves, and 20 months of data storage. It comes with password protection, RS485 communication, and USB data export, meeting the precise control needs of multiple electric furnaces.
| Size | 7-inch TFT true color |
| Overall Dimensions | 206W×156H×50D (mm) |
| Resolution | 800×480 |
| Backlight | LED |
| Power | 5W |
| Weight | 1Kg |
| Language | Chinese/English, freely switchable |

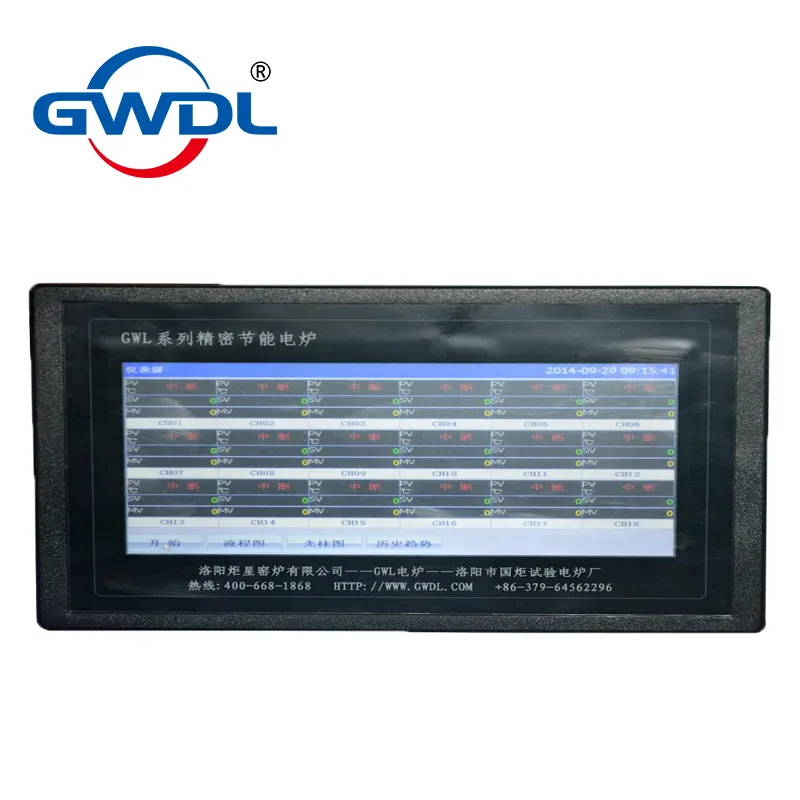

| Full-Screen Display and Operation | Instrument screen, light column graph, historical trend, data report, alarm information, data export, process flow, system management, etc. |
| Controlled Objects | Temperature, pressure, flow, liquid level, etc. |
| Number of Controlled Electric Furnaces | 1-6 units |
| Temperature Control | Touch screen + high-precision integrated module |
| Start Heating | Touch operation |
| Pause Heating | Touch operation |
| Stop Heating | Touch operation |
| Temperature Curve Compilation | Touch operation, 30 segments per curve |
| Number of Stored Temperature Curves | Unlimited (each curve can be named in Chinese/English) |
| Real-Time Status Display | Running curve name, running segment number, segment time, segment running time, digital temperature, real-time curve, power output percentage |
| Select Segment to Start (Cross-Segment Start) | Touch operation |
| Curve Range | Adjustable |

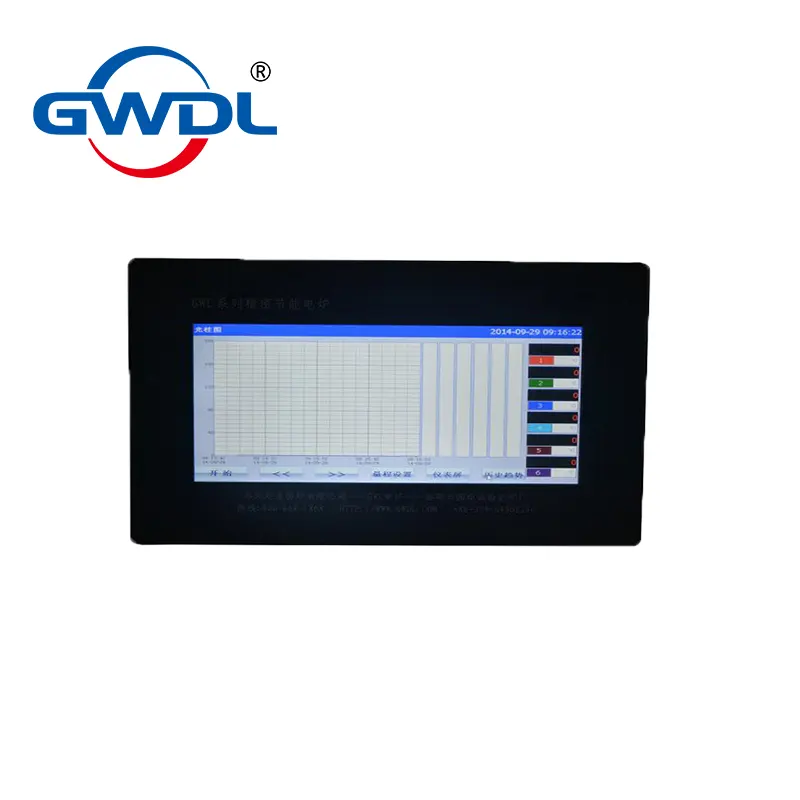

| Historical Curve (Graphic) | Approximately 20 months of storage |
| Data Report (EXCEL) | Approximately 20 months of storage, multi-point simultaneous display (expandable via USB flash drive) |
| Interval for Historical Curve and Report Recording (Storage) | Adjustable from 1 second to 3600 seconds, multi-point simultaneous display (expandable via USB flash drive) |
| Alarm Indication | Color change (red) |
| Alarm Information Language | Displayed in Chinese (alarm time and event described in Chinese) |
| Data Export Interface | USB |
| Printer Interface | Parallel port |
| Touch Screen Operation Protection | With password setting (unauthorized operation without password is prohibited) |
| Communication Port | RS485 |
