The high-temperature resistant screw conveyor is optimized for conveying high-temperature materials ≤950℃. Its main body is made of high-temperature stainless steel and ceramic structures, the screw blades are made of high-temperature resistant stainless steel, and the bearings are high-temperature resistant or ceramic ones. The chain transmission between the drive and the main machine reduces heat transfer, ensuring long-term stable operation in high-temperature environments.

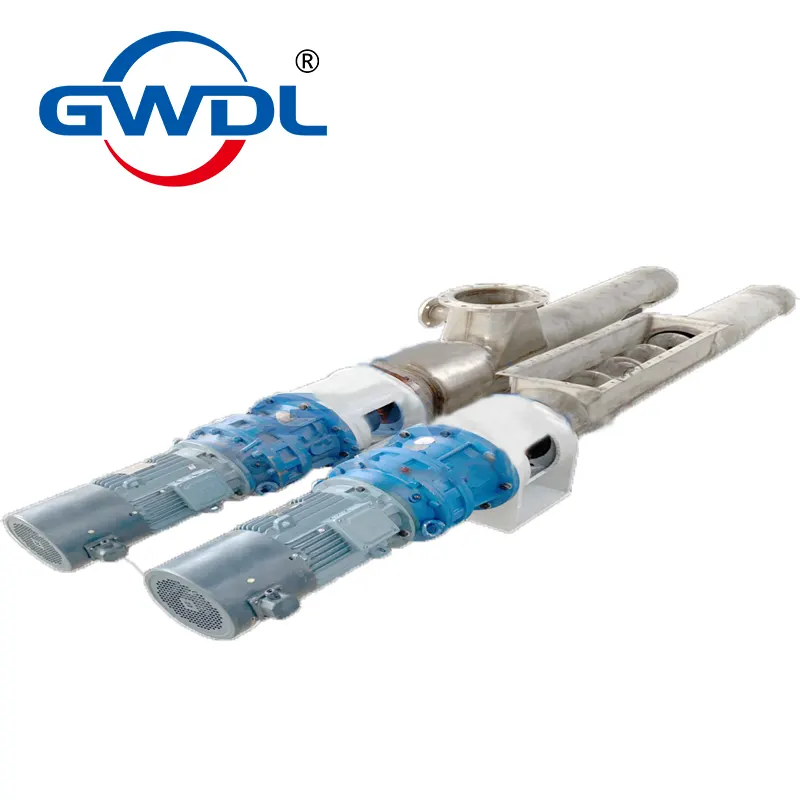

The GWL-SF high-temperature resistant screw conveyor is an improved version of the tubular screw conveyor, suitable for conveying high-temperature materials with a temperature typically below 950°C. The main body of the conveyor adopts a design combining high-temperature stainless steel and ceramic structures; the screw blades are made of high-temperature resistant stainless steel; the bearings use high-temperature resistant bearings or ceramic bearings; and the drive unit is connected to the main machine via chain/gear transmission to reduce heat transfer. These features ensure the conveyor can operate reliably in high-temperature material environments for long periods.
Technical Specifications of High-Temperature Resistant Screw Feeder
| No. | Parameter | Unit | Typical Value / Range | Description / Notes |
|---|---|---|---|---|
| 1 | Maximum Operating Temperature | ℃ | 500 ~ 600 | Highest temperature at which feeder can run stably |
| 2 | Conveying Capacity | m³/h or kg/h | 3 ~ 10 m³/h (≈ 1500 – 7000 kg/h, depending on material) | The throughput under designed conditions |
| 3 | Screw Diameter / Pitch | mm | Ø 300 / 300 (or Ø 400 / 400) | Outer diameter and pitch of the screw |
| 4 | Material of Construction | — | SUS316, 310S, high-temperature alloy | Material must have high temperature strength & oxidation resistance |
| 5 | Cooling / Insulation Type | — | Inner hollow screw + water jacket / insulation jacket | To control temperature during conveying |
| 6 | Sealing / Leakage Prevention | — | High-temperature stuffing box, metal bellows seal | To prevent material or gas leakage |
| 7 | Drive Motor Power | kW | 2.2 ~ 5.5 kW (depending on load) | Motor power rating |
| 8 | Rotational Speed | rpm | 20 ~ 100 rpm | Speed of screw rotation |
| 9 | Temperature Measurement Accuracy | ± | ±1 ℃ | Accuracy of thermal sensors (thermocouples) |
| 10 | Wear-resistant Treatment | — | Hard-facing, ceramic coating, high-chrome cladding | Surface treatment to resist abrasion |
| 11 | Maximum Allowable Pressure | MPa | 0.1 MPa (1 bar) | If the feeder is used in pressurized or sealed environments |
| 12 | Ambient Temperature Range | ℃ | 0 ~ 50 | Allowed environmental conditions |
| 13 | Weight (approx.) | kg | 500 ~ 1000 | Device weight excluding accessories |
| 14 | Mounting Orientation | — | Horizontal / Slight incline (≤ 10°) | Installation orientation limits |
| 15 | Control Interface | — | PLC + Touchscreen | For monitoring & control (optional features) |
