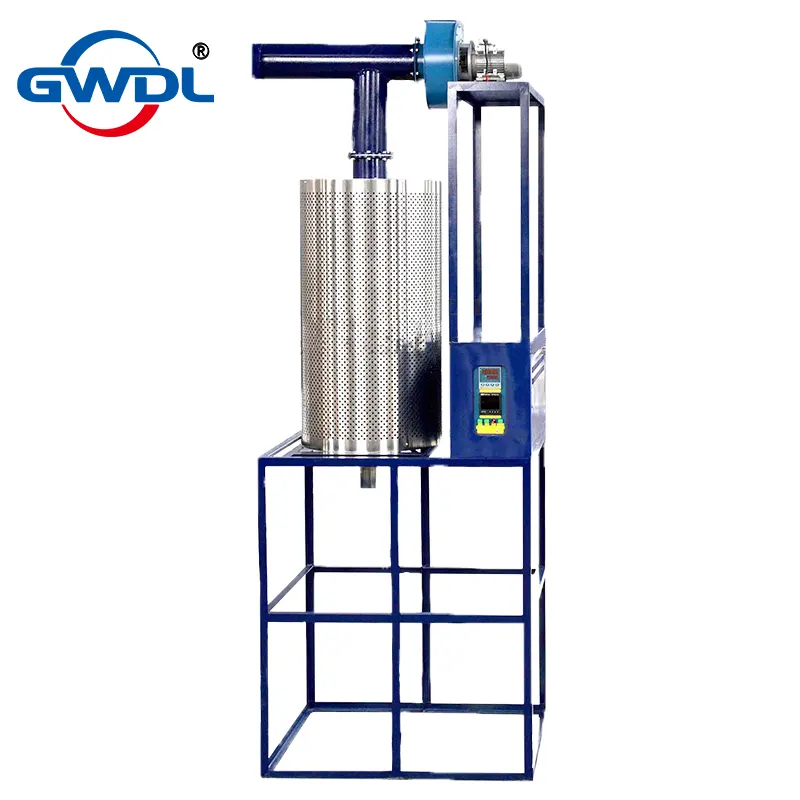

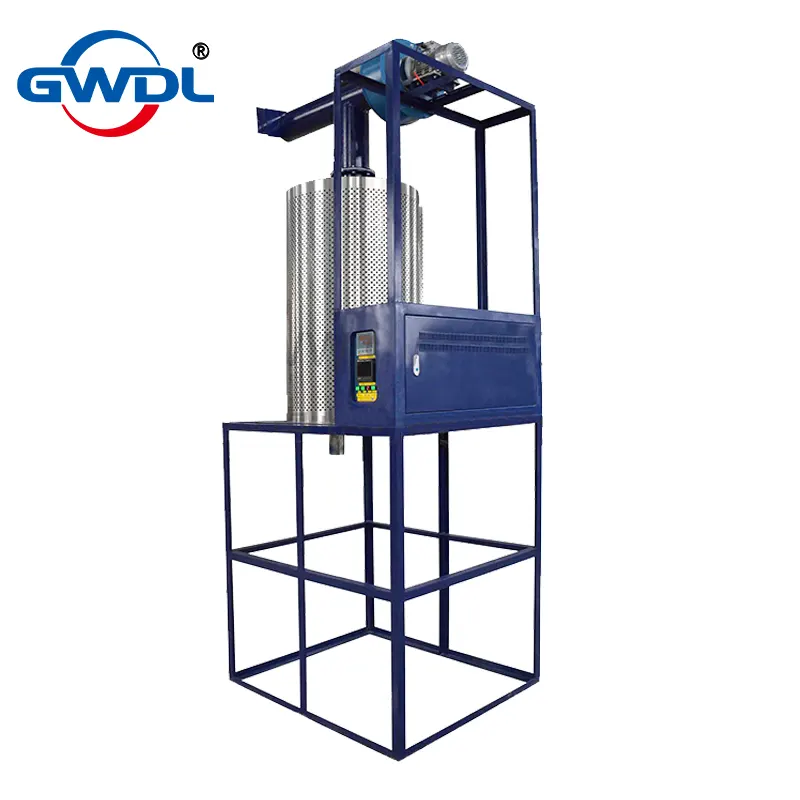

Small-Scale VOC Exhaust Gas Purification Furnace
Overview
The Small-Scale VOC Exhaust Gas Purification Furnace is designed for low air volume, high VOC concentration applications.
It is widely used in printing, coating, adhesive, and cleaning processes, as well as in laboratories and small-scale industrial production lines.
The system ensures high purification efficiency (≥95%) while maintaining compact structure, making it suitable for flexible integration with other furnaces such as debinding, drying, or sintering furnaces.
Key Features & Advantages
- 🔹 Compact & Flexible: Small footprint, easy to integrate with industrial furnaces and lab systems.
- 🔹 High Purification Efficiency: Three-chamber regenerative structure, VOC removal rate ≥99%，heat recovery efficiency ≥95%.
- 🔹 Self-Sustaining Operation: At suitable VOC concentrations, the system can maintain combustion without auxiliary fuel, lowering operating costs.
- 🔹 Stable & Safe: PID + SCR programmable temperature control, with ±3℃ accuracy.
- 🔹 Wide Adaptability: Suitable for alkanes, olefins, ketones, esters, ethers, aromatics, benzene compounds, and mixed VOC gases.
- 🔹 Dust & Particle Tolerance: Insensitive to small amounts of dust or particulates in waste gas.
- 🔹 Durable Design: Furnace shell with advanced machining and anti-corrosion treatment; ceramic regenerative beds allow long service life and easy maintenance.
Technical Specifications
- Max Temperature: 1000℃
- Normal Working Temp.: 750℃
- Exhaust Capacity: 80 m³/h
- Purification Efficiency: ≥95%
- Power Supply: 380V AC, 3-phase, 50Hz
- Total Power: 16 KW
- Pipeline Material: 304 stainless steel
- Thermocouple: K-type
- Temperature Accuracy: ±3℃
- Heating Control: Programmable PID + SCR
- Heating Rate: up to 50℃/min
Working Principle
Organic exhaust gases are heated above 760℃ to oxidize VOCs into CO₂ and H₂O.
The high-temperature gases pass through ceramic regenerative chambers, storing and reusing heat to preheat incoming exhaust, significantly reducing energy consumption.
With a multi-chamber design, the system alternates between heating, releasing, and purging phases, ensuring continuous and stable VOC removal efficiency >98%.
Applications
- Printing & Packaging Industry: Gravure, flexographic, screen, offset, and metal printing.
- Coating & Adhesives: Ink, glue, and film coating processes.
- Cleaning Processes: Industrial washing liquids, solvent-based cleaning.
- Small-Batch Production: Ideal for labs, R&D centers, and small-scale production requiring VOC purification.
