Operate via touchscreen for automated workflows or foot pedal switch for rapid manual response in emergencies. Ensures uninterrupted safety and convenience.

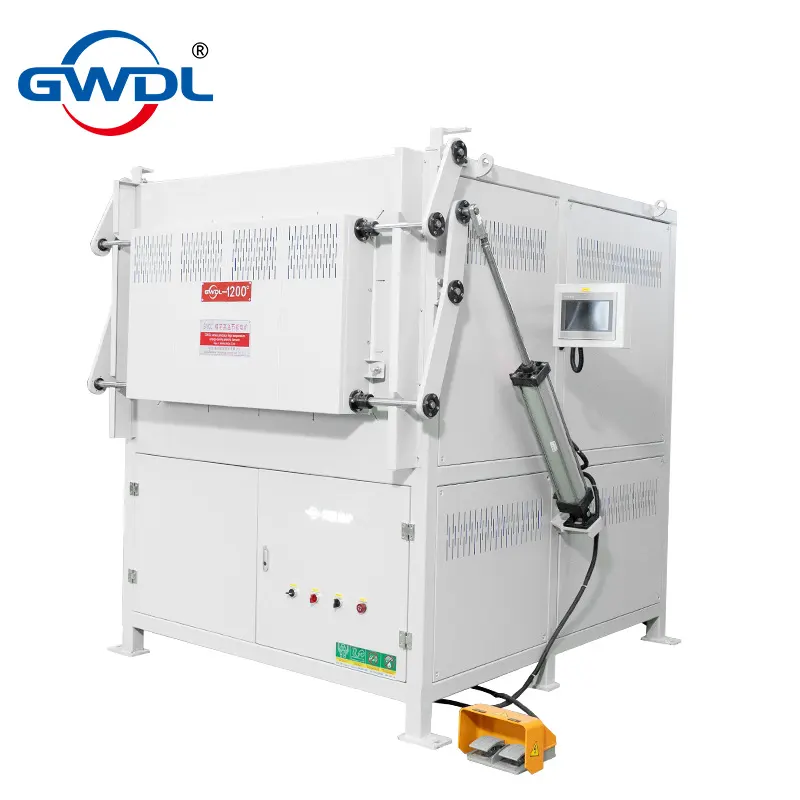

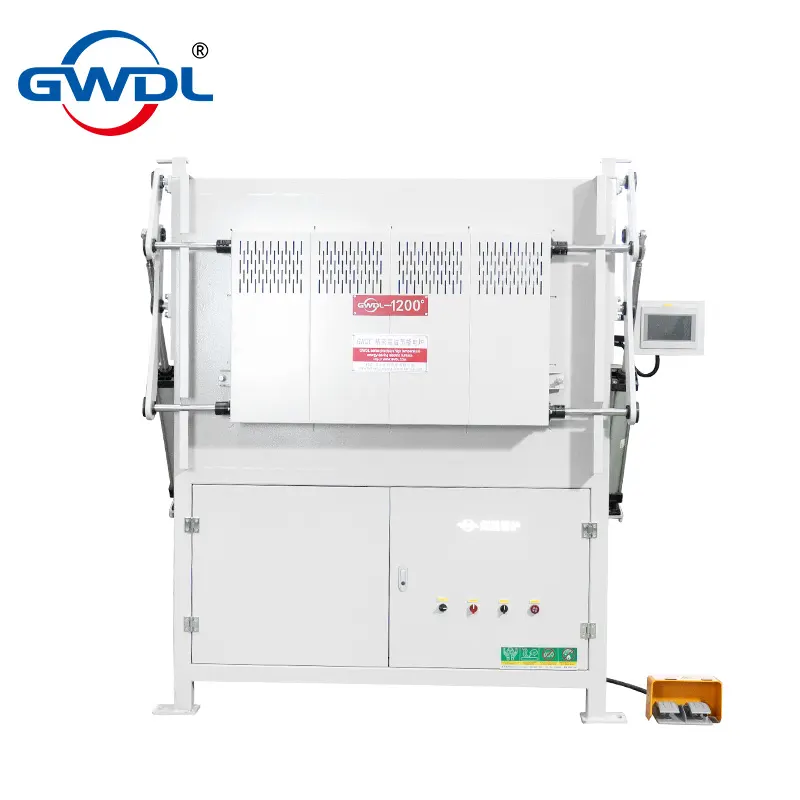

The GWDL-XLS Series Electric Top-Lift Muffle Furnace is a high-performance laboratory and industrial furnace that combines foot pedal control with touchscreen HMI operation, offering both convenience and safety redundancy. Designed for heat treatment processes requiring precision, safety, and flexibility, it supports advanced programmable heating profiles, reliable insulation, and robust safety mechanisms.
Key Features
Dual-Mode Door Control: Operate via touchscreen for automated workflows or foot pedal switch for rapid manual response in emergencies. Ensures uninterrupted safety and convenience.
Precision Temperature Control: ±1℃ accuracy, K-type thermocouple, with advanced PID and APID/MPT algorithms. Supports 50 programmable segments and multiple stored curves.
Versatile Heating Performance: Maximum heating rate of 40℃/min and minimum of 1℃/h, suitable for both fast sintering and slow annealing.

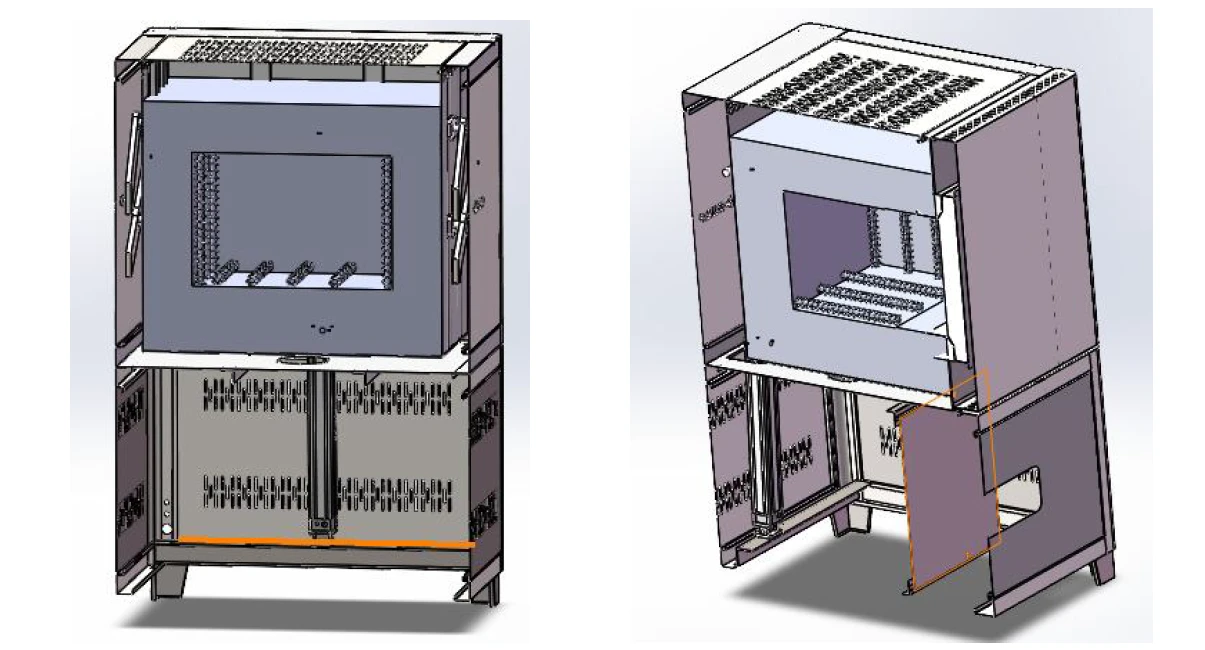

Efficient & Durable Structure: CNC-machined dual-shell air-cooled body with vacuum-formed alumina fiber insulation. Outer temperature ≤45℃, energy savings >60%.
Comprehensive Safety Protection: Dual-circuit design with over-temperature, over-current, phase loss, thermocouple fault, soft-start, and current feedback protections.
User-Friendly Interface: Real-time display of temperature, segment, remaining time, voltage, current, and power percentage. Imported LED buttons for long-term durability.
