1700℃ hot-press electric furnace (vacuum atmosphere) high-precision temperature control, adjustable hydraulic pressure, exportable data, special for scientific research

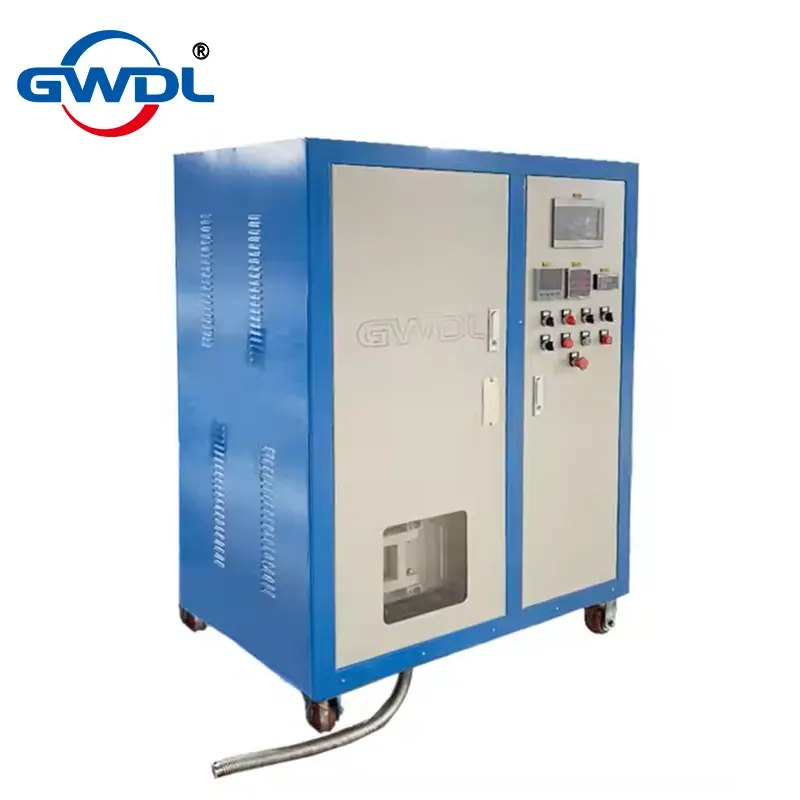

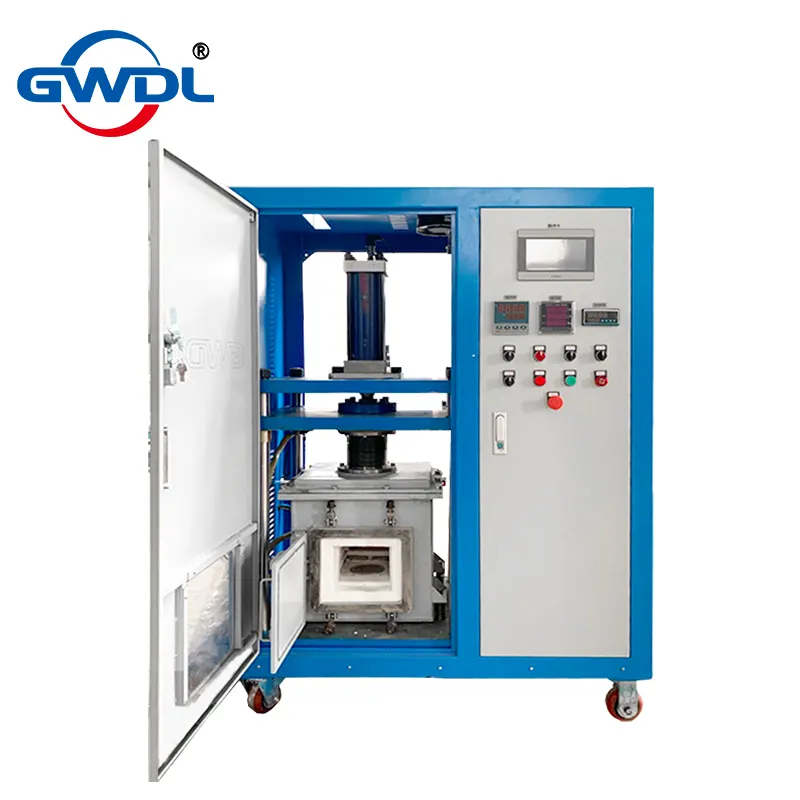

As shown in the figure, the automatic constant-pressure vacuum atmosphere hot-press furnace features a split design integrating the control system and the furnace chamber. The furnace lining is made of vacuum-formed high-purity alumina lightweight aggregate material.

It adopts molybdenum disilicide rods/silicon carbide rods as heating elements and is a special equipment developed for laboratories of colleges and universities, scientific research institutes, as well as industrial and mining enterprises to conduct sintering, melting, analysis and production of ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new material development, special materials, building materials, metals, non-metals and other compound materials.

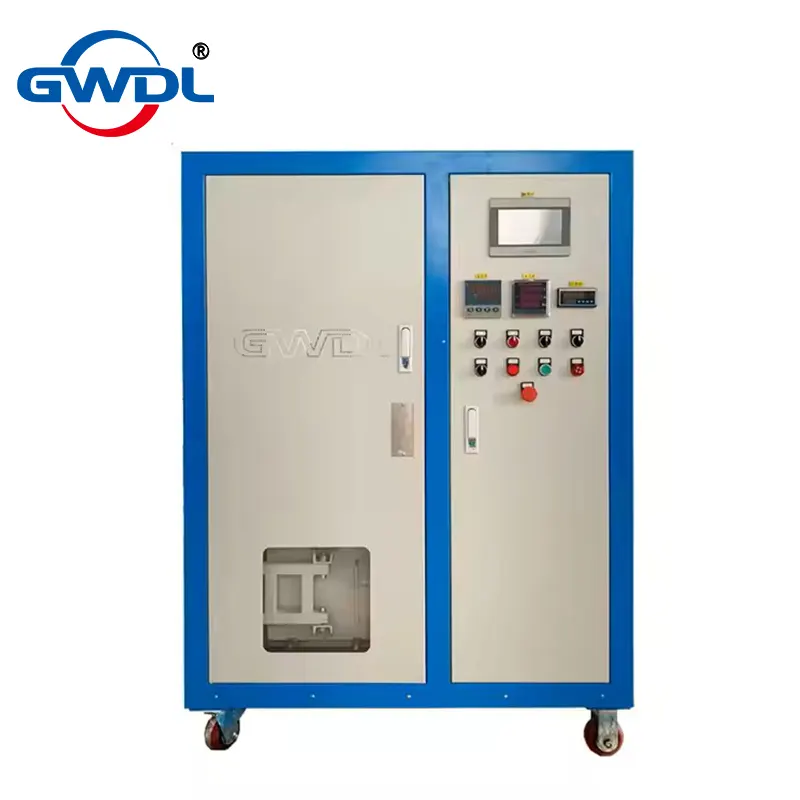

The control panel is equipped with an intelligent temperature regulator, control power switch, main heating start/stop buttons, voltage and current meters, computer interface, digital display pressure gauge, flow meter, vacuum gauge, valves, and a touch screen centralized control recorder, facilitating real-time observation of the working status of the system. This product uses reliable integrated circuits, ensuring a good working environment and strong anti-interference performance. The temperature of the furnace shell is ≤ 45℃ even at the maximum temperature, which greatly improves the working environment. It is controlled by a microcomputer program, with programmable curves, enabling automatic heating/cooling. The temperature control parameters and programs can be modified during operation, making it flexible, convenient and easy to operate.
Temperature control accuracy: ±1℃ without overshoot; constant temperature accuracy: ±1℃. The heating speed is fast, with the maximum heating rate ≤ 30℃/min.
All furnace chamber materials are made of vacuum-formed high-purity alumina lightweight materials, which can withstand high temperatures, have small heat storage, resist rapid heating and cooling, without cracking or slag falling, and have excellent thermal insulation performance. It has a reasonable structure with inner and outer double-layer furnace sleeves and air-cooled heat dissipation, which can greatly shorten the test cycle.

Temperature	1000℃	1300℃	1600℃	1700℃
Long-term Operating Temperature	1000℃	1300℃	1600℃	1700℃
Temperature Measuring Element	Thermocouple with K, measuring range 0-1320℃	Thermocouple with S, measuring range 0-1700℃	Thermocouple with B, measuring range 0-1820℃	Thermocouple with B, measuring range 0-1820℃
Heating Elements	Silicon carbide rods / electric furnace wires	Silicon carbide rods / molybdenum disilicide rods	Molybdenum disilicide rods	Molybdenum disilicide rods
Temperature Control Precision	±1℃ (integrated circuit control, no overshoot phenomenon)
Furnace Temperature Uniformity	±1℃ (depending on the size of the furnace chamber; multi-point control can be adopted for large furnace chambers to achieve better temperature uniformity)
Heating Rate	Freely adjustable, with a range of 1℃/h (slowest) to 20℃/min (fastest)
Furnace Body Structure	Electric furnace with double-layer furnace body structure
Pressure	0.5-150 tons (customizable according to customer requirements)
Pressure Regulation	Digital display automatic/manual adjustment, programmable curve. Precision ±1‰
Press	Electric precision hydraulic press
Pressure Display	Digital display, unit (N - Newton)
Pressure Holding / Constant Pressure	Equipped with imported solenoid valves, with excellent pressure holding performance, precision ±1‰
Pressure Flatness	Adopts a bottom adjustable mechanism to ensure the flatness of the pressure head and pressure seat
Pressure and Temperature Change Record	Digital storage and recording, and can export to spreadsheets
Control and Protection	Adopts integrated module control unit and PLC control with accurate control precision, designed with dual-loop control and protection, featuring overshoot, undershoot, thermocouple break, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft start protection
Water Cooling	The equipment saves water, equipped with high-temperature circulating water pump, circulating water tank, and water radiator; water-cooled parts include furnace top, furnace mouth, furnace door, and shell
Atmosphere	The electric furnace can be ventilated with hydrogen, nitrogen, argon, carbon monoxide, oxygen, etc.
Vacuum Degree	-0.1Mpa (can be customized to 1Pa, -1Pa, -0.01Pa, etc.)
Temperature Curve Setting	Adopts intelligent temperature controller with multiple regulation modes such as standard PID, artificial intelligence adjustment APID or MPT, featuring self-tuning and self-learning functions, excellent control characteristics without overshoot or undershoot, with 30-segment program control function, enabling arbitrary slope heating and cooling control, with programmable/operable commands such as jump (cycle), run, pause, and stop, and allowing program modification during operation; uses artificial intelligence adjustment algorithm with curve fitting function to achieve smooth curve control effect
Multiple Curve Input	30-segment (50 segments customizable) program control function: 30 (50) segments for one curve, 14 (28) segments each for two curves, 9 (15) segments each for three curves, 5 (9) segments each for five curves; multiple curves can be input simultaneously and called arbitrarily during use
Random Accessories	2 heating elements, 2 sets of rod tools, 1 pair of crucible tongs, 1 pair of high-temperature gloves, 1 DVD data disk
Customer Optional Accessories	1. Crucibles, saggars, corundum furnace 垫板 /silicon carbide 2. Computer control software and hardware 3. Touchscreen-controlled temperature controller 4. Additional exhaust port 5. Consumables: heating elements 6. Additional observation port

Specification parameter

Name	Specification Model	Furnace Chamber Size (mm) (Length × Width × Height)	Voltage (AC V)	Power (kw)	Weight (kg)
Vacuum Atmosphere Hot Press Furnace	GWL-1600VSF4-RYDZ/D200/300	Diameter 200 × 300	380	10	1500
	GWL-1600VSF4-RYDZ/D300/300	Diameter 300 × 300	380	15	1800
	GWL-1600VSF4-RYDZ/D300/500	Diameter 300 × 500	380	18	2700
	GWL-1600VSF4-RYDZ/D500/500	Diameter 500 × 500	380	35	4700
	GWL-1600VSF4-RYDZ/D500/800	Diameter 500 × 800	380	45	5600
	GWL-1600VSF4-RYDZ/D800/800	Diameter 800 × 800	380	85	98000
	GWL-1600VSF4-RYDZ/D800/1000	Diameter 800 × 1000	380	120	516000
