Tilting & rotating tube design for efficient powder processing Three-zone independent temperature control (±1℃ accuracy)

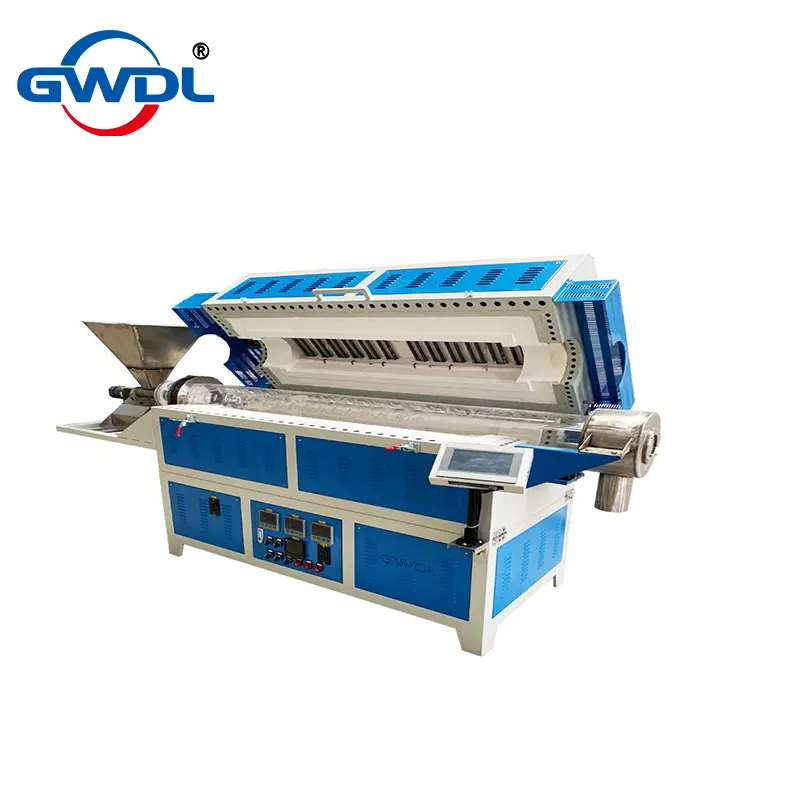

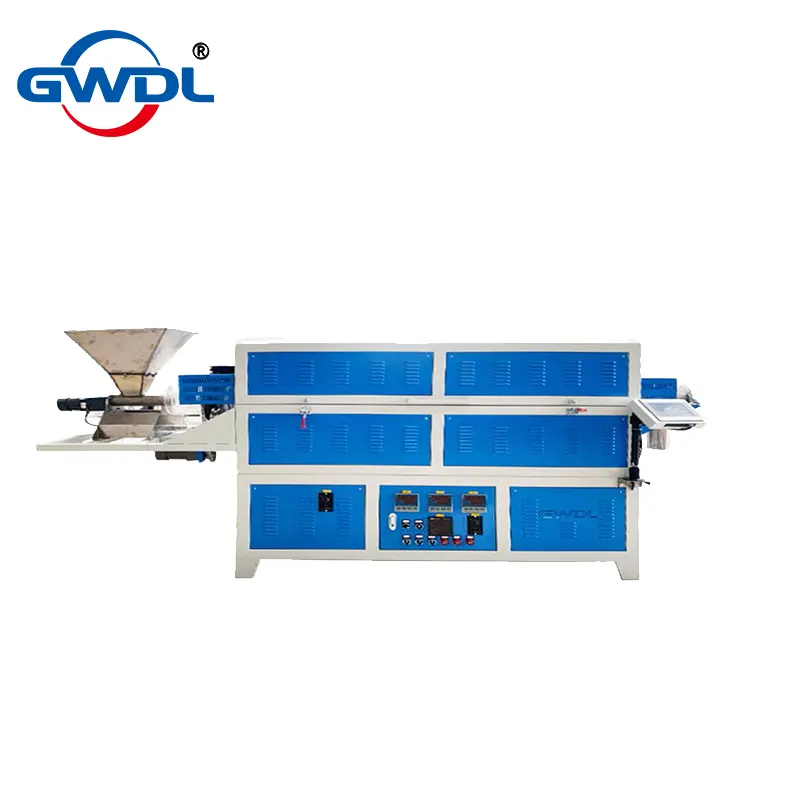

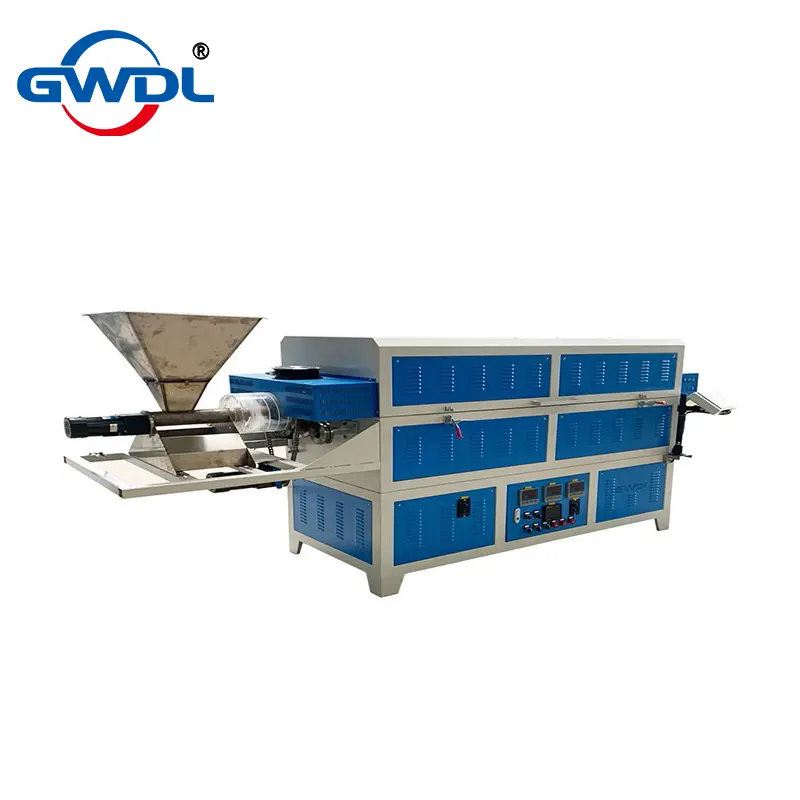

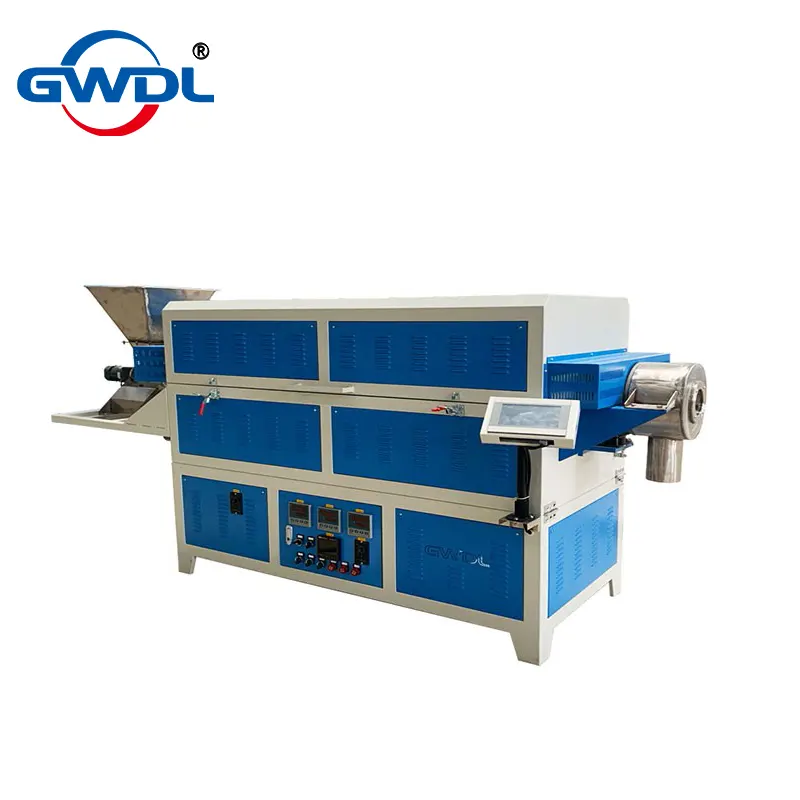

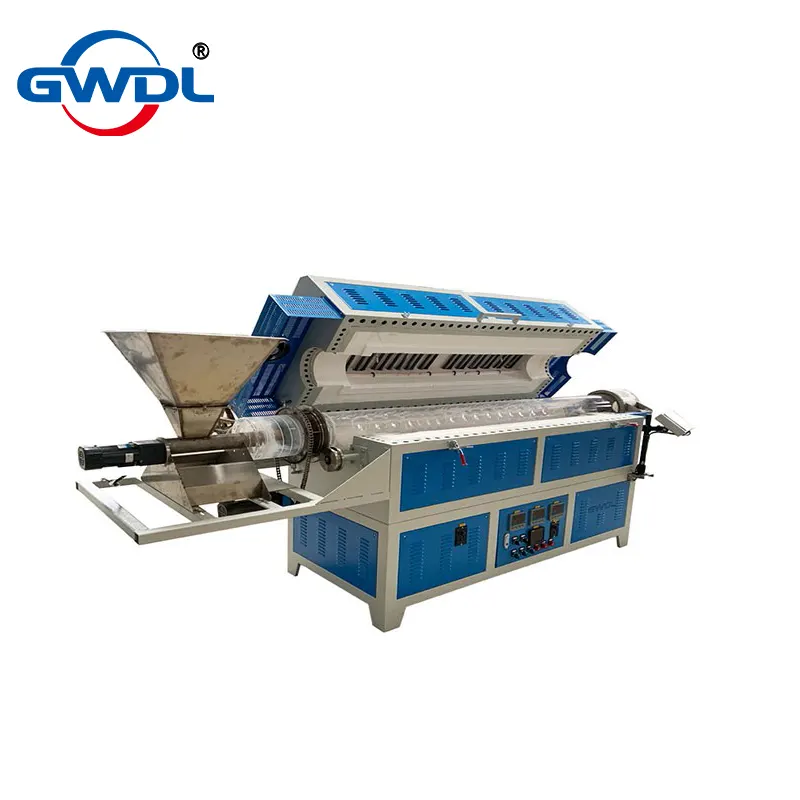

The three-zone rotary tube furnace with large-diameter quartz tube is designed for continuous calcination, sintering, and material development in ceramics, metallurgy, electronics, glass, chemicals, refractories, special materials, and construction materials.
The system integrates tilting and rotating functions, ensuring uniform heating and efficient material flow. With independent three-zone temperature control, the furnace provides precise thermal management for powders and bulk materials.
The furnace body adopts dual-layer air-cooled insulation with alumina ceramic fiber boards, keeping the outer shell temperature below 45℃ for safe operation. Advanced PID programmable control with computer interface allows fully automated operation, historical curve storage, and remote monitoring.
| Item | Specification |
|---|---|
| Max. temperature | 600℃ |
| Continuous working temp. | 550℃ |
| Power supply | AC 380V |
| Temperature accuracy | ±1℃ |
| Temperature uniformity | ±1℃ (multi-point control available) |
| Temperature zones | 3 independent zones (Left / Center / Right) |
| Tube material & size | 304 stainless steel, Ø100 × 2800 mm |
| Rotation speed | 1–10 r/min adjustable |
| Tilting angle | 1–15° |
| Heating rate | 1℃/h to 40℃/min adjustable |
| Heating element | High-temperature alloy resistance wire |
| Heating element position | Around the tube, horizontal alignment |
| Thermocouple | K-type (0–1350℃) |
| Program segments | 50 + 22 + 8 (multi-curve supported) |
| Refractory | High-purity alumina fiber board |
| Cooling structure | Double-layer air-cooled shell |
| Furnace body temperature | ≤45℃ |
| Computer connection | RS485 / RS232 / USB |
