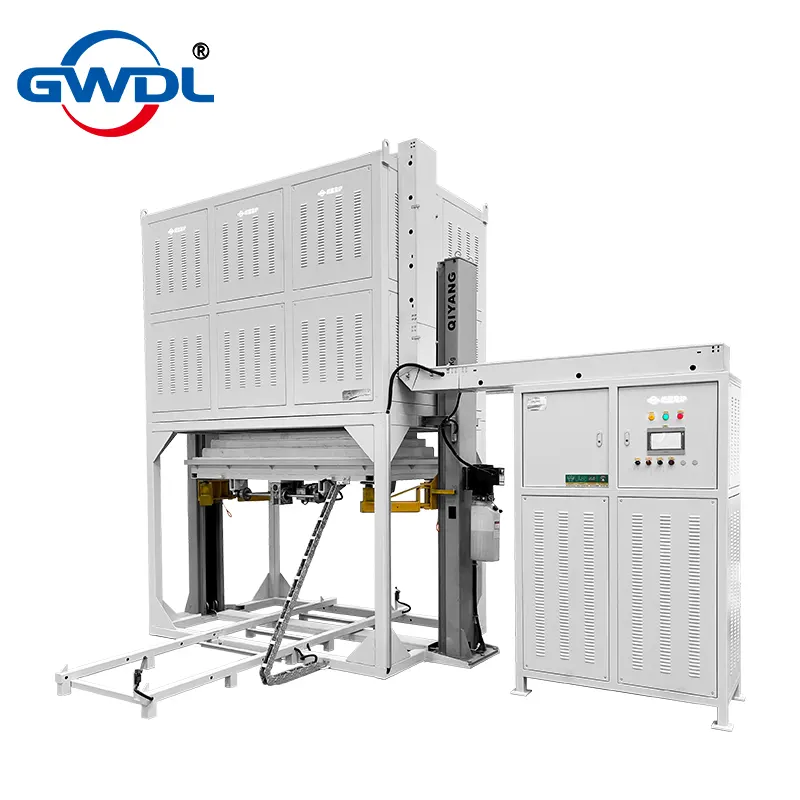

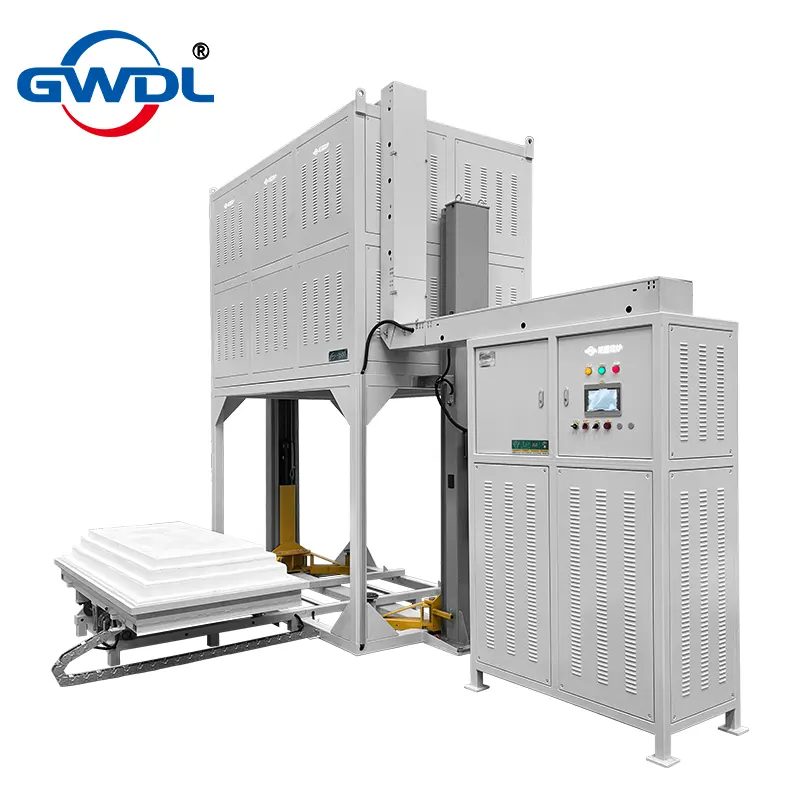

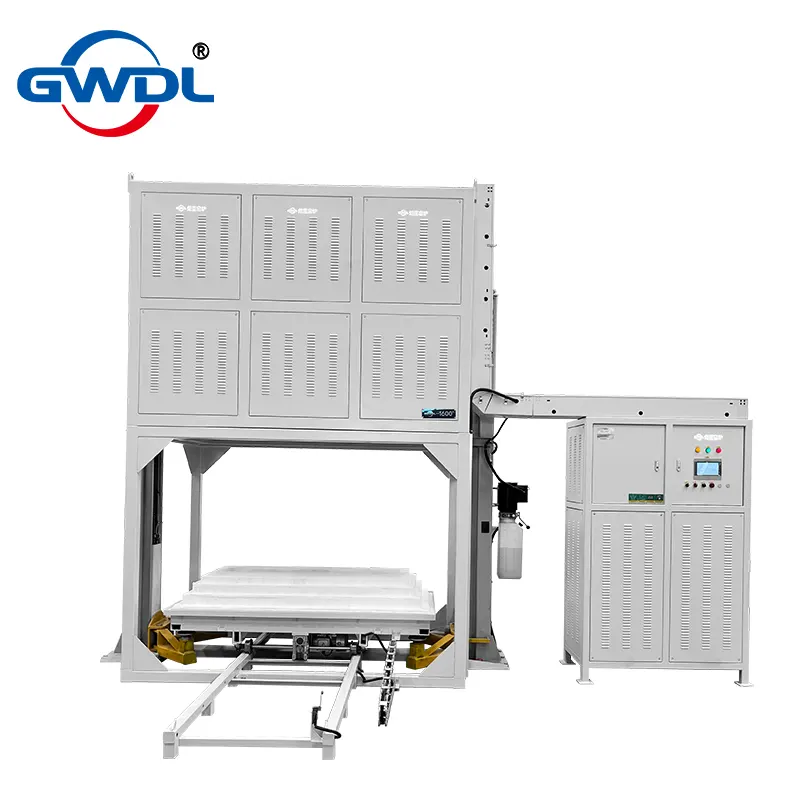

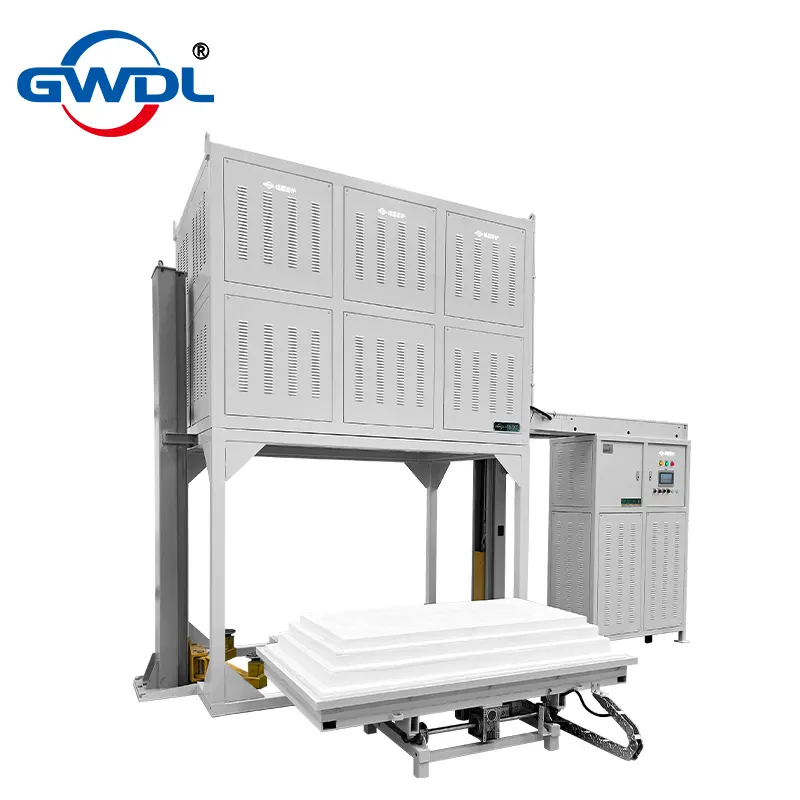

1600°C Fully Automatic Lifting Electric Furnace

Temperature Rating	1600°C
Model Number	GWL-1600SS
Loading Platforms	1 platform
Power Supply	380V AC, 3-phase 5-wire
Maximum Temperature	1650°C
Continuous Operating Temperature	1600°C
Temperature Control Range	80-1650°C
Temperature Sensor	Platinum-Rhodium B thermocouple (Range: 0-1820°C)
Heating Element Location	Sidewalls and bottom
Temperature Control Accuracy	±1°C (Integrated circuit control, no overshooting)
Temperature Uniformity	±1°C (Depends on chamber dimensions)
Heating Rate	Adjustable from 1°C/hour (minimum) to 40°C/minute (maximum)
Heating Elements	U-type 1800 silicon molybdenum rods (MoSi₂ based):Maximum surface temperature: 1860°C,Forms protective glass coating in oxidizing atmosphere,Excellent high-temperature oxidation resistance,Stable resistance over time (allows mixing old and new elements)
Furnace Body	CNC machined construction,Multi-process surface treatment (polishing, acid washing, phosphating), Two-tone powder coating with mirror finish,Export-quality with corrosion/heat resistance
Structure	Advanced double-layer air-cooled design: Optimized airflow channels,Prevents oxidation of conductive components, Maintains optimal working environment
Loading System	Separate loading platform design,Fully PLC-controlled movement (in/out/up/down), Touchscreen operation interface
Motion Control	Photoelectric isolation sensors,PLC signal processing,Touchscreen command interface
Horizontal Movement	Variable speed gearless motor drive, Lead screw and guide mechanism
Vertical Movement	Hydraulic lifting system
Sealing Mechanism	Stepped interlocking refractory design with angled surfaces for progressive sealing
Load Capacity	1000kg (customizable)
Refractory Materials	Lining: Imported vacuum-formed high-purity alumina fiber lightweight boards,High-wear areas (furnace bottom): High-purity lightweight alumina hollow sphere boards, Features: High temperature resistance, low heat storage, excellent thermal shock resistance, no cracking/shedding, superior insulation (80%+ energy savings vs conventional furnaces)
Insulation System	Triple-layer insulation:High-alumina wool,Alumina fiber board, Imported fiber board,80%+ energy efficiency improvement,Special-shaped high-purity alumina components at vulnerable furnace mouth areas
Surface Temperature	<45°C during continuous 20-day operation
Protection System	Integrated dual-loop protection: Overvoltage/overcurrent/overtemperature protection, Phase failure detection

Customer-optional Accessories

Crucibles, saggers, corundum furnace pads/silicon carbide pads (see details in electric furnace accessories)
Computer control software and hardware (click to view)
Touchscreen-controlled temperature controller (click to view)
Additional exhaust port
Consumables: heating elements
One extra loading platform (total two platforms, which can be used alternately to improve efficiency and save electricity)
Additional observation port

Notes

To avoid affecting the service life of the electric furnace, we recommend the maximum heating and cooling rate be 10-20℃/min (excessively fast heating will shorten the service life of heating elements).
This electric furnace does not have a vacuum-sealed structure, so flammable and explosive gases must not be introduced.
After the electric furnace is used for a period of time, tiny cracks may appear in the furnace chamber, which is a normal phenomenon and will not affect use. Meanwhile, it can be repaired with alumina coating.
It is not recommended to introduce corrosive gases. If strong corrosive gases such as S, Na need to be introduced, please inform us in advance, and we will perform special treatment on the furnace chamber.
Do not let high-temperature solution leak onto the furnace bottom. To avoid this, a pad or alumina powder can be used for isolation.
The instrument should be placed in a well-ventilated and dry place.
Packing List
1 electric furnace, 2 heating elements, 2 sets of rod tools, 1 pair of crucible tongs, 1 pair of high-temperature gloves, 1 instruction manual, 1 certificate of conformity, 1 acceptance report (factory inspection report), 1 sales delivery note.
