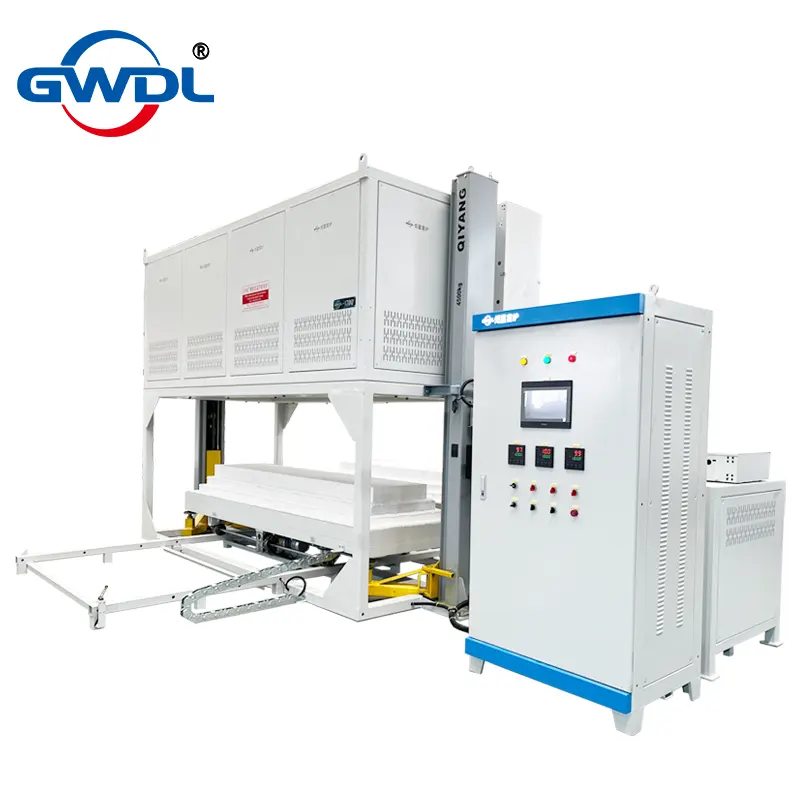

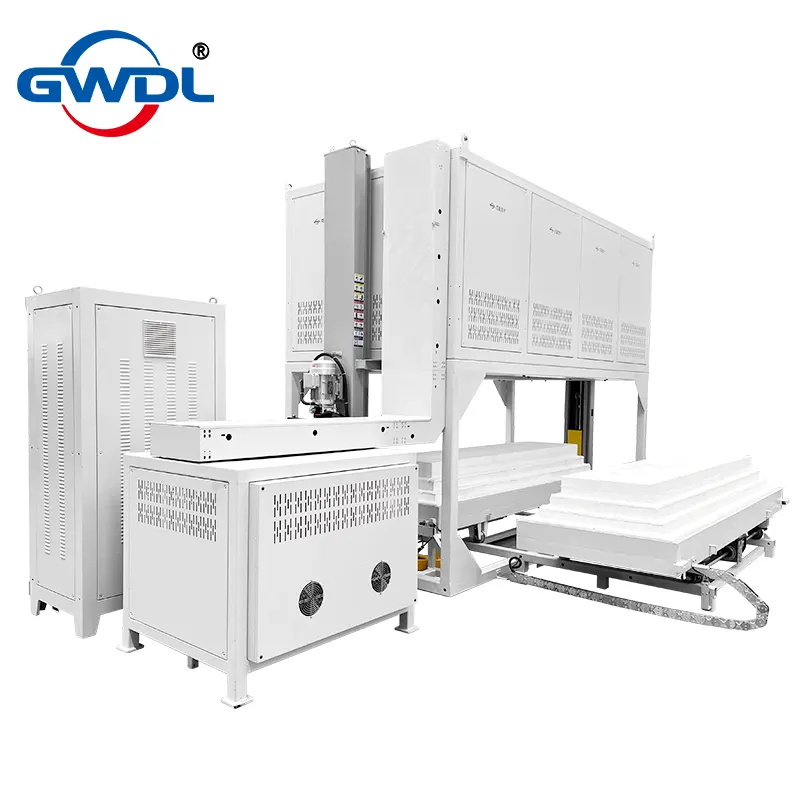

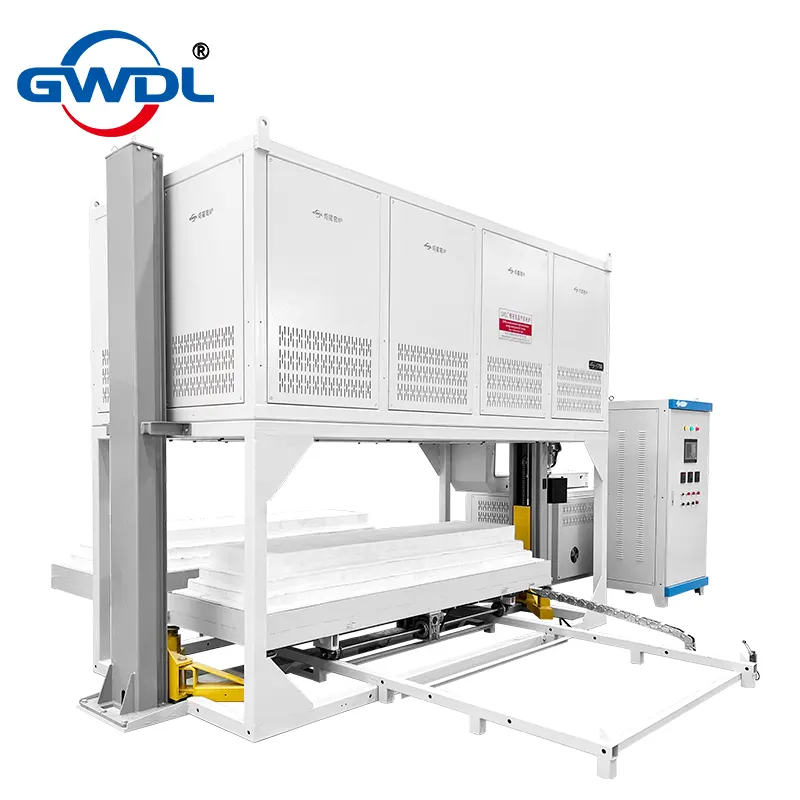

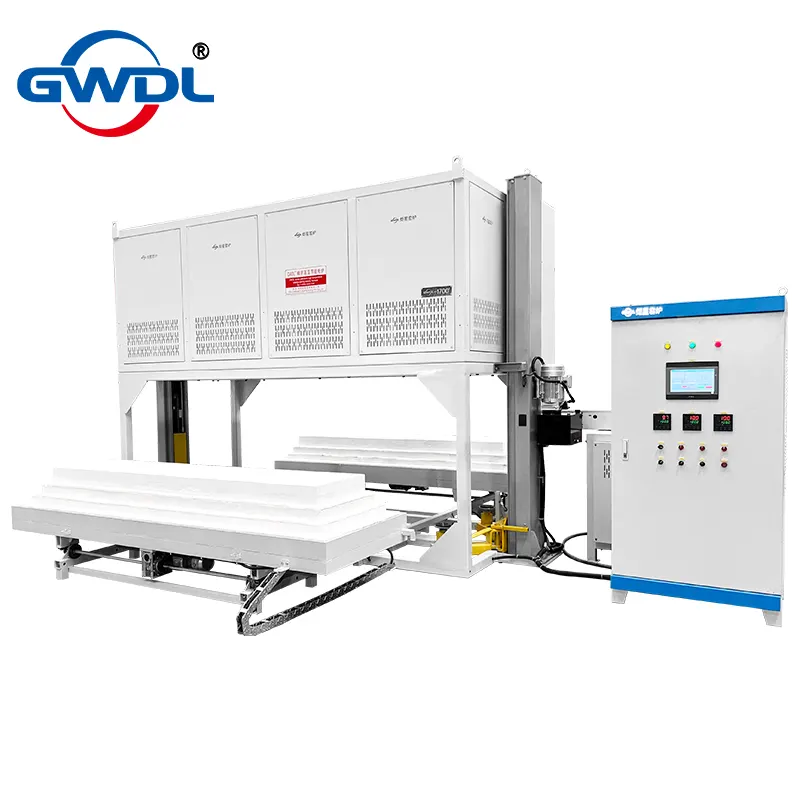

1700℃ Dual-Platform Lifting Industrial Furnace

Product Overview

1700℃ Dual-Platform Lifting Industrial Furnace is designed for high-capacity, continuous industrial production. Featuring two independent loading platforms with hydraulic lifting and electric in/out operation, the furnace allows one platform to be heated inside while the other is loaded, cooled, or unloaded outside, doubling production efficiency.

Core Features & Advantages:

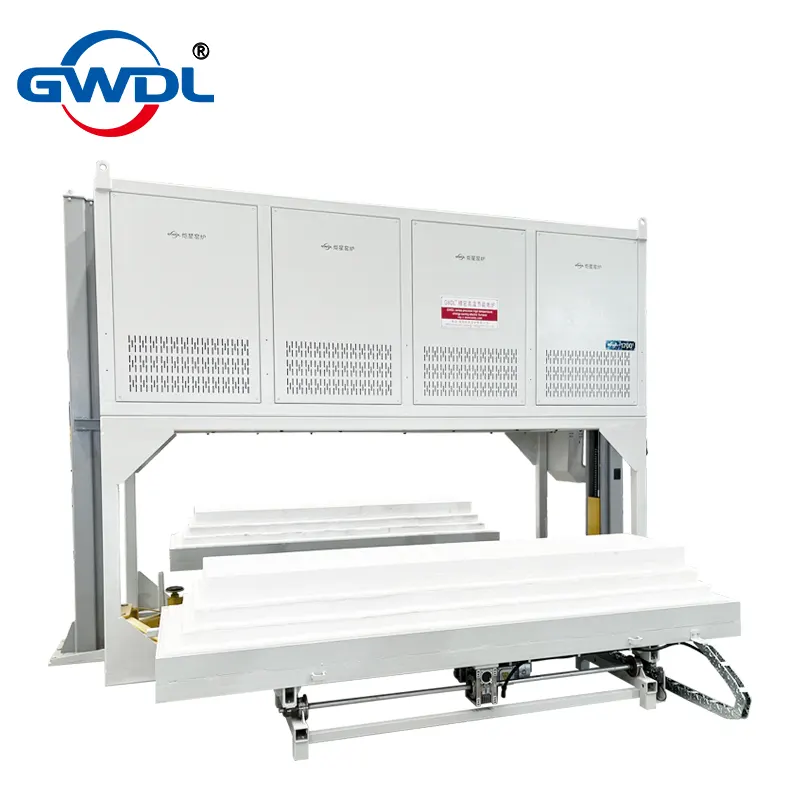

1. Dual-Platform Lifting Design
   • High Efficiency & Continuity: Continuous operation possible; one platform in the furnace while the other is prepared outside.
   • High Load Capacity: Each platform measures 2500×550×650mm, capable of carrying heavy workpieces or large batch materials.
   • Smooth Operation: Hydraulic lifting ensures precise, stable, and safe movement of heavy platforms.
2. Triple-Zone Temperature & Heating System
   • Precision Heating: Three independent temperature zones (left, middle, right) with separate transformers (30KW + 80KW + 30KW).
   • 48 SiMo Heating Rods: Distributed around the furnace for uniform heat.
   • Excellent Temperature Uniformity: ±5℃ across 2.5m long furnace chamber.
   • Maintenance Friendly: Failure in one zone does not affect other zones.
3. Advanced Insulation System
   • Multi-Layer Refractory: Five-layer composite insulation with 1800-type microporous ceramic foam, alumina fiber boards, and zirconia fiber cotton.
   • Step-Type Sealing: Furnace mouth and platforms have four-layer cross-step refractory bricks.
   • Energy Efficiency: Minimized heat loss; external shell temperature ≤ ambient +35℃ during continuous operation.
4. Industrial Control System & Safety Protection
   • 7-inch Touchscreen: Displays voltage, current, power, temperature curves, and real-time parameters.
   • Closed-Loop SCR Control: Constant voltage, current, and power; soft start protects heating elements.
   • Comprehensive Safety: Over-temp, over-current, over-voltage, phase loss, sensor fault, and more.
5. Exhaust & Corrosion-Resistant Design
   • Efficient Gas Removal: Seven 60mm alumina exhaust pipes on top ensure timely removal of gases.
   • High-Temperature & Corrosion Resistance: Alumina pipes withstand high temperature and moderate chemical corrosion.

Technical Specifications

Operation Principle

1. Loading & Heating: One platform is loaded and inserted into the furnace chamber; the other platform can be prepared or unloaded outside.
2. Lifting & Precise Control: Hydraulic lift raises heavy platforms smoothly while multi-zone heating ensures uniform temperature.
3. Exhaust & Safety: Alumina exhaust pipes remove gases; integrated control and safety modules ensure stable operation.
4. Continuous Operation: While one platform cools outside, another undergoes heating, maximizing production efficiency.
