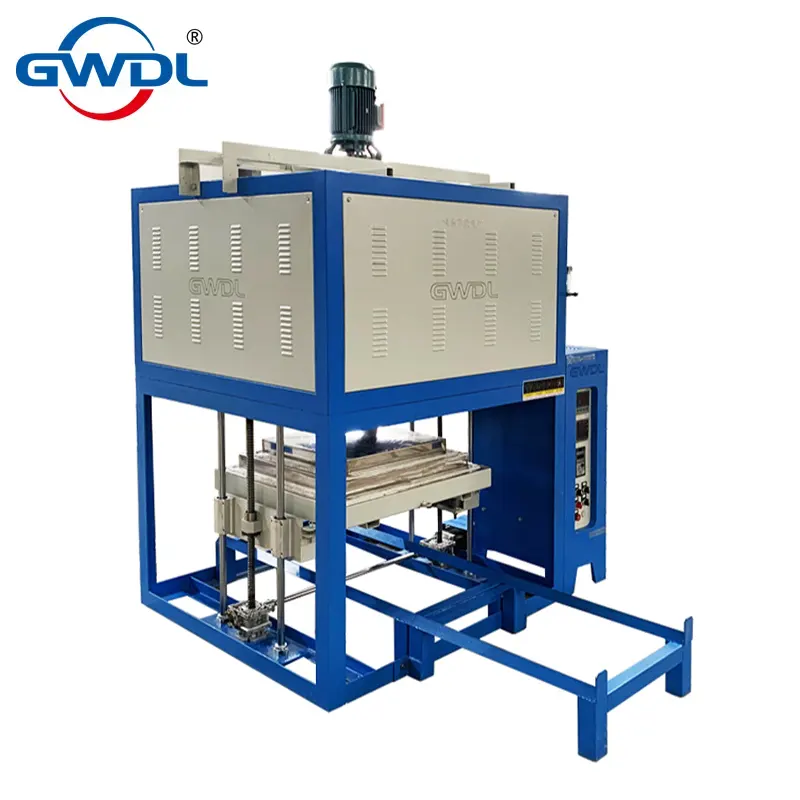

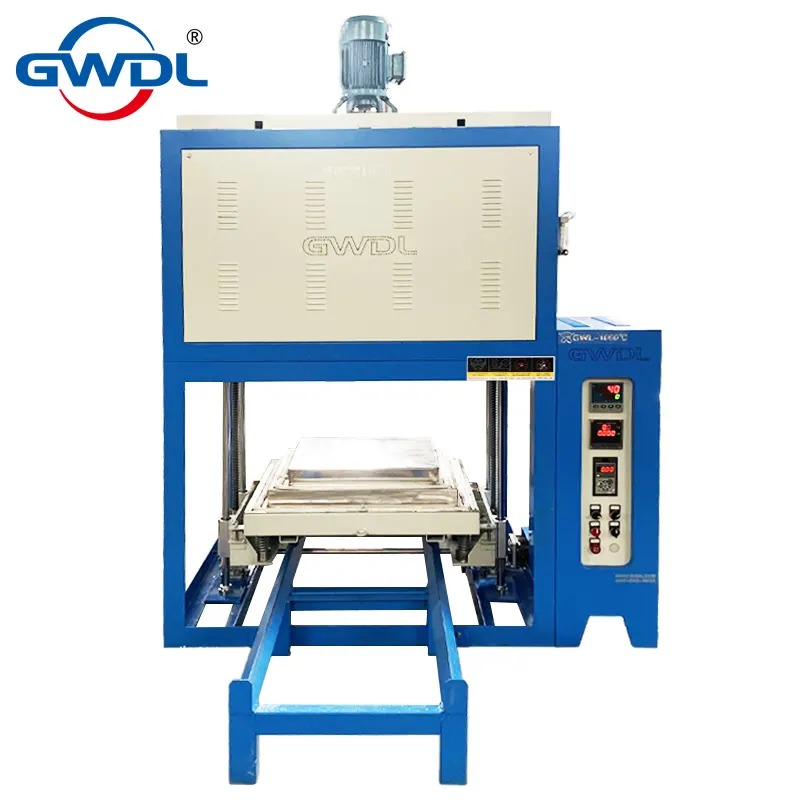

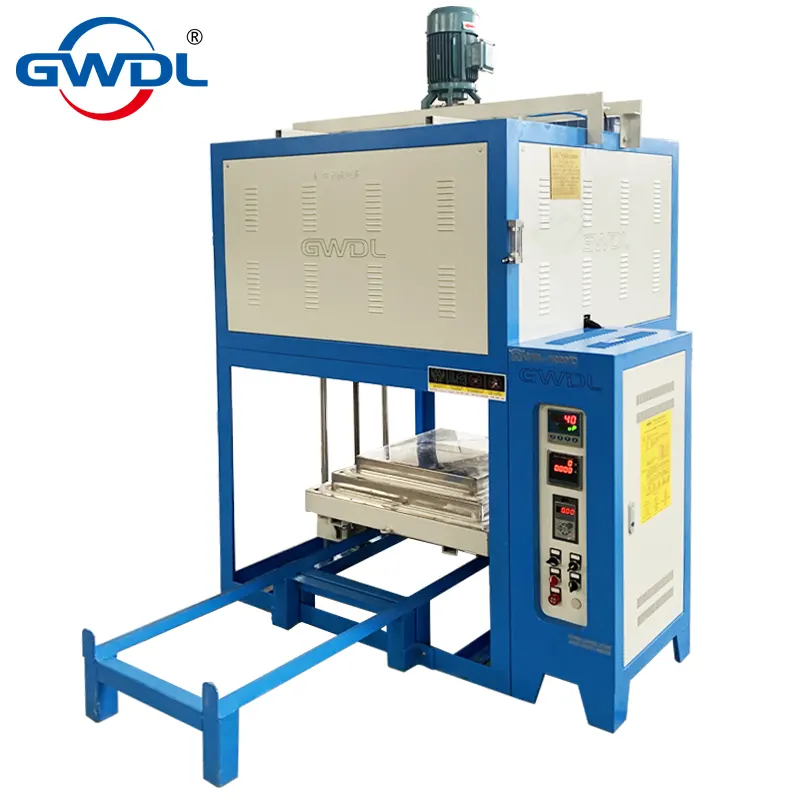

Clean and dust-free atmosphere lifting furnace: adjustable temperature up to 800℃, with a uniformity of ±1℃. It is equipped with 30-segment program temperature control, forced air circulation for energy saving, and over-temperature power-off protection, making it suitable for precision heating.
| Product Name | Atmosphere Dust-Free Heating Furnace |
| Model | GWL-800sq |
| Inner Chamber Size | 600mm (L) × 600mm (W) × 400mm (H) |
| Product Placement Space | 400mm (L) × 400mm (W) × 200mm (H) |
| Overall Dimension (Approx.) | 1150mm (L) × 1150mm (W) × 2300mm (H) |
| Temperature Range | Adjustable from room temperature to +800℃ |
| Base Frame | 1 piece of 310 stainless steel base frame |
| Temperature Fluctuation | ≤±1℃ |
| Temperature Uniformity | ≤±3℃ (no-load) |
| Heating Rate | ≤10℃/min (no-load) |
| Shell Temperature | Temperature rise does not exceed ambient temperature +30℃, except around the door |
| Circulating Air Mode | Forced air circulation in multiple directions: up, down, left, and right |
| Power Supply | Three-phase five-wire system, 380V, 50HZ |
| Total Power | 12KW |
| Shell Material | Made of 2.0mm thick Q235 cold-rolled steel plate by bending and welding |
| Surface Treatment | 1. Surface grinding, polishing, and phosphating (to enhance corrosion resistance of metal and paint adhesion); 2. High-temperature spray coating (large ripple type) for rust and corrosion resistance; 3. Color: 7035 |

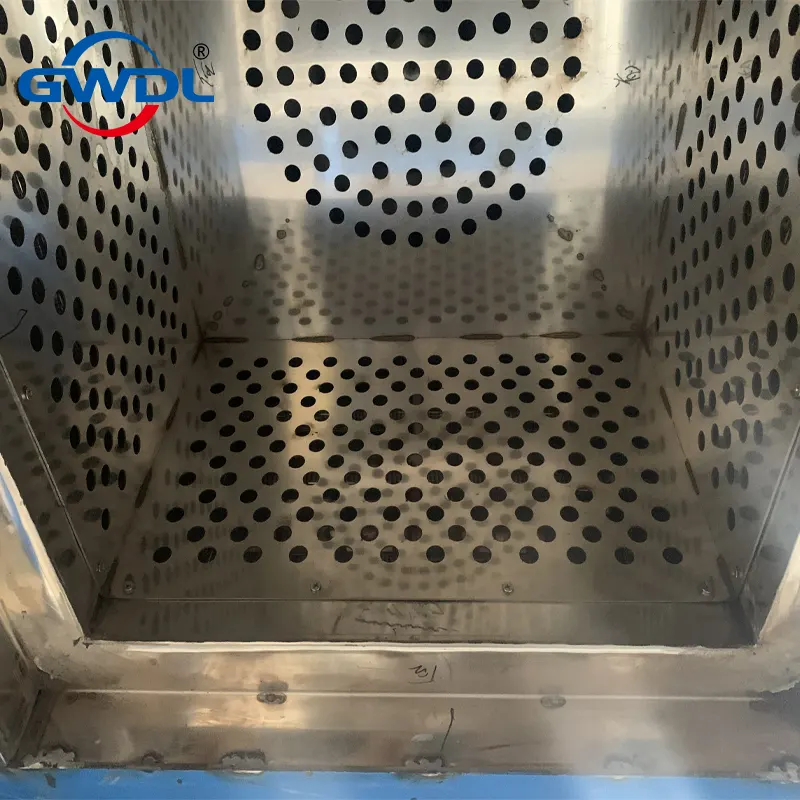

| Inner Chamber Material | Made of SUS310S stainless steel plate, ensuring a clean, dust-free, rust-resistant, and easy-to-clean inner chamber; the 四周 of the inner chamber is reinforced with stainless steel square tubes |
| Sealing Material | Sealing strips are made of high-temperature resistant ceramic rope, which is heat-resistant and non-deformable; the door and inner chamber adopt a double-layer sealing structure to enhance sealing effect |
| Feet | 4 pcs of 100mm feet welded at the bottom of the cabinet for easy forklift movement |
| Air Circulation Motor | 1 unit of 0.75KW air circulation motor |
| Wind Wheel | 10.5-inch stainless steel centrifugal wind wheel |
| Heater | Quartz glass with resistance wire (material: Ocr27AL17M02), distributed on both sides of the electric furnace |
| Air Heating Mode | Air enters the heating tube air groove through the air inlet, circulates inside the electric furnace after heating, and exhaust gas is discharged through the exhaust outlet |
| Temperature Controller | Adopts Xiamen Yudian 30-segment program intelligent digital display instrument, which can set program heating and cooling, with built-in alarm function and PID automatic tuning calculation output for precise control |
| Over-Temperature Protection Controller | Intelligent digital display temperature controller; automatically cuts off the heating power when the temperature exceeds the set value |
| Number of Temperature Zones | 1 zone, K-type thermocouple |
| Automatic Constant Temperature | 1. The temperature controller automatically calculates the input power through PID according to the user-set temperature; 2. The closer to the set temperature, the smaller the output power, achieving constant temperature control and energy saving |
| Over-Temperature Alarm | Automatically cuts off the heating power when the actual detected temperature exceeds the set value of the over-temperature protection controller, providing double protection |
| Ambient Temperature | -5℃+40℃ |
| Relative Humidity | ≤85%HR |
| Air Inlet | Internally coiled with multi-point air intake |
| Name | Function Introduction | Function Code | |
| Temperature Controller | Standard 50-segment heating curve, optional imported controller (B) | Choose one out of two. | AB |
| Touch Screen | Chinese menu, multi-curve storage, historical data recording (7-inch) | Choose one out of two. | C |
| IoT Interface | RS485 communication for real-time data access (start/pause/stop/curves/timing) | D | |
| Computer Control System | PC software for full furnace control (start/stop/curve setting/data logging). Supports data recording (1s-1h intervals), parameter adjustment, and long-term storage. | E | |
| PLC Control | Siemens PLC (controls heating curves, atmosphere, flow rates, power). Open ports for upstream/downstream equipment integration. | F | |
| Observation Window | High-temperature quartz glass window on furnace door | H | |
| Gas Inlet | Float flow meter + manual valve (selectable flow range/gas type) | Choose one out of two. | K |
| Digital mass flow controller (selectable flow range/gas type) | M | ||
| Exhaust | Manual exhaust valve | Choose one out of two. | T |
| Automatic electric valve (program-controlled by heating curve segments) | P | ||
| Full Auto Gas Control | PLC-controlled electric valves synchronized with heating curves (requires touch screen option) | Y | |
| Casters | 2 swivel + 2 fixed wheels | R | |
| Rapid Cooling | Program-controlled cooling with inverter + centrifugal fan | N | |
| Multi-zone Control | +10% cost per additional heating zone, +20% for independent control | X | |
| Stirring Fan | Metal fan (<1050°C):-4000; Inverter: -1500-2000; PLC-auto control: -4000 | Z | |
| Separate Control Cabinet | Independent cabinet (1600×600×400mm) with 5m control cables | Q | |
| Heat-storage Base | 50mm recessed hollow base with multi-point support (+5% cost) | W | |
| Exhaust Treatment | VOC treatment furnace (40m³/h or 80m³/h options) | V | |
| Corrosion-resistant Chamber | Acid/alkali/HF-resistant materials | G | |
| Heating Element Protection | Protective features against powder contamination and vapor corrosion | L | |
| Clean Chamber | Ceramic/glass/metal lining to prevent dust/vapor contamination | J | |
