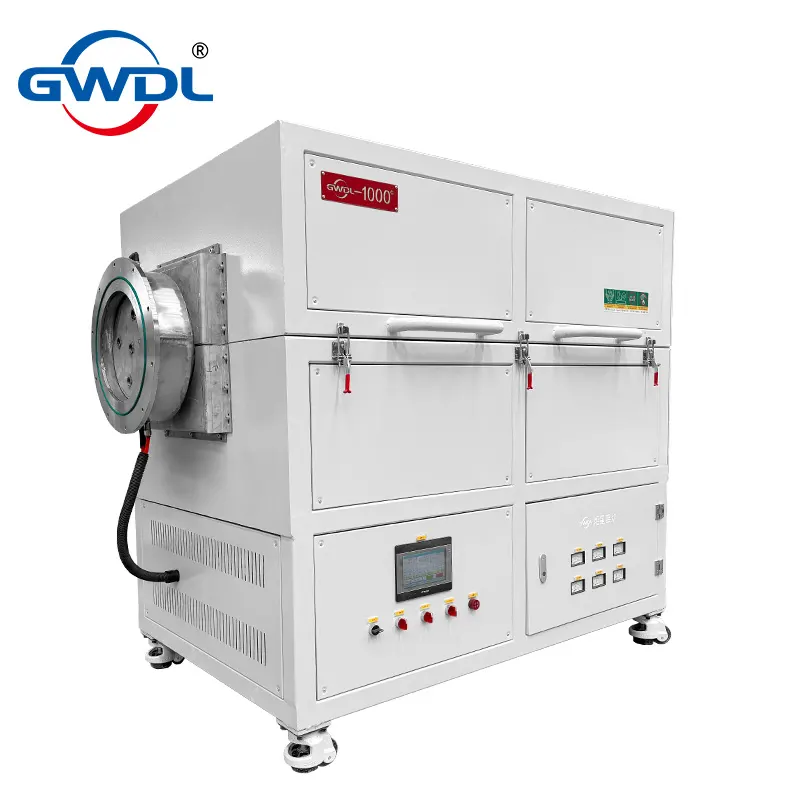

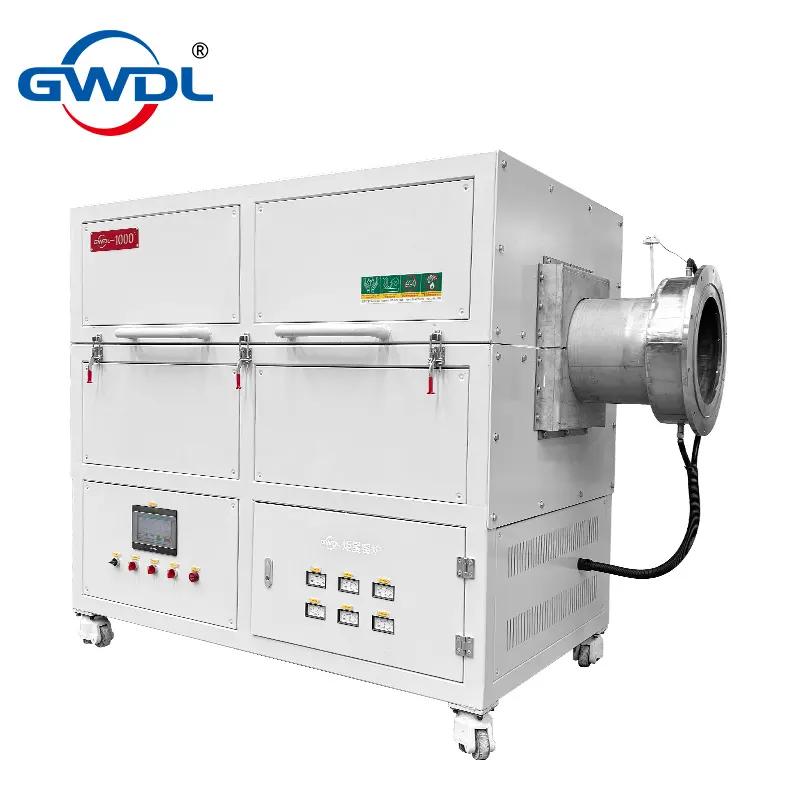

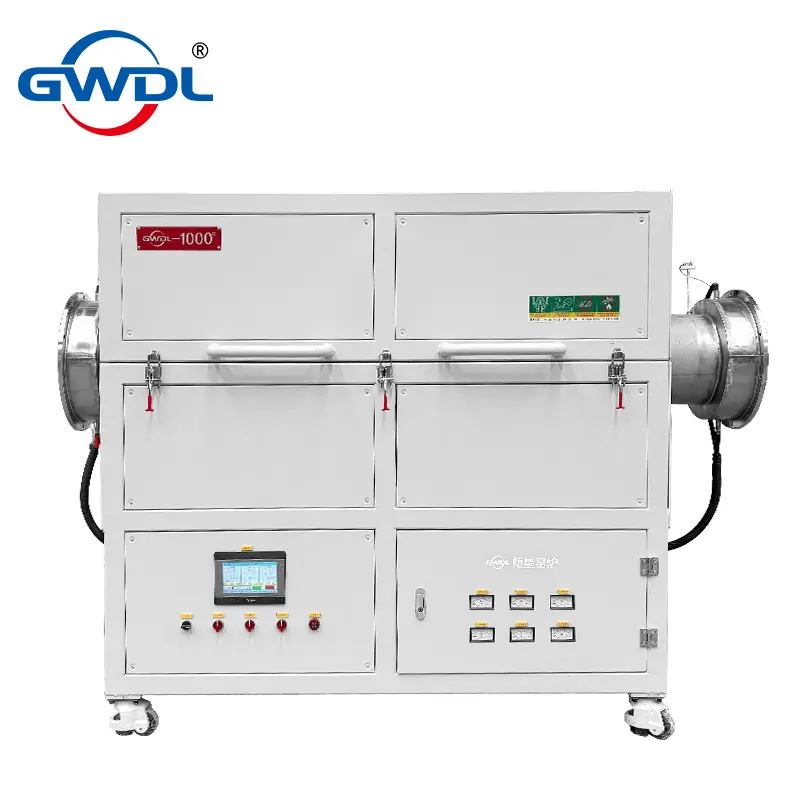

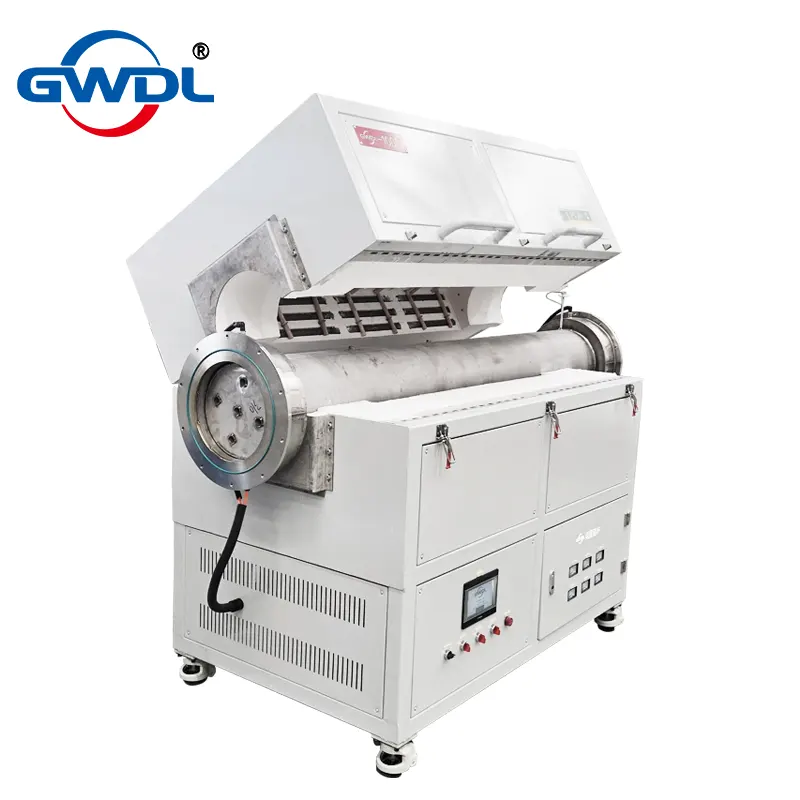

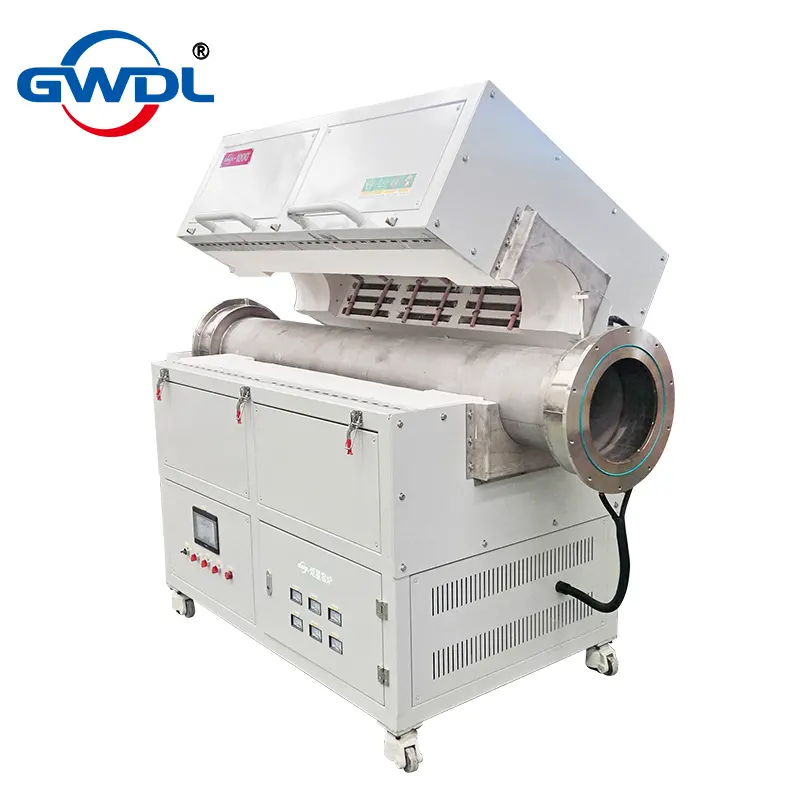

1000℃ Three-Zone Tube Furnace with 310S Stainless Steel Tube

Product Description

The three-zone tube furnace (1000℃, 310S stainless steel tube) is designed for precise heat treatment and thermal processing of materials in laboratories and industrial R&D.
It features three independent heating zones for accurate temperature distribution, water-cooled flanges, and high thermal uniformity, making it ideal for annealing, sintering, and atmosphere-controlled experiments.

With ±1℃ temperature accuracy, ±3℃ uniformity, and a programmable 30-segment controller, it ensures reliable operation under vacuum (-0.1 MPa) or controlled gas atmospheres.
Suitable for ceramics, metallurgy, materials science, powders, and high-performance alloys.

Technical Parameters

Item	Specification
Max. Temperature	1000℃
Working Voltage	AC 380V
Temperature Accuracy	±1℃
Temperature Uniformity	±3℃ (depending on heating chamber size)
Tube Size	Φ300mm × 1200mm heating zone (constant zone: 900mm)
Tube Length	2200mm
Tube Material	310S stainless steel, 5mm thick
Tube Ends	Sealed with water-cooled flanges, with thermal plugs (no flange covers)
Vacuum Level	-0.1 MPa
Temperature Zones	3 independent heating zones
Thermocouples	K-type, 4 pcs (3 inside, 1 at outlet), range 0–1200℃
Heating Element	High-temperature resistance wire
Heating Rate	1℃/h – 20℃/min (adjustable)
Cooling Structure	Double-layer shell, water-cooled ends, air-cooled body
Insulation	Multi-layer: 1200℃ alumina-silicate fiber, 1400℃ alumina fiber, 1700℃ polycrystalline alumina
Controller	Intelligent PID, 30 programmable segments, self-tuning, data recording
Protection	Dual-circuit safety (over-temp, over-voltage, over-current, power failure, thermocouple error, etc.)
Furnace Shell Temp	≤45℃
Accessories	Heating elements ×2, crucible tongs, gloves, tube crucible, sealing rings
Warranty	1 year (excluding heating elements and tube; free replacement if natural failure within 3 months)

Product Features

Three-zone heating for precise thermal distribution and ±3℃ uniformity.
310S stainless steel tube (Φ300×2200mm) with water-cooled ends for durability and stability.
Programmable PID control with 30-segment curves, adjustable heating/cooling rates.
Vacuum & atmosphere compatible (up to -0.1 MPa, supports N₂, Ar, H₂).
High safety protection with dual circuits, current/voltage/temp monitoring.
Multi-layer insulation reduces energy loss by over 80% compared with traditional designs.
Easy operation with intelligent temperature control and real-time data monitoring.
