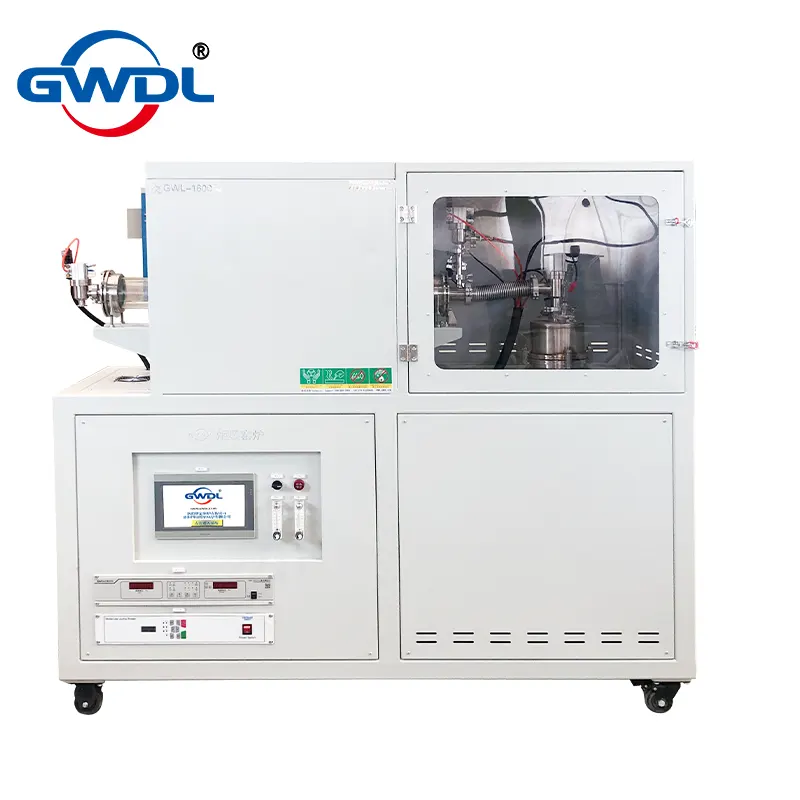

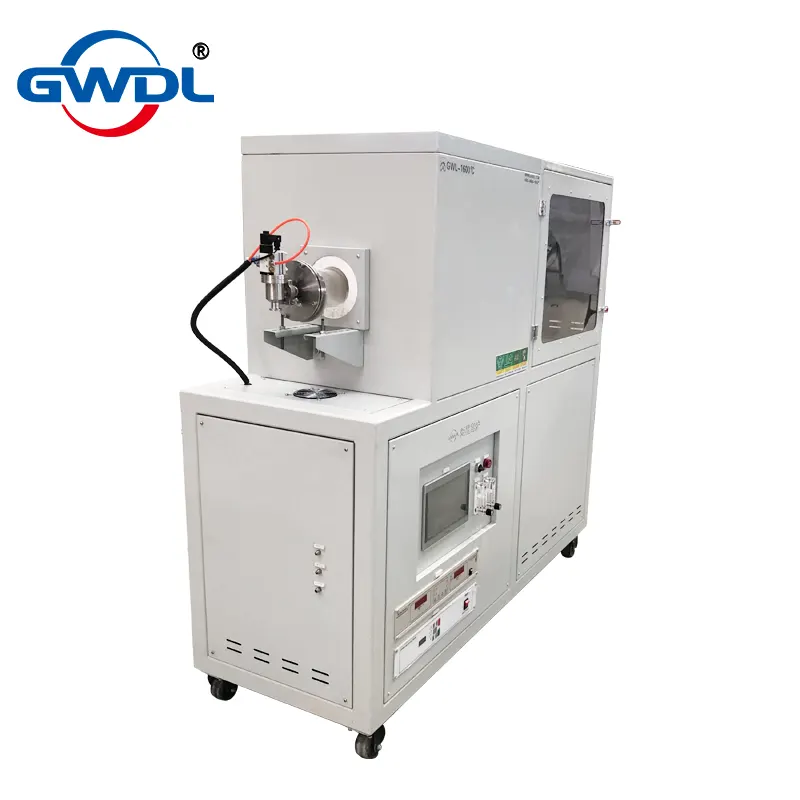

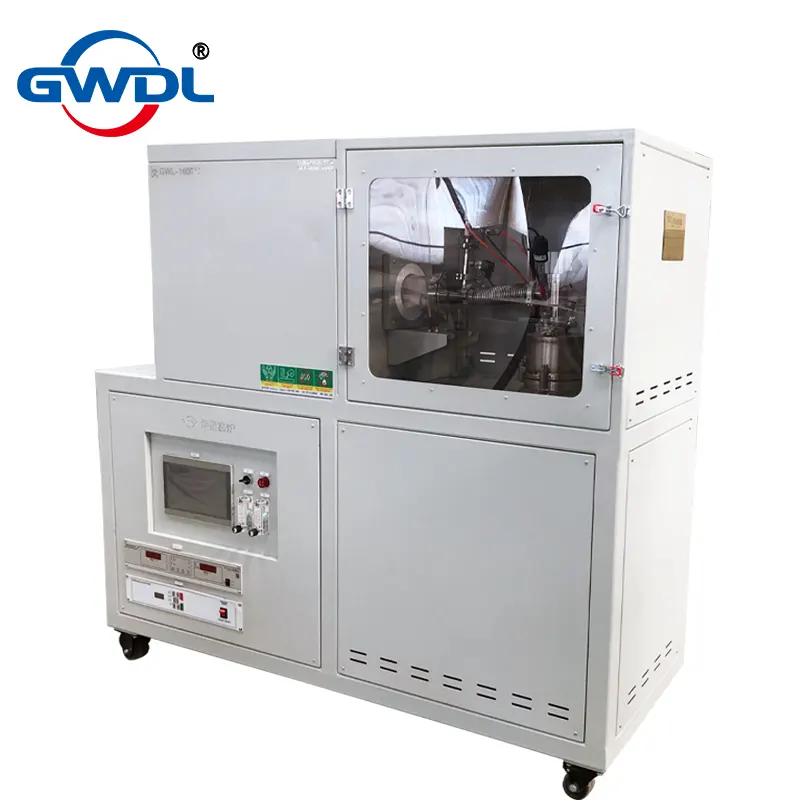

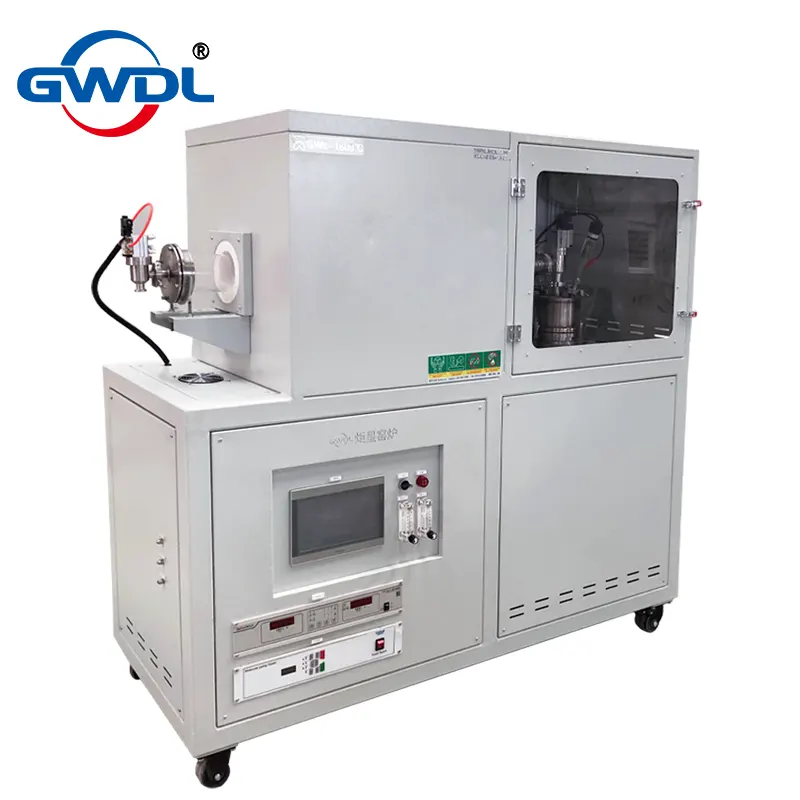

this system supports multiple gas environments (O₂, N₂, Ar, H₂) with exceptional thermal insulation and high-temperature resistance. The integrated observation window enables real-time reaction monitoring, while maintaining superior vacuum performance for advanced material processing.
Widely Used In: Ceramics, metallurgy, electronics, glass, chemicals, machinery, refractories, new material R&D, specialty materials, construction, etc.
Flange Material : Pure titanium (standard)
Flow Control:Digital mass flow meter (standard)
Control Accuracy: ±1°C | Temperature Uniformity: ±1°C (varies with heating chamber size).
User-Friendly Operation:
Programmable with PID auto-tuning
Fully automatic (heating, holding, cooling) without supervision
Optional computer interface for remote control (start/stop/pause, curve setting/storage, historical data). Free software included (see: Computer Control System).
Quartz Glass Tube : for optimal thermal performance.
Pure Titanium Metal Flange Seal : (dual O-ring design).
Near-Room-Temperature Exterior : for safe operation.
Dual-Circuit Protection : for enhanced safety.
Imported Refractory Materials: Excellent insulation, high heat resistance.
Lift door：Pneumatic door opening, controlled by foot pedal, with hot surface facing away from the operator.
Touchscreen: Multilingual menu, multiple temperature rise process curve storage, historical curve storage, and data reports (7 inches).
Computer Control: Controls furnace start, pause, stop, stores historical curves, sets temperature rise curves, reads temperature rise curves, sets parameters, etc.
Siemens PLC Control: Real-time data reading with open ports for data communication with upstream and downstream equipment.
Manual or automatic gas supply system
Observation Window: Designed on the furnace door with high-temperature-resistant quartz glass.
Movable Casters: Two swivel casters and two fixed casters.
Rapid Cooling: Achieved with a frequency inverter and centrifugal fan for programmable cooling control.
Quick Discharge Rack: The material rack is made of high-temperature steel, with wear-resistant heavy-duty refractory bricks on the top, enabling rapid
transfer of materials from the furnace to an external platform in high-temperature environments.
Multi-Point Temperature Control: Independent temperature control on multiple sides for improved temperature uniformity.
High temperature furnace chamber with multi-sided heating for very good temperature uniformity.
Stirring Fan: Metal stirring fan, can be linked with PLC to automatically start at designated temperature segments.
Independent Control Cabinet: Separate control cabinet with an extended control cable length (up to 5 meters).
Heat Storage Furnace Bottom: The furnace bottom sinks 50mm with a hollow design, supported by multiple vertical columns, increasing Ceramic Load-Bearing Plate and ensuring uniform heat distribution at the bottom.
Exhaust Gas Treatment: Adds VOC exhaust gas treatment furnace with a capacity of 40m³,H or 80m³,H.
Corrosion-Resistant Furnace Lining: Furnace lining material resistant to acids, alkalis, and hydrofluoric acid corrosion.
Heating Element Protection: Prevents contamination from powder and corrosion from volatile substances and scratch.
Clean Furnace Lining: Furnace lining made of ceramics, high-temperature glass, and high-temperature metals to prevent dust and volatile substances.
Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
Customizable charging racks according to requirements, for loading the furnace in two levels.
