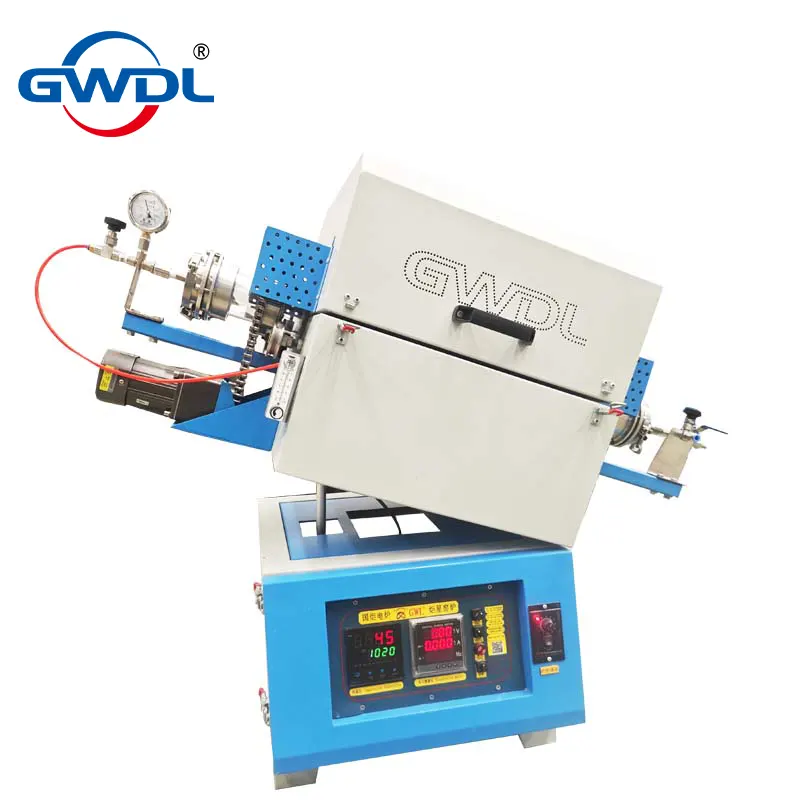

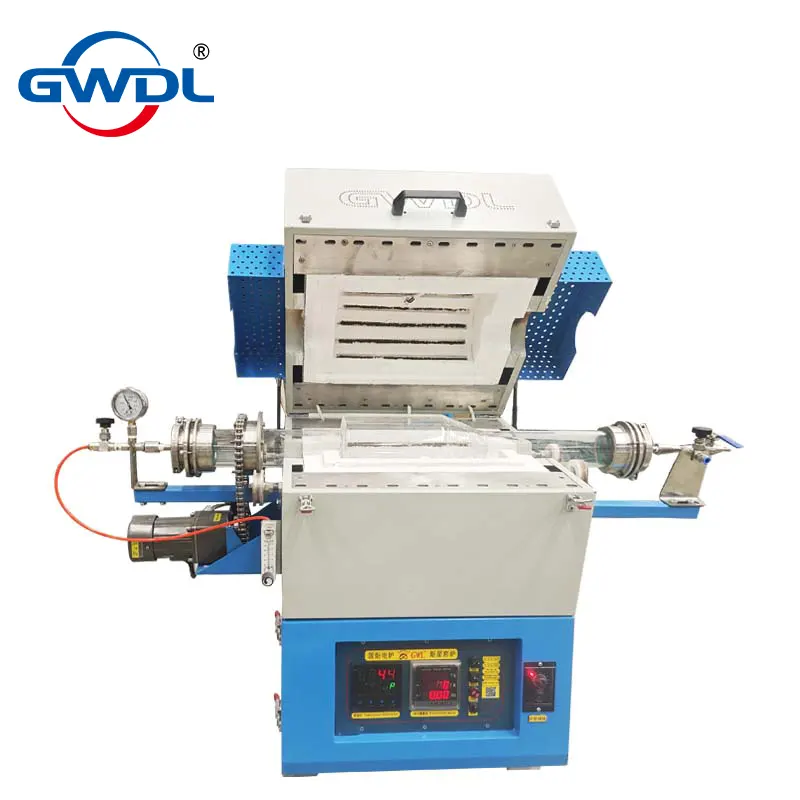

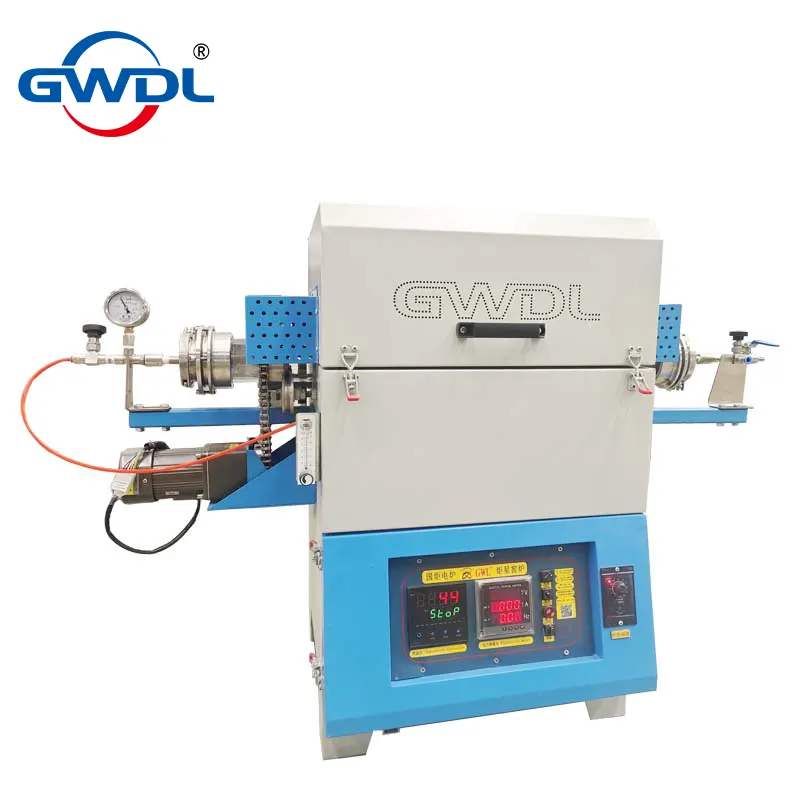

Compact Tilting Rotary Tube Furnace

• Temperature: 1200°C
• Voltage: AC 220V
• Power: 5KW
• Maximum working temperature: 1250°C
• Long-term working temperature: 1200°C
• Temperature control accuracy: ±1°C
• Furnace tube material: Stainless steel
• Furnace tube dimensions: 80mm diameter at both ends/150mm diameter at center
• Heating zone length: 300mm
• Total tube length: 1000mm
• Rotation system: Mechanical bearing drive, automatic rotation
• Rotation speed: 1-10 rpm (adjustable)
• Tilting angle: 1-15 degrees (adjustable)
• Temperature uniformity: ±1°C (depending on heating chamber size)
• Platinum-rhodium-platinum：Type B thermocouple, measuring range 0-1820°C
• Heating rate: 1°C/hour to 40°C/minute (adjustable)
• Heating element: High-temperature alloy resistance wire
• Heating element arrangement: Horizontally installed around furnace tube
• Furnace Body: Tiltable, the furnace body is processed by CNC machine tools, and made through polishing, grinding, acid washing, phosphating, plastic powder spraying, and high-temperature baking. It features a dual-color design, offering a novel and aesthetically pleasing appearance, with advantages such as oxidation resistance, acid and alkali resistance, corrosion resistance, high-temperature resistance, and easy cleaning.
• Multi-curve Input: 30-segment program control function, allowing input settings: one curve with 30 segments, two curves with 14 segments each, three curves with 9 segments each, or five curves with 5 segments each. Multiple curves can be input simultaneously and arbitrarily recalled during use.
• Temperature Curve Setting: Equipped with an intelligent temperature controller, featuring standard PID, artificial intelligence adjustment (APID or MPT), and other regulation methods. It has self-tuning and self-learning functions, with excellent control characteristics such as no overshoot or undershoot. The 30-segment program control function enables arbitrary slope heating and cooling control, with programmable/operable commands like jump (loop), run, pause, and stop. Programs can be modified during operation. The AI adjustment algorithm with curve-fitting capability ensures smooth and stable curve control.
• Protection: Integrated modular control unit ensures precise control accuracy, with dual-loop control and dual-loop protection. It includes protections against overshoot, undershoot, segment mismatch, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft-start.
• Control: Closed-loop thyristor module trigger control is adopted, using phase-shift trigger or zero-crossing trigger methods. Output voltage, current, or power can be continuously adjusted, with constant voltage, constant current, or constant power characteristics. The current loop serves as the inner loop, while the voltage loop acts as the outer loop. When the load is suddenly applied or the load current exceeds the limit, the output current of the voltage regulator is restricted within the rated range to ensure normal operation. The voltage loop also participates in regulation, maintaining the output current and voltage stability within the rated range, protecting heating elements from excessive current or voltage impact, ensuring safe, reliable control and precision.
• Refractory Material: The furnace lining is made of vacuum-formed high-purity alumina lightweight material. Areas prone to contact during material handling and load-bearing positions (furnace mouth, furnace bottom) use lightweight hollow alumina balls. It features high operating temperature, low heat storage, resistance to rapid heating and cooling, no cracking, no slagging, and excellent insulation (energy efficiency is over 80% compared to traditional electric furnaces).
• Insulation Material: Three-layer insulation, consisting of aluminum silicate fiberboard, alumina fiberboard, and alumina (polycrystalline) fiberboard.
• Warranty Coverage and Duration: The electric furnace is under free warranty for one year. Heating elements and furnace tubes are not covered (natural damage to heating elements within three months will be replaced free of charge).
• Included Accessories: Two heating elements, two sets of tools, one instruction manual, one certificate of compliance, one pair of crucible tongs, one pair of high-temperature gloves, one dedicated crucible for tube furnaces, and two sealing rings.

Additional Equipment

• Lift door：Pneumatic door opening, controlled by foot pedal, with hot surface facing away from the operator.
• Touchscreen: Multilingual menu, multiple temperature rise process curve storage, historical curve storage, and data reports (7 inches).
• Computer Control: Controls furnace start, pause, stop, stores historical curves, sets temperature rise curves, reads temperature rise curves, sets parameters, etc.
• Siemens PLC Control: Real-time data reading with open ports for data communication with upstream and downstream equipment.
• Manual or automatic gas supply system
• Observation Window: Designed on the furnace door with high-temperature-resistant quartz glass.
• Movable Casters: Two swivel casters and two fixed casters.
• Rapid Cooling: Achieved with a frequency inverter and centrifugal fan for programmable cooling control.
• Quick Discharge Rack: The material rack is made of high-temperature steel, with wear-resistant heavy-duty refractory bricks on the top, enabling rapid
• transfer of materials from the furnace to an external platform in high-temperature environments.
• Multi-Point Temperature Control: Independent temperature control on multiple sides for improved temperature uniformity.
• High temperature furnace chamber with multi-sided heating for very good temperature uniformity.
• Stirring Fan: Metal stirring fan, can be linked with PLC to automatically start at designated temperature segments.
• Independent Control Cabinet: Separate control cabinet with an extended control cable length (up to 5 meters).
• Heat Storage Furnace Bottom: The furnace bottom sinks 50mm with a hollow design, supported by multiple vertical columns, increasing Ceramic Load-Bearing Plate and ensuring uniform heat distribution at the bottom.
• Exhaust Gas Treatment: Adds VOC exhaust gas treatment furnace with a capacity of 40m³,H or 80m³,H.
• Corrosion-Resistant Furnace Lining: Furnace lining material resistant to acids, alkalis, and hydrofluoric acid corrosion.
• Heating Element Protection: Prevents contamination from powder and corrosion from volatile substances and scratch.
• Clean Furnace Lining: Furnace lining made of ceramics, high-temperature glass, and high-temperature metals to prevent dust and volatile substances.
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Customizable charging racks according to requirements, for loading the furnace in two levels.
