Graphene Production Furnace

Product Description

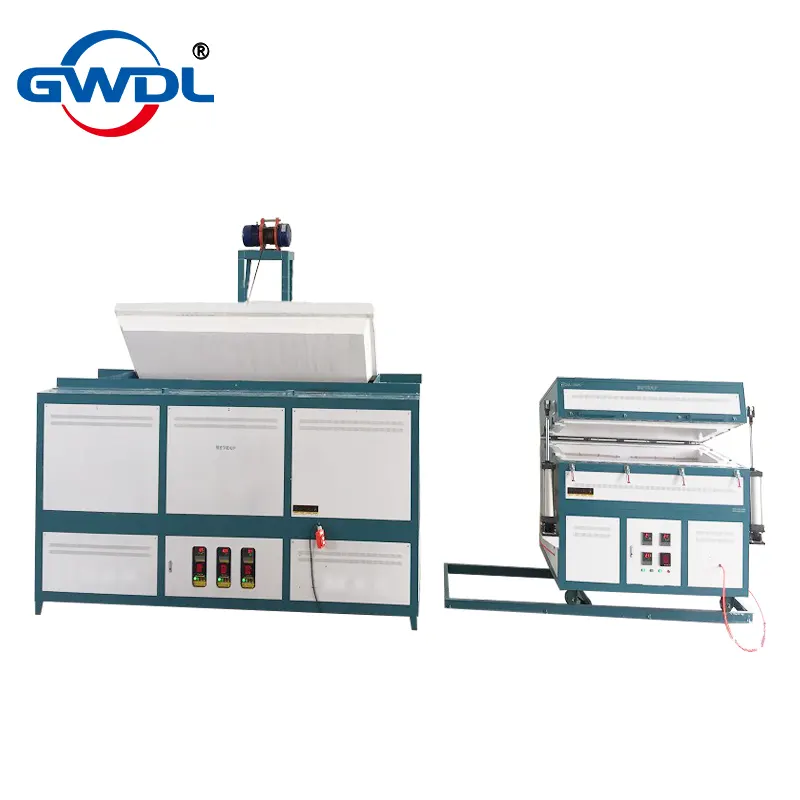

The graphene production furnace is a large-scale multi-zone tube furnace with an opening design, widely used for research and production in ceramics, metallurgy, electronics, glass, chemical industry, refractory materials, new materials, and graphene thermal treatment.

It adopts quartz glass tube or stainless steel tube, multi-zone heating (up to 16 zones), and features ±1℃ accuracy, high uniformity, and programmable temperature control.
The furnace supports vacuum (-0.1 MPa) and multiple protective gases (O₂, N₂, Ar, H₂), making it ideal for graphene synthesis, sintering, annealing, and thermal decomposition.

Technical Parameters

Item	1000℃ Model	1200℃ Model
Power Supply	AC 220V / 380V	AC 220V / 380V
Max. Temperature	1050℃	1250℃
Working Temperature	1000℃	1200℃
Accuracy	±1℃	±1℃
Tube Material	Stainless steel / Quartz glass / Alumina tube	Stainless steel / Quartz glass / Alumina tube
Heating Zones	1–16 zones (optional)	1–16 zones (optional)
Temperature Uniformity	±1℃ (multi-point optional)	±1℃ (multi-point optional)
Thermocouple	K-type, 0–1350℃	K-type, 0–1350℃
Heating Rate	1℃/h – 60℃/min adjustable	1℃/h – 60℃/min adjustable
Programming Segments	50 segments / 22 segments / 8 segments	50 segments / 22 segments / 8 segments
Heating Element	High-temperature alloy resistance wire (surface temp. up to 1450℃)	High-temperature alloy resistance wire (surface temp. up to 1450℃)
Element Position	Around the tube, horizontal layout	Around the tube, horizontal layout
Refractory	High-purity alumina fiber board	High-purity alumina fiber board
Cooling Structure	Double-layer shell, air-cooled	Double-layer shell, air-cooled
Furnace Shell Temp	≤45℃	≤45℃
Vacuum	-0.1 MPa	-0.1 MPa
Gas Atmospheres	O₂, N₂, Ar, H₂	O₂, N₂, Ar, H₂
Computer Interface	RS485 / RS232 / USB	RS485 / RS232 / USB
Power Range	2–200 KW (depending on heating rate)	2–200 KW (depending on heating rate)
Tube Diameter (mm)	80 / 90 / 100 / 110 / 150 / 220 / 300 / 350 / 500 / 600 (customizable)	Same as left
Heating Zone Length (mm)	3000 / 4000 / 5000 / 6000 / 9000 / 12000 (customizable)	Same as left
Warranty	1 year (heating elements & tube excluded; free replacement if failed within 3 months)	Same as left
Accessories	2 heating elements, 2 support rods, 1 crucible tong, 1 pair of high-temp gloves, 1 tube crucible, sealing rings, insulation brick, manual	Same as left

Product Features

Multi-zone design (up to 16 zones) for precise temperature profiles and uniformity ±1℃.

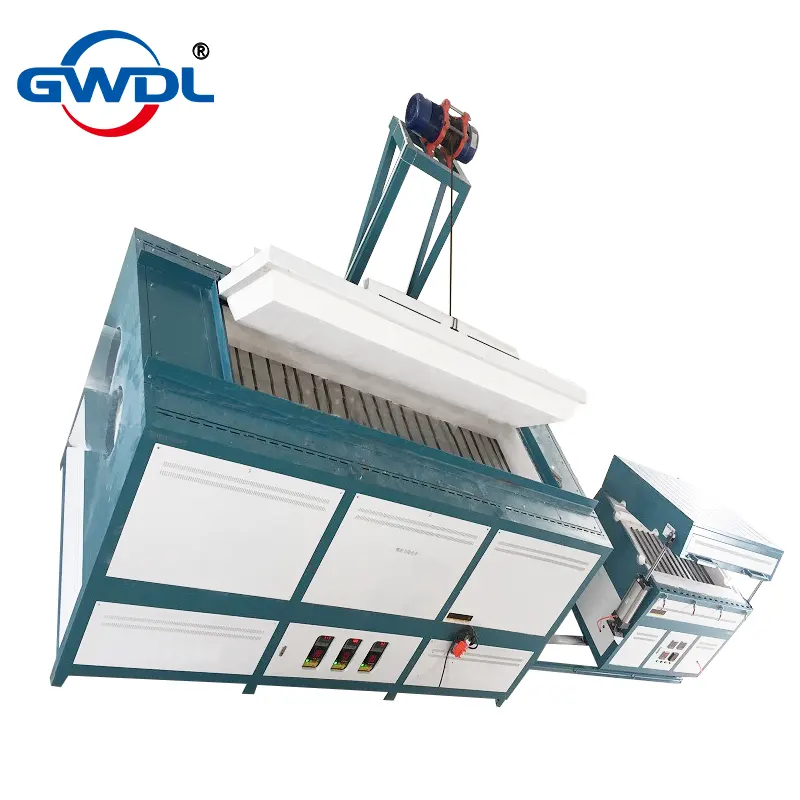

Opening chamber structure allows easy loading, unloading, and maintenance.
Supports multiple tubes: quartz glass, stainless steel, alumina.
Programmable control with PID self-tuning, up to 50 temperature segments.
Vacuum & atmosphere operation (-0.1 MPa, O₂/N₂/Ar/H₂).
Graphene production-ready: optimized for sintering, pyrolysis, and thermal reduction.
Energy-efficient insulation with high-purity alumina fiber board.
Stable operation: furnace shell temperature ≤45℃ for safe long-term use.
Dual-circuit protection: over-temp, over-current, over-voltage, and power failure safety.
Computer interface (RS485/RS232/USB) for remote monitoring and data logging.
