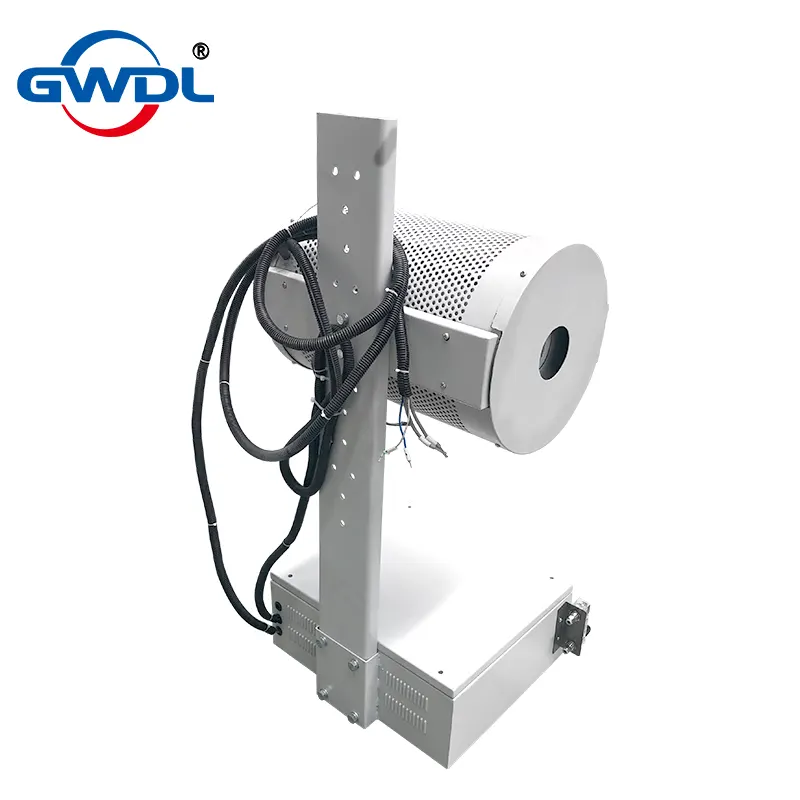

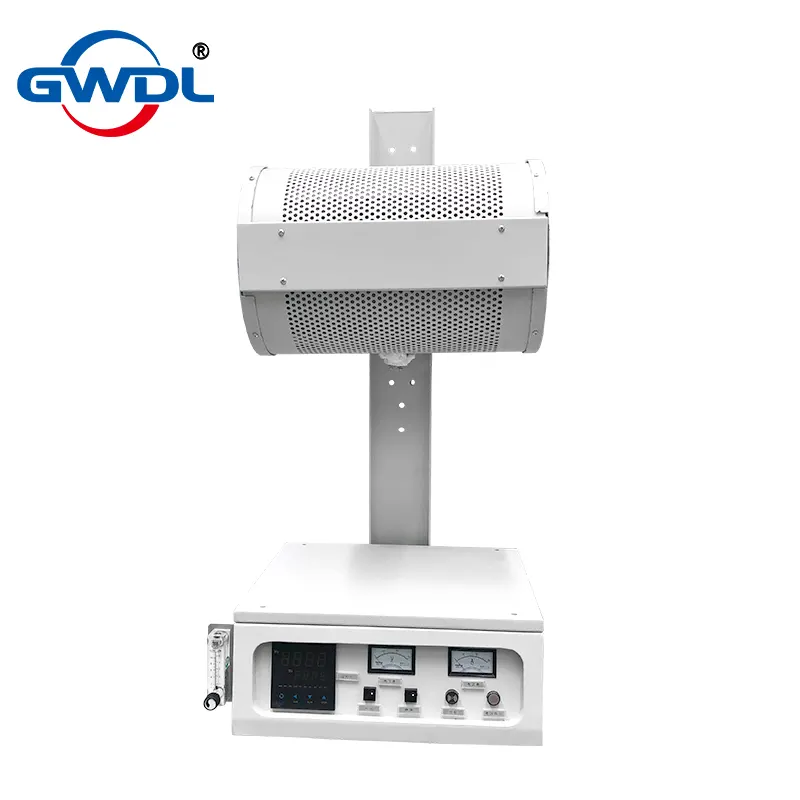

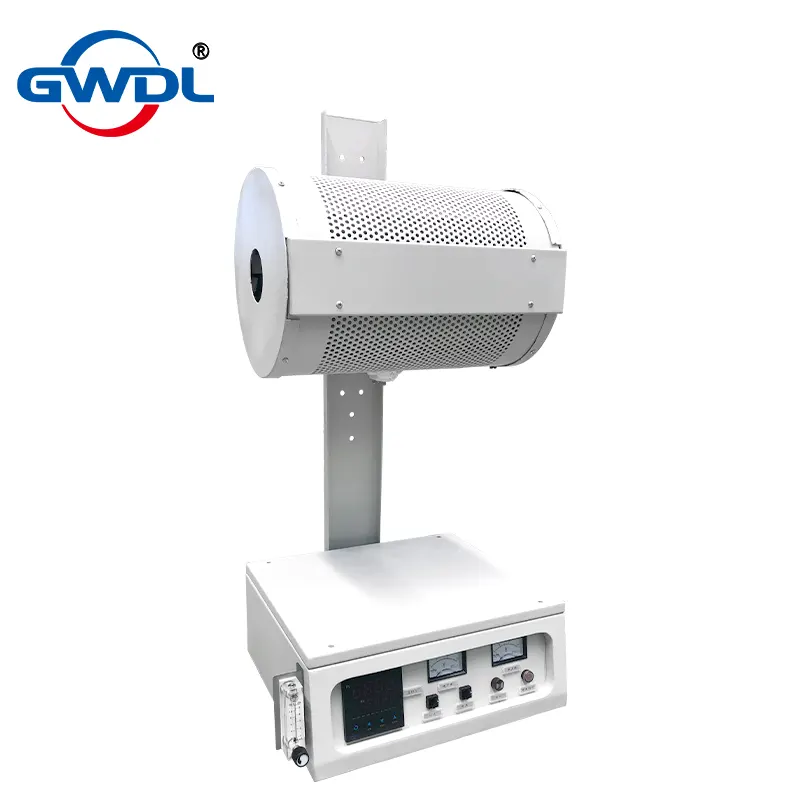

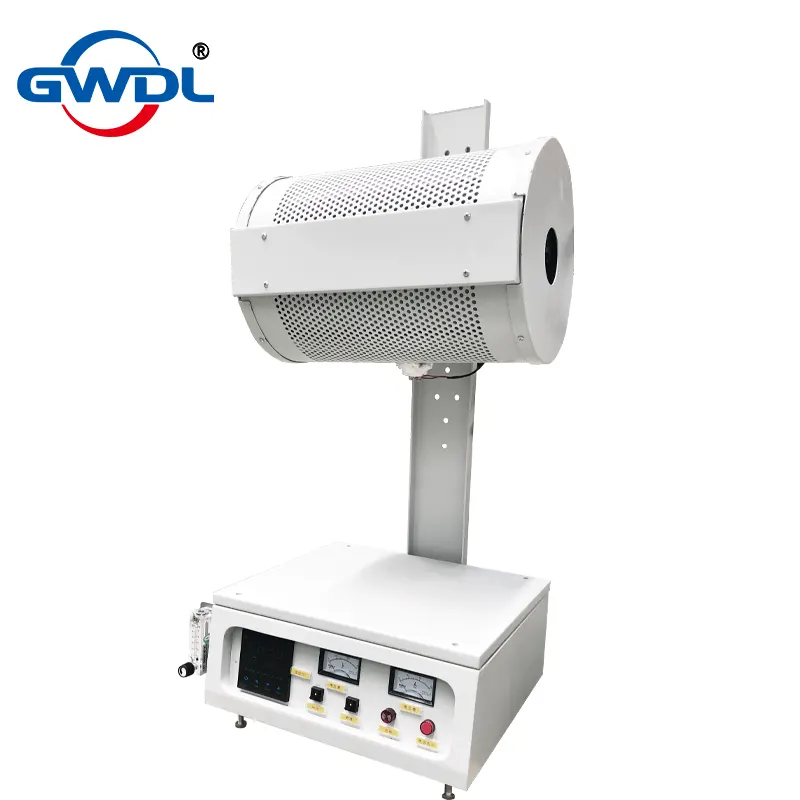

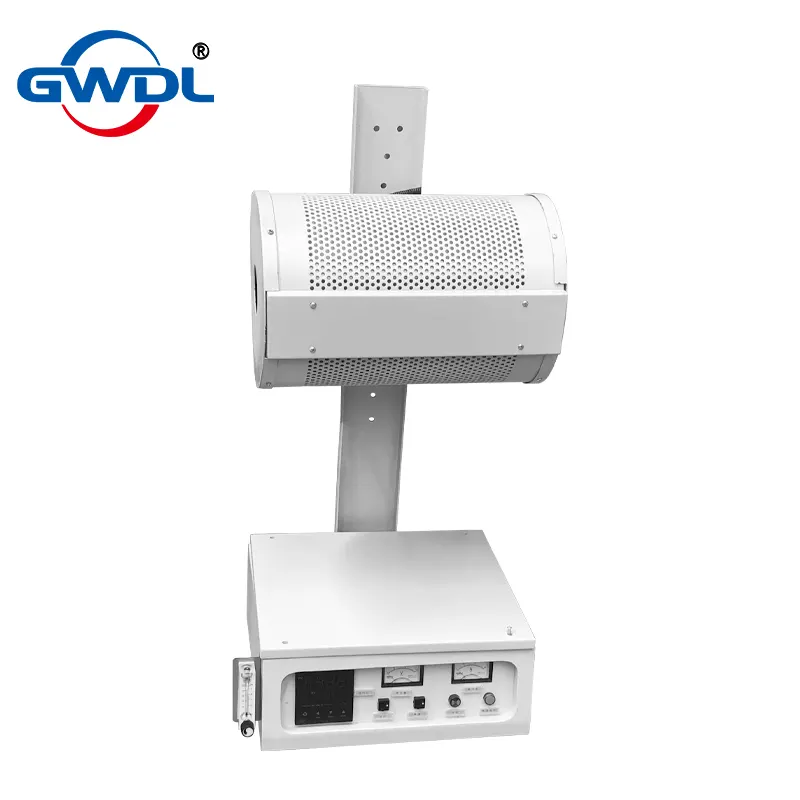

Multi-Station Tilting Tube Furnace

• Temperature Item:1200°C
• Voltage AC:220V/380V
• Max Working Temperature:1250°C
• Long-term Working Temperature:1200°C
• Temperature Control Accuracy:±1°C
• Furnace Tube Material:Stainless Steel Tube / Quartz Glass Tube / Alumina Tube
• Temperature Uniformity in Furnace:±1°C (depending on heating chamber size). Multi-zone temperature control available for higher precision.
• Temperature Sensor & Range:Nickel-Chromium/Nickel-Silicon K-type, Range: 0-1350°C
• Programmable Curve Segments:Group 1: 50 segments, Group 2: 22 segments, Group 3: 8 segments
• Heating Rate:Adjustable from 1°C/h to 40°C/min
• Heating Element:Silicon Carbide Rods
• Heating Element Position:Surrounding the furnace tube, horizontally aligned
• Refractory Material:High-purity alumina fiberboard
• Cooling Structure:Double-layer furnace shell, air-cooled
• Furnace Surface Temperature:≤45°C
• Computer Interface:RS485, RS232, USB
• Warranty Coverage & Duration:Electric furnace: 1 year free warranty. Heating elements and furnace tubes are not covered (heating elements replaced free of charge if naturally damaged within 3 months).
• Included Accessories:Two heating elements, two sets of rod tools, one instruction manual, one certificate, one furnace door insulation brick, one pair of crucible tongs, one pair of high-temperature gloves, one dedicated tube furnace crucible, and two sealing rings.

Additional Equipment

• Lift door：Pneumatic door opening, controlled by foot pedal, with hot surface facing away from the operator.
• Touchscreen: Multilingual menu, multiple temperature rise process curve storage, historical curve storage, and data reports (7 inches).
• Computer Control: Controls furnace start, pause, stop, stores historical curves, sets temperature rise curves, reads temperature rise curves, sets parameters, etc.
• Siemens PLC Control: Real-time data reading with open ports for data communication with upstream and downstream equipment.
• Manual or automatic gas supply system
• Observation Window: Designed on the furnace door with high-temperature-resistant quartz glass.
• Movable Casters: Two swivel casters and two fixed casters.
• Rapid Cooling: Achieved with a frequency inverter and centrifugal fan for programmable cooling control.
• Quick Discharge Rack: The material rack is made of high-temperature steel, with wear-resistant heavy-duty refractory bricks on the top, enabling rapid
• transfer of materials from the furnace to an external platform in high-temperature environments.
• Multi-Point Temperature Control: Independent temperature control on multiple sides for improved temperature uniformity.
• High temperature furnace chamber with multi-sided heating for very good temperature uniformity.
• Stirring Fan: Metal stirring fan, can be linked with PLC to automatically start at designated temperature segments.
• Independent Control Cabinet: Separate control cabinet with an extended control cable length (up to 5 meters).
• Heat Storage Furnace Bottom: The furnace bottom sinks 50mm with a hollow design, supported by multiple vertical columns, increasing Ceramic Load-Bearing Plate and ensuring uniform heat distribution at the bottom.
• Exhaust Gas Treatment: Adds VOC exhaust gas treatment furnace with a capacity of 40m³,H or 80m³,H.
• Corrosion-Resistant Furnace Lining: Furnace lining material resistant to acids, alkalis, and hydrofluoric acid corrosion.
• Heating Element Protection: Prevents contamination from powder and corrosion from volatile substances and scratch.
• Clean Furnace Lining: Furnace lining made of ceramics, high-temperature glass, and high-temperature metals to prevent dust and volatile substances.
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Customizable charging racks according to requirements, for loading the furnace in two l
