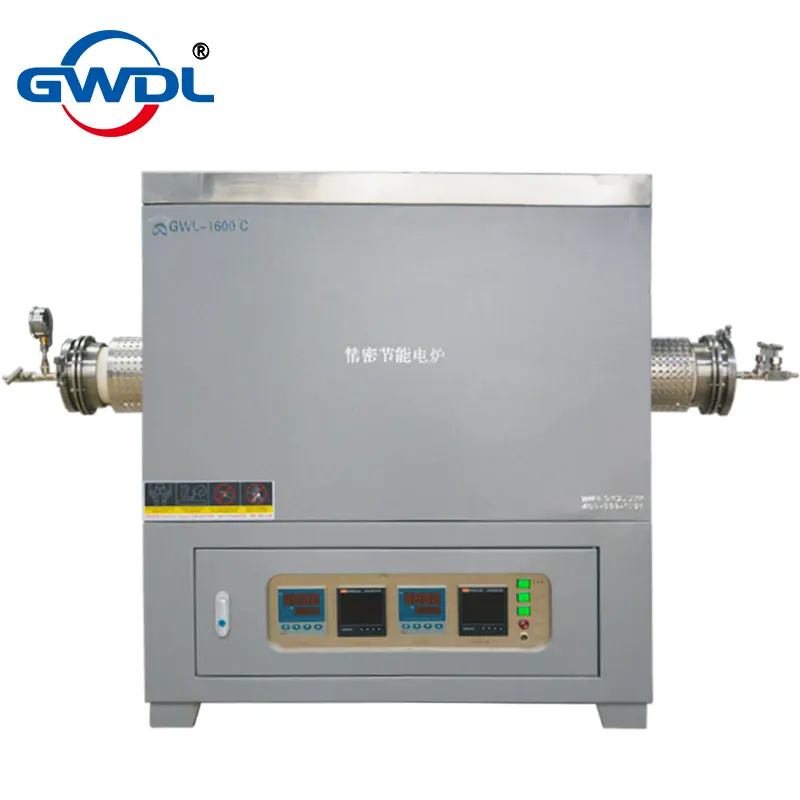

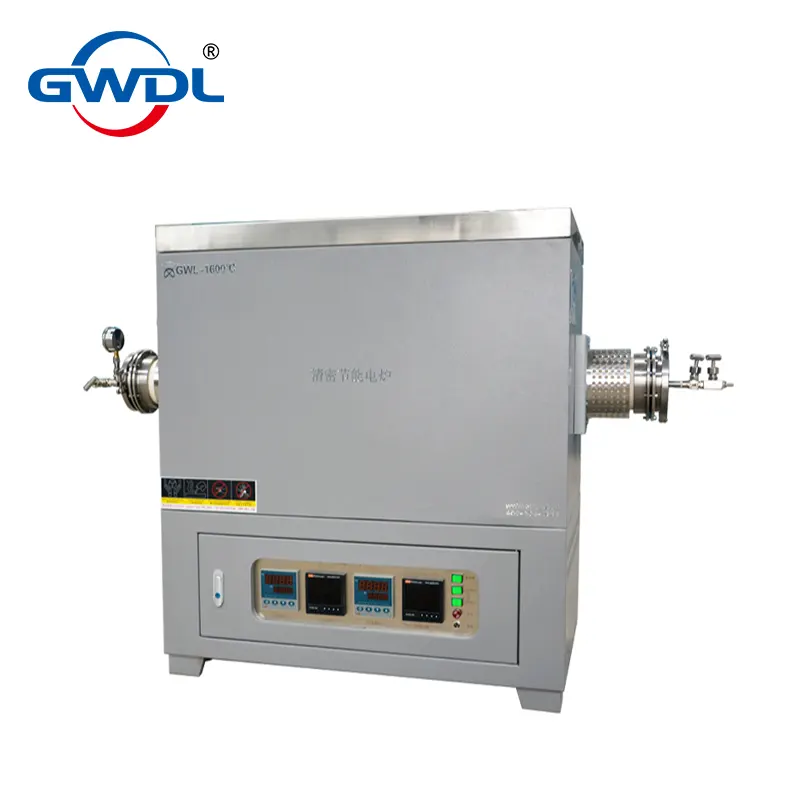

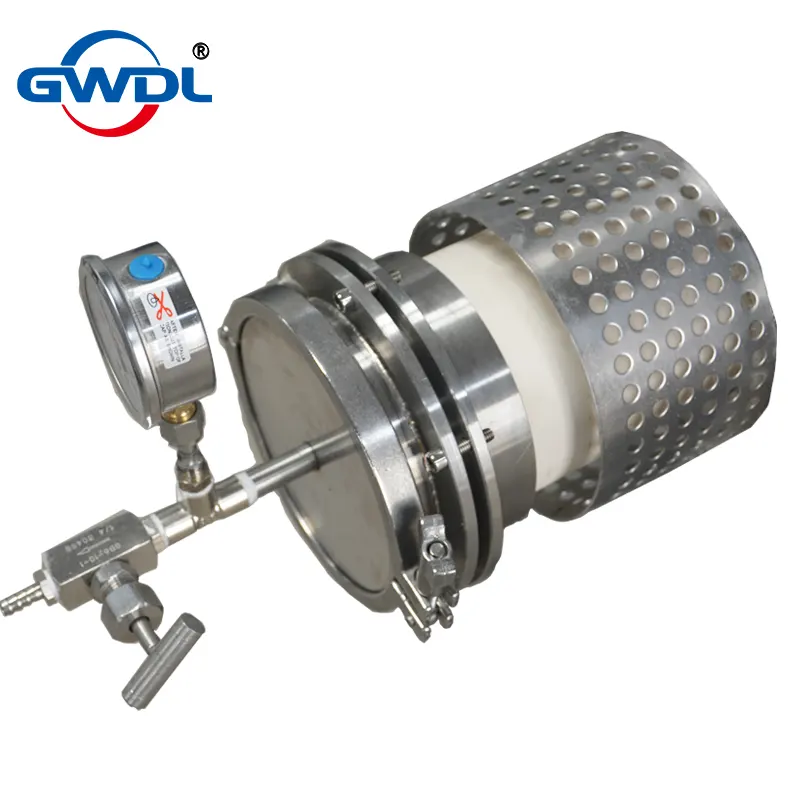

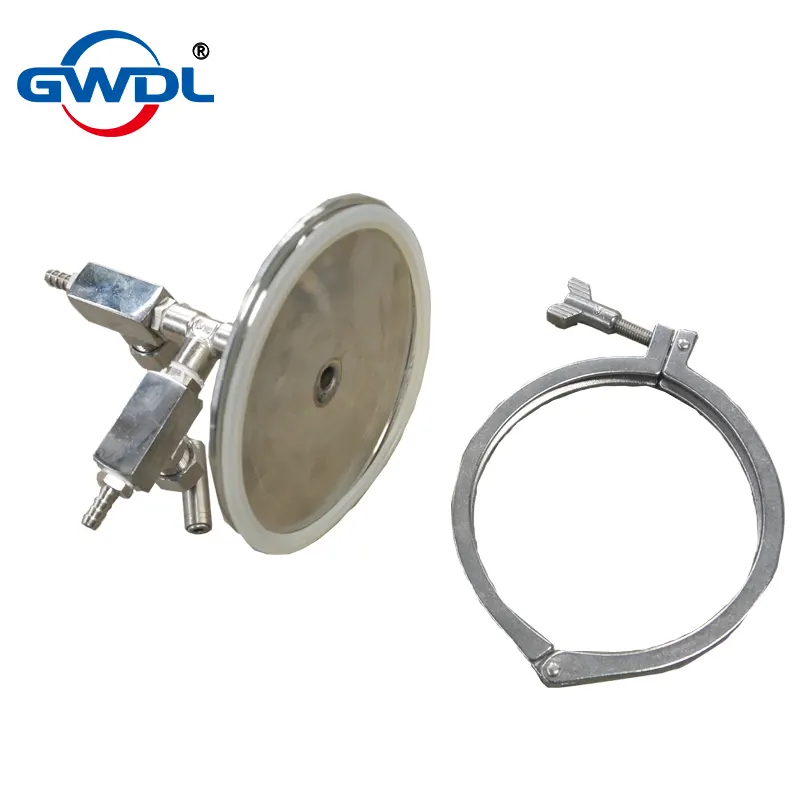

Quick-Flange Tube Furnace

Gas Control Cabinet Specifications

⦁    Gas Supply Types: 2 standard (expandable to 1-10 types)
⦁    Gas Mixing: Adjustable via individual flow meters
⦁    Valves: Imported stainless steel valves (options: standard, SS, or solenoid valves)
⦁    Flow Meters: Two 0-300 mL/min (optional: mass flow meters, float-type flow meters, etc.)
⦁    Pressure Monitoring: Dual-range gauge (positive/negative pressure) (optional: digital vacuum gauge)
⦁    Vacuum Pump: Dual-stage rotary vane pump (2 L/min pumping speed)
⦁    Gas Lines: Dedicated PV tubing (optional: clean stainless steel piping for high-purity gases)
⦁    **Pressure Protection：**To avoid hazards caused by closed furnace tube exhaust ports, blocked exhaust ports, or excessive furnace tube pressure, this system is specially designed. Principle: The electrical contact pressure gauge or pressure sensor obtains signals to drive the control module to close the electromagnetic intake valve, activate the electromagnetic exhaust valve and alarm. Thereby protecting the normal operation of the electric furnace.
⦁    **Gas Leakage Alarm：**According to the atmosphere used, to avoid leakage; Function: When the gas leakage alarm detects that the content of harmful or hazardous gases in the (indoor) air exceeds a certain level, the drive module shuts down the furnace, closes the gas supply intake, opens the exhaust port and ventilation, etc., thereby achieving a good working environment.

Additional Equipment

• Lift door：Pneumatic door opening, controlled by foot pedal, with hot surface facing away from the operator.
• Touchscreen: Multilingual menu, multiple temperature rise process curve storage, historical curve storage, and data reports (7 inches).
• Computer Control: Controls furnace start, pause, stop, stores historical curves, sets temperature rise curves, reads temperature rise curves, sets parameters, etc.
• Siemens PLC Control: Real-time data reading with open ports for data communication with upstream and downstream equipment.
• Manual or automatic gas supply system
• Observation Window: Designed on the furnace door with high-temperature-resistant quartz glass.
• Movable Casters: Two swivel casters and two fixed casters.
• Rapid Cooling: Achieved with a frequency inverter and centrifugal fan for programmable cooling control.
• Quick Discharge Rack: The material rack is made of high-temperature steel, with wear-resistant heavy-duty refractory bricks on the top, enabling rapid
• transfer of materials from the furnace to an external platform in high-temperature environments.
• Multi-Point Temperature Control: Independent temperature control on multiple sides for improved temperature uniformity.
• High temperature furnace chamber with multi-sided heating for very good temperature uniformity.
• Stirring Fan: Metal stirring fan, can be linked with PLC to automatically start at designated temperature segments.
• Independent Control Cabinet: Separate control cabinet with an extended control cable length (up to 5 meters).
• Heat Storage Furnace Bottom: The furnace bottom sinks 50mm with a hollow design, supported by multiple vertical columns, increasing Ceramic Load-Bearing Plate and ensuring uniform heat distribution at the bottom.
• Exhaust Gas Treatment: Adds VOC exhaust gas treatment furnace with a capacity of 40m³,H or 80m³,H.
• Corrosion-Resistant Furnace Lining: Furnace lining material resistant to acids, alkalis, and hydrofluoric acid corrosion.
• Heating Element Protection: Prevents contamination from powder and corrosion from volatile substances and scratch.
• Clean Furnace Lining: Furnace lining made of ceramics, high-temperature glass, and high-temperature metals to prevent dust and volatile substances.
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Customizable charging racks according to requirements, for loading the furnace in two levels.
