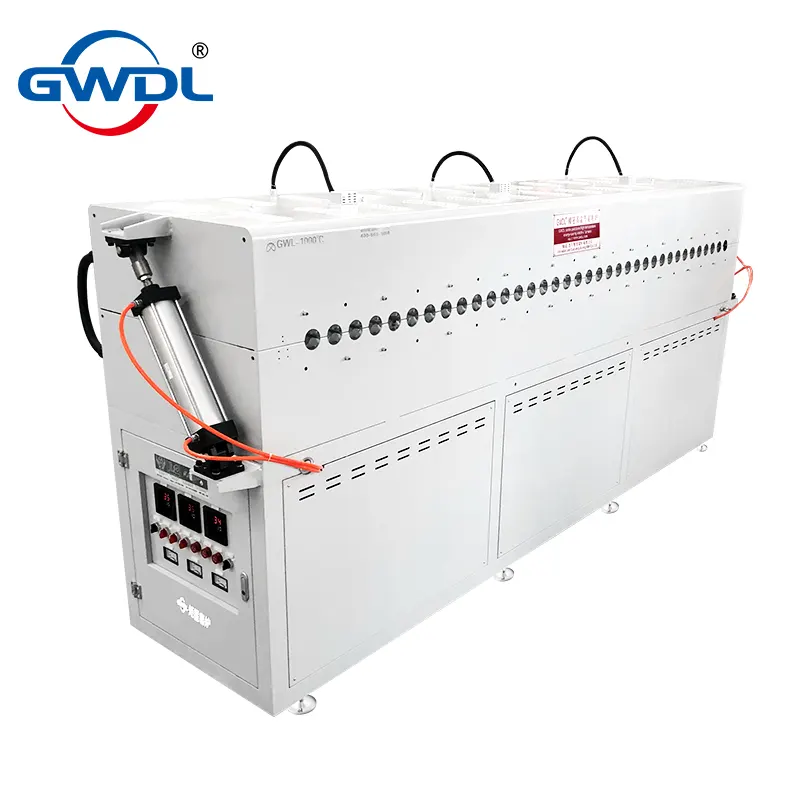

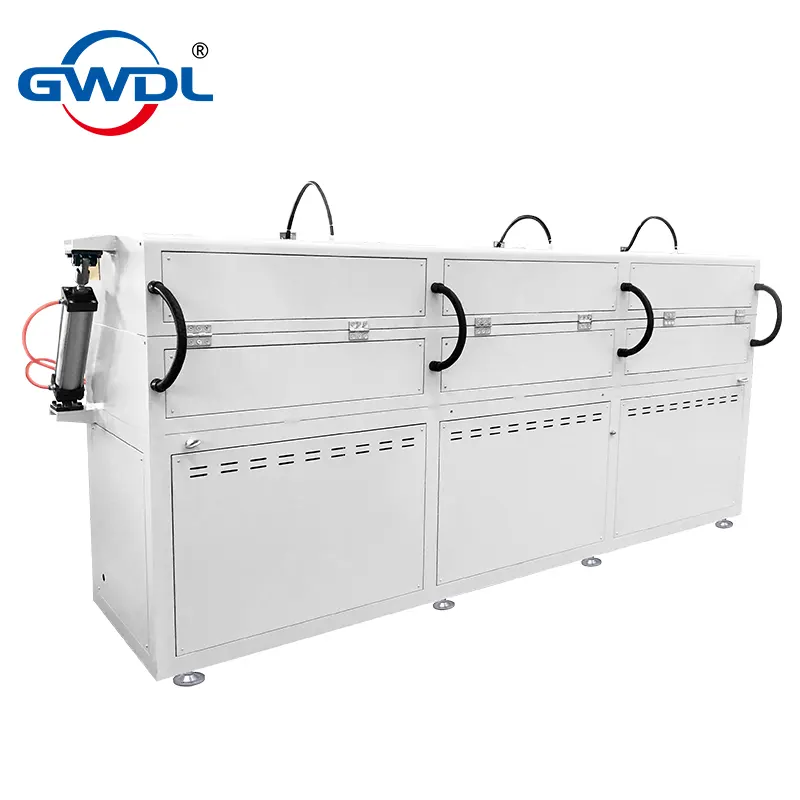

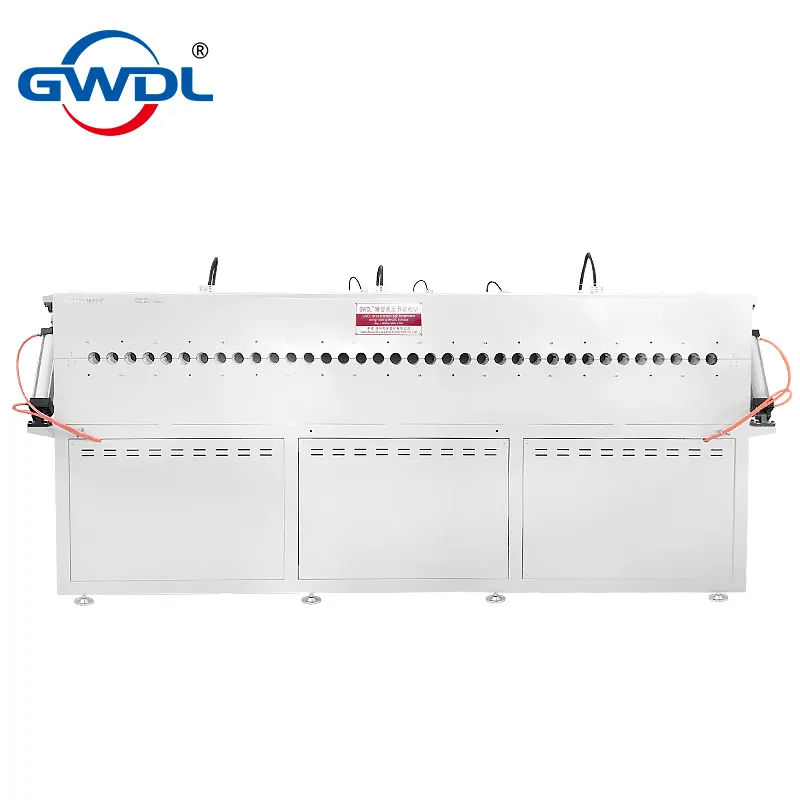

Split-Type Tube Furnace with Vertical Lift Door – Instant Access & Tube Swap

Advantages of Vertical Lift Door Design

1. Effortless Tube Handling

   Slide-in/slide-out working tube without disassembly.

   No awkward tilting or alignment – perfect for fragile quartz/alumina tubes.

2. Instant Process Monitoring

   Observe material reactions (e.g., sintering, CVD growth) without stopping the furnace.

   Adjust samples mid-experiment (e.g., catalyst placement).

3. Maintenance-Friendly

    Replace tubes FASTER (vs. bolted flange designs).

    Clean deposits or inspect tubes without tools.

• Tmax：1000℃
• Thermocouple type K
• Tube Material： Quartz Glass Tube
• Electric heating elements: Silicon Carbide (SiC) Heating Elements

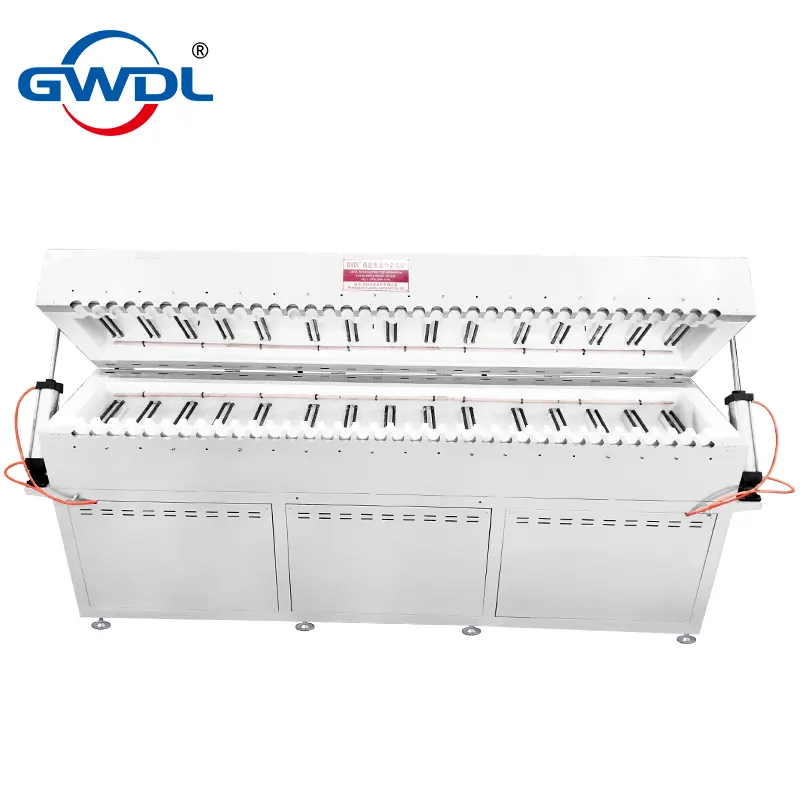

• Heating elements are installed surrounding the furnace tube horizontally.
• Heating Chamber Dimensions: 2950mm (L) × 400mm (W) × 250mm (H)
• Work Center Spacing: 80mm
• Power Supply (AC): 380V / 60KW (Rated operating power: 45KW)
• Lifting Mechanism: Pneumatic lifting (Air compressor not included)
• Surface Temperature: ≤45°C during continuous operation
• Temperature control accuracy: ±1℃
• Temperature Uniformity: Within ±5°C （The temperature control method depends on the size of the furnace chamber. For large furnace chambers, multi-point control can be adopted to achieve better temperature uniformity..）
• Overpressure Protection System
  Automatically prevents hazards from blocked/closed exhaust ports or excessive furnace pressure. When detected (via pressure sensor or contact gauge), the system:1. Closes the intake valve. 2. Activates exhaust valve & alarm. 3. Ensures safe furnace operation.
• Gas Leak Safety Protection: Real-time monitoring with automatic shutdown, exhaust activation, and ventilation if hazardous gas levels exceed safety thresholds
• Furnace Lining is constructed from vacuum-formed high-purity alumina lightweight material (reinforced with alumina hollow ball boards at impact zones—mouth/base) for extreme heat resistance, minimal heat storage, and thermal shock durability (no cracking/spalling).
• Dual shell ventilated housing made of carbon steel for low surface temperature(<45℃) and high stability
• Safety Feature: Main heating circuit disconnects automatically when the door opens at high temperatures.
• By integrating PID control with SCR technology, precise temperature control with comprehensive safety protection.
• 50-Segment Temperature Control Program Settings：1 curve = 50 segments；2 curves = 28 segments/curve; 3 curves = 15 segments/curve; 5 curves = 9 segments/curve.
• Housing coated in RAL 7035
• RS485 RS232 USB Communication Interface
• Lead Time：Standard sizes: within 7 days；Customized chamber: 7–15 days
• Warranty：1-year free warranty for the furnace； Tubes and heating elements not covered； Heating elements: free replacement within 3 months if damaged naturally.
• Accessories: Heating Elements ×2,Heating Element Mounting Kits ×2, Operation Manual ×1, Certificate of Compliance ×1, Special Crucible for Tube Furnace ×1, Thermal Insulation Plugs ×2, Sealing Rings (O-rings) ×2

 Additional Equipment

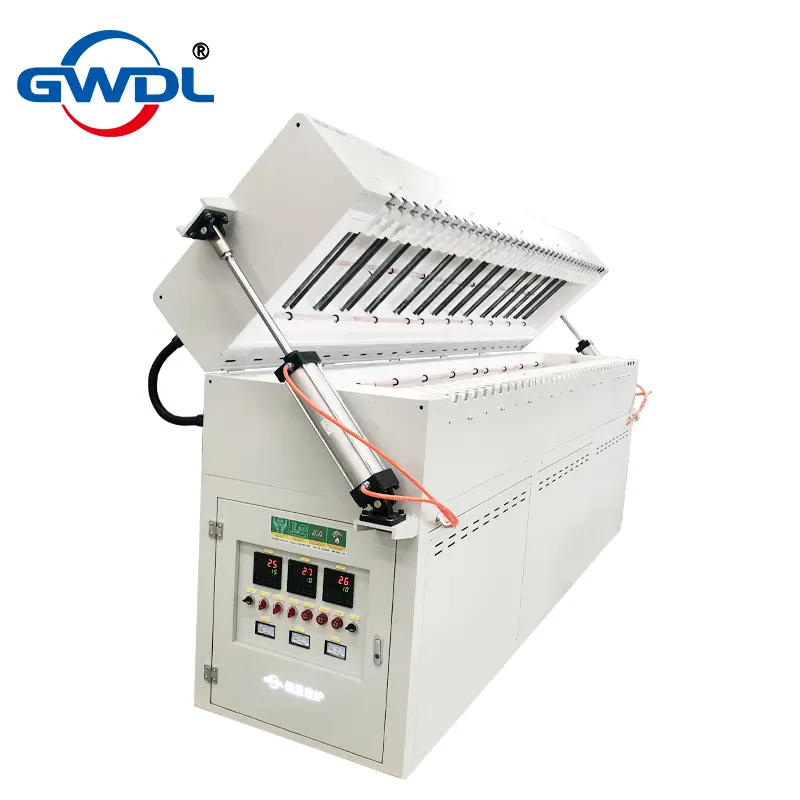

• Lift door：Pneumatic door opening, controlled by foot pedal, with hot surface facing away from the operator.
• Touchscreen: Multilingual menu, multiple temperature rise process curve storage, historical curve storage, and data reports (7 inches).
• Computer Control: Controls furnace start, pause, stop, stores historical curves, sets temperature rise curves, reads temperature rise curves, sets parameters, etc.
• Siemens PLC Control: Real-time data reading with open ports for data communication with upstream and downstream equipment.
• Manual or automatic gas supply system
• Observation Window: Designed on the furnace door with high-temperature-resistant quartz glass.
• Movable Casters: Two swivel casters and two fixed casters.
• Rapid Cooling: Achieved with a frequency inverter and centrifugal fan for programmable cooling control.
• Quick Discharge Rack: The material rack is made of high-temperature steel, with wear-resistant heavy-duty refractory bricks on the top, enabling rapid
• transfer of materials from the furnace to an external platform in high-temperature environments.
• Multi-Point Temperature Control: Independent temperature control on multiple sides for improved temperature uniformity.
• High temperature furnace chamber with multi-sided heating for very good temperature uniformity.
• Stirring Fan: Metal stirring fan, can be linked with PLC to automatically start at designated temperature segments.
• Independent Control Cabinet: Separate control cabinet with an extended control cable length (up to 5 meters).
• Heat Storage Furnace Bottom: The furnace bottom sinks 50mm with a hollow design, supported by multiple vertical columns, increasing Ceramic Load-Bearing Plate and ensuring uniform heat distribution at the bottom.
• Exhaust Gas Treatment: Adds VOC exhaust gas treatment furnace with a capacity of 40m³,H or 80m³,H.
• Corrosion-Resistant Furnace Lining: Furnace lining material resistant to acids, alkalis, and hydrofluoric acid corrosion.
• Heating Element Protection: Prevents contamination from powder and corrosion from volatile substances and scratch.
• Clean Furnace Lining: Furnace lining made of ceramics, high-temperature glass, and high-temperature metals to prevent dust and volatile substances.
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Customizable charging racks according to requirements, for loading the furnace in two l
