Ultra-high temperature ceramic fiber board, 1800℃ resistance, core thermal insulation material

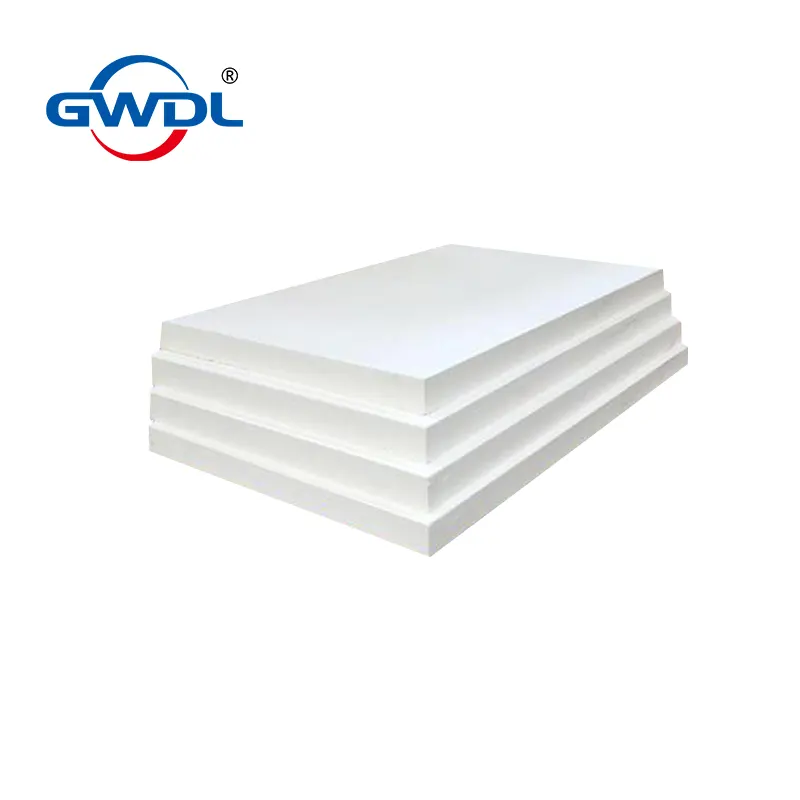

Ultra-High Temperature Ceramic Fiber Board

The ultra-high temperature ceramic fiber board breaks through the temperature resistance limit of traditional materials. It maintains extremely low thermal conductivity even under ultra-high temperatures, featuring excellent thermal insulation efficiency. This can significantly reduce the temperature of the equipment shell, improving safety and energy efficiency. It also has excellent thermal shock resistance, being able to withstand severe temperature changes without cracking or peeling; its low heat capacity design accelerates the heating and cooling of the equipment.

Product Specification Sheet

Product Series: GWDL-FR High-Temperature Insulation Materials

This table shows the key specifications for different models in our GWDL-FR series. These materials are designed to withstand high temperatures with minimal shrinkage.

Specification	GWDL-FR-1000	GWDL-FR-1260	GWDL-FR-1420	GWDL-FR-1500	GWDL-FR-1600	GWDL-FR-1700	GWDL-FR-1800	GWDL-FR-1850
Maximum Service Temp. (°C)	1000	1260	1420	1500	1600	1700	1800	1850
Long-Term Use Temp. (°C)	950	1200	1350	1450	1550	1650	1750	1800
Bulk Density (kg/m³)	300 - 600	300 - 600	400 - 700	400 - 700	400 - 700	400 - 700	450 - 700	500 - 700
Thermal Conductivity @ 1200°C (W/m·K)	0.14	0.145	0.155	0.15	0.155	0.16	0.17	0.20
--- Linear Shrinkage (%) ---
After heating to 1000°C	≤ 1.0	-	-	-	-	-	-	-
After heating to 1200°C	-	≤ 0.5	≤ 0.2	-	-	-	-	-
After heating to 1400°C	-	-	≤ 1.0	≤ 0.2	-	-	-	-
After heating to 1500°C	-	-	-	≤ 1.0	≤ 0.2	-	-	-
After heating to 1600°C	-	-	-	-	≤ 2.0	≤ 0.3	-	-
After heating to 1700°C	-	-	-	-	-	≤ 2.0	≤ 0.6	≤ 0.8
After heating to 1800°C	-	-	-	-	-	-	≤ 2.0	≤ 0.5

Key Terms Explained:

Maximum Service Temperature: The absolute highest temperature the material can be exposed to for short periods.
Long-Term Use Temperature: The recommended maximum temperature for continuous, safe operation without significant degradation.
Bulk Density: The mass per unit volume. Lower density often indicates better insulation but may affect mechanical strength.
Thermal Conductivity: A measure of how well the material conducts heat. Lower values mean better insulation performance.
Linear Shrinkage on Heating: The percentage by which the material permanently contracts when heated to a specific temperature. Lower values are better, indicating greater dimensional stability.
