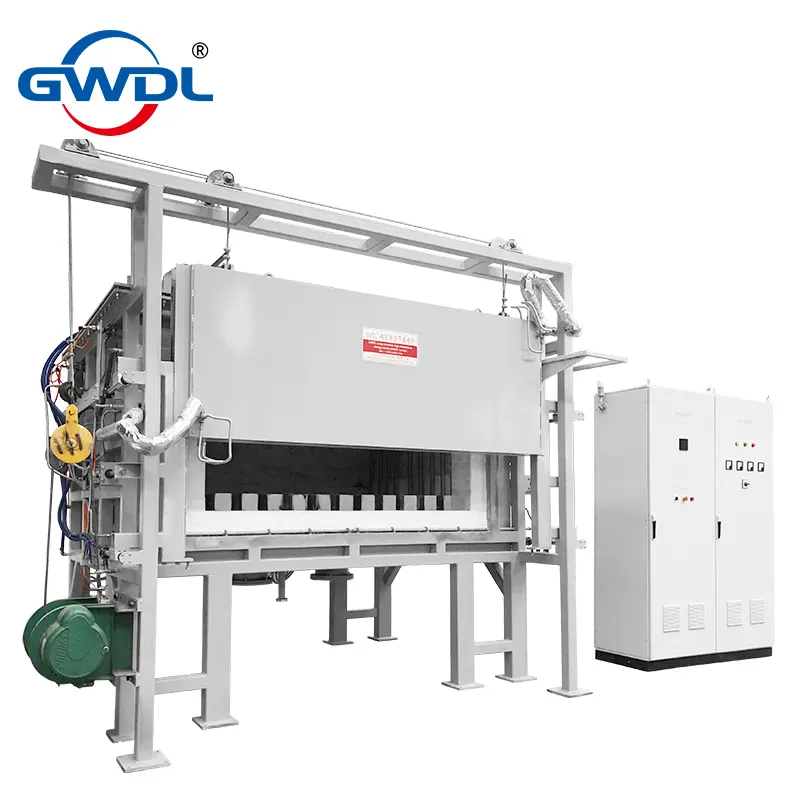

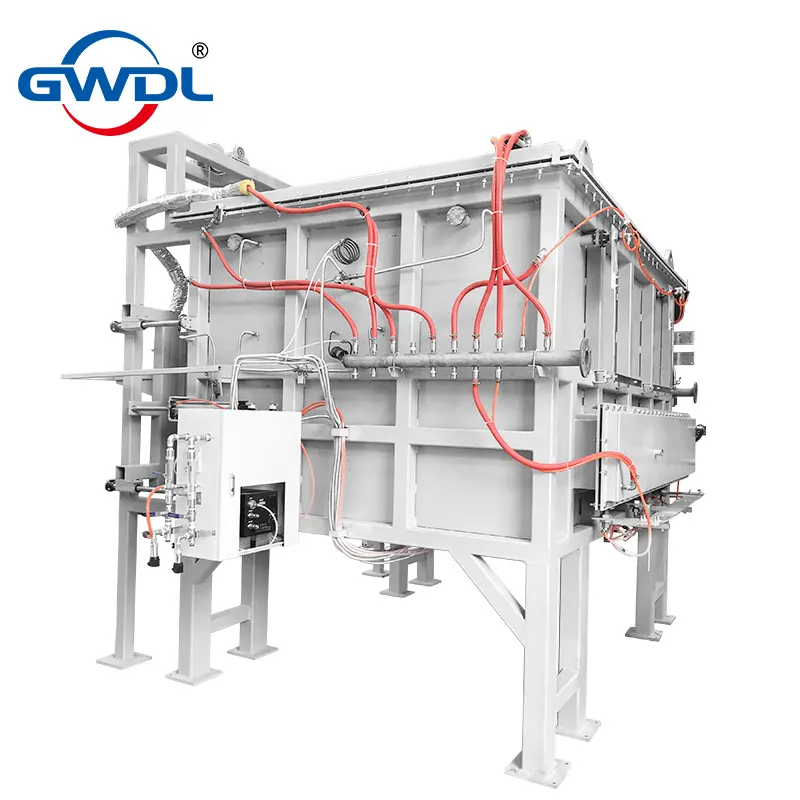

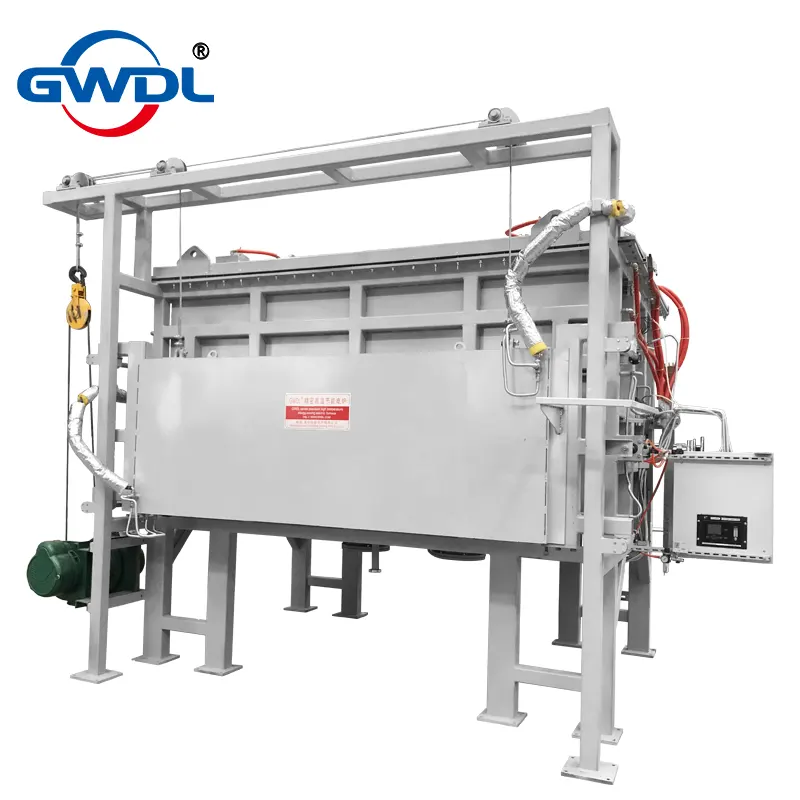

It consists of a double-layer steel plate furnace body (equipped with water-cooled sealing and locking positioning). Configured with a 270kW transformer, Siemens PLC, and a 10-inch touch screen, it adopts tungsten/molybdenum rod heating and 99.47% purity alumina refractory bricks. It supports a material lifting and in-out system, making it suitable for high-precision high-temperature processing scenarios.
| Furnace Body | Double-layer Shell | 6# steel plate + processing + lifting position positioning + locking + top water-cooled sealing |
| Mechanical Parts | Rails, furnace body connection, guiding | |
| Auxiliary Parts | (Note: "++" here refers to basic supporting auxiliary components, subject to actual configuration) | |

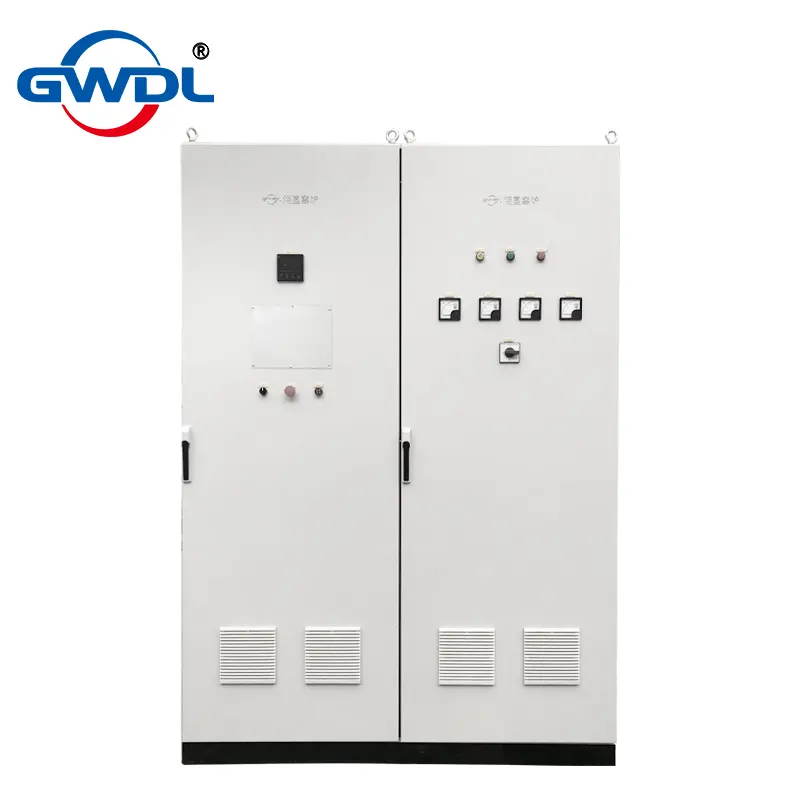

| Control Cabinet | kP cabinet, protection class IP54 | |
| Electrical | Reused Old Parts | Reuse of old furnace parts (including shell modification, electrical control modification; refitted furnace chamber, copper-aluminum busbars and terminals after adjustment of water-cooled electrodes and cables, etc.) |
| Temperature Control Instruments | Yudian brand, 2 sets (for upper and bottom parts respectively) | |
| Over-temperature Alarm | 2 sets | |
| Temperature Communication Conversion | Automatic temperature conversion, using Siemens chip | |
| Transformers | 3 units, 90kw each, total 270kw | |
| Electrical Fittings | Power distribution copper plates, aluminum plates, copper terminals | |
| Thermocouples | Tungsten-rhenium thermocouples | |
| Compensating Conductors | Produced in Chongqing | |
| Voltmeter | Digital display | |
| Ammeter | Digital display | |
| Current Transformers | Accuracy class 0.5s | |
| Cables | Configured according to actual on-site installation requirements | |
| Fast Fuses | 300A | |
| AC Contactors | 300A | |
| SCR (Silicon Controlled Rectifier) | Power regulator, 450A | |
| PLC | Siemens S7-200 series | |
| Touch Screen | 10-inch | |
| Software Programming | Manual programming (including basic control logic and parameter settings) | |
| Radiator | Ventilation window (for cabinet internal heat dissipation) | |
| Axial Flow Fan | Model D150 | |
| Differential Pressure Gauge | Xingyi brand | |

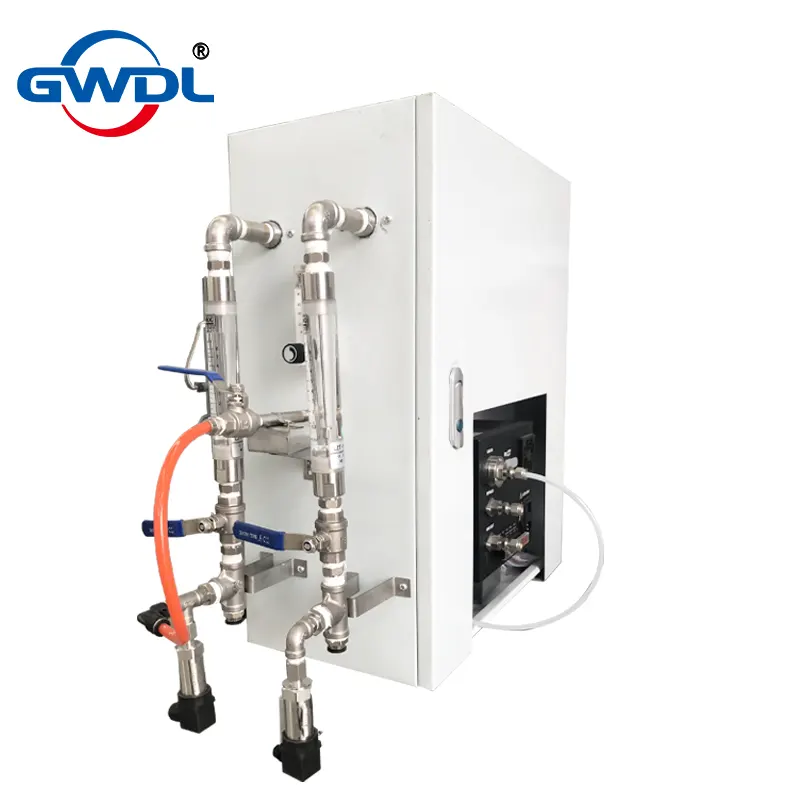

| Inlet Valves and Flow Meters | Specification D22, including 2 flow meters, solenoid valves and other supporting components | |
| Exhaust Port | Equipped with solenoid valve + ignition device (for exhaust safety treatment) | |
| Oxygen Content Sensor | Produced in Shanghai | |
| Bakelite Plates | For electrical installation (used for electrical insulation) | |
| Left and Right Heating Elements | Tungsten rods/molybdenum rods (choose one, configured according to actual needs) | |
| Lower Heating Elements | Tungsten rods/molybdenum rods (choose one, configured according to actual needs) | |
| Rod Fittings | Heating element wiring accessories (for installation and wiring of heating elements) | |
| Auxiliary Materials | Cabinet internal busbars, trunking and other supporting auxiliary materials | |
| Refractory | Alumina Refractory Bricks | Lightweight standard bricks, purity 99.47% |
| High-temperature Energy-saving Furnace Chamber | 1800 Fiber Refractories | 1800℃ ceramic fiber boards (weight determined according to actual needs, unit: KG) |
| Three-layer Alumina Fiber Boards | Weight is 0.8 times that of inner layer fiber boards | |
| Alumina Insulation Cotton | 1350℃ grade, brand KDFIBER | |
| Alumina Blanket | 1550℃ grade, brand KDFIBER | |
| Furnace Door Lifting Mechanism | 1 set | |
| Lifting System | Lifting Control | 1 set (including motor + reducer + frequency converter + mechanical transmission components, realizing furnace body/door lifting control) |
| Other | Material Inlet/Outlet System | (Note: Basic material conveying and positioning components, specific structure to be determined in conjunction with on-site processes) |
