Advanced Corrosion Resistance
- Alumina Chamber Design
High-purity alumina chamber ensures excellent corrosion resistance for halides, fluorides, and aggressive materials. - SiC Heating with Alumina Tube Protection
Silicon carbide heating rods are fully encased in alumina protection tubes, preventing direct contact with vapors and particles.

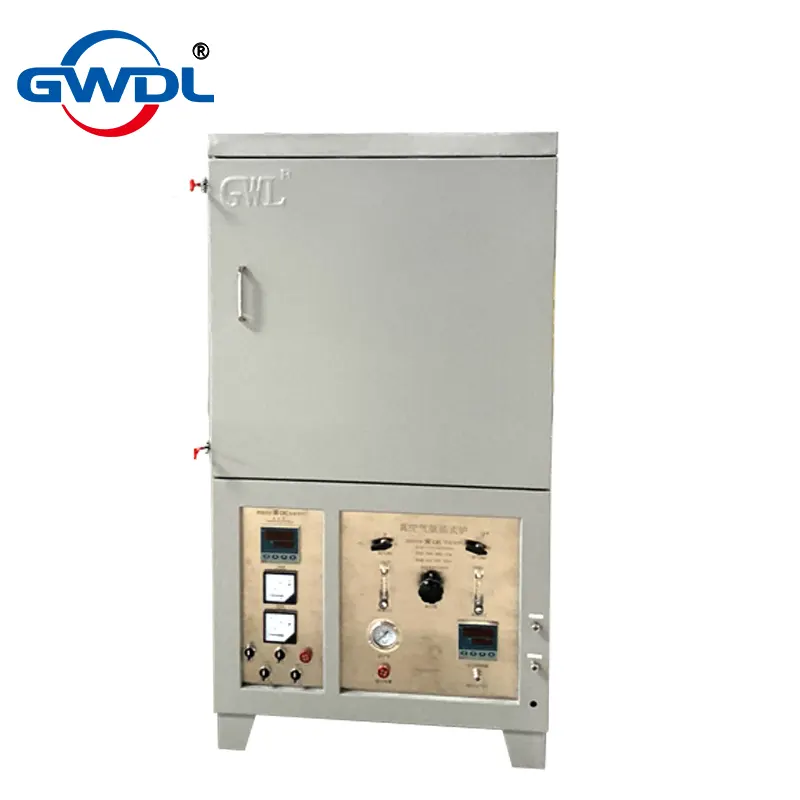

This anti-corrosion vacuum atmosphere furnace is specifically designed for aggressive or reactive material processing at high temperatures.Ideal for battery materials, halide-based compounds, solid-state electrolytes, and R&D applications requiring both high temperature and chemical resistance.
Technical Specification
Power Supply: AC 380V
Rated Operating Temperature: 1250°C
Long-Term Operating Temperature: 1200°C
Control Range: 50°C to 1200°C
Temperature Sensor: K-type thermocouple (0–1320°C range)
Heating Element Configuration:
- U-shaped silicon carbide (SiC) rods mounted on both sides, protected by alumina tubes.
- SiC rods are made from high-purity α-SiC, offering fast heating, high thermal efficiency, long lifespan, and resistance to deformation at high temperatures (up to 1500°C).
Furnace Body:
- CNC-machined, polished, acid-washed, phosphated, and powder-coated for durability.
- Dual-color design with anti-oxidation, acid/alkali resistance, and high-temperature stability.
- Double-layer air-cooled structure ensures safe operation.
Door Mechanism:
- 180° side-hinged opening to prevent arm exposure to high temperatures during loading/unloading.
Cooling System:
- Equipped with imported high-temperature water circulation pump (160°C resistant) and 304 stainless steel reservoir (150–200L capacity).
- Water-cooled sections: furnace mouth, door, and top.
- Multi-channel aluminum heat sink for efficient cooling.
Vacuum System:
- Dual-stage rotary vane vacuum pump with a vacuum range of -0.1 MPa (pointer gauge).
Pressure Resistance:
- 6–20 mm thick steel shell with double-sided welding, withstands ±0.1 MPa pressure.
Gas Control:
- Imported stainless steel valves, dual ball flow meters (upgradable to digital mass flow meters).
- Pressure protection: Electromechanical pressure sensor triggers alarms and vents excess pressure.
- Optional gas leak detection (H₂, N₂, Ar, CO, O₂, etc.) with automatic shutdown.
Refractory & Insulation:
- High-purity alumina lining.
- Triple-layer insulation: alumina silicate board + alumina fiber board + polycrystalline alumina fiber board.
- Exterior temperature remains below 45°C during continuous operation.
Safety & Controls:
- Integrated module with dual-loop protection (overcurrent, phase loss, overvoltage, thermocouple failure, etc.).
- SCR-based closed-loop control with soft-start, constant voltage/current/power modes.
Display & Interface:
- Real-time monitoring: temperature, segment time, power output, voltage, current.
- High-durability LED-backlit buttons (100,000+ cycles).
Programmable Curves:
- 30-segment (expandable to 50) PID/APID/MPT control with self-tuning.
- Supports multi-curve input and slope-adjustable ramping (40°C/min max; 1°C/h min).
Communication:
- RS485 interface (1200 m range) for PC remote control, data logging, and curve editing.
Included Accessories:
- 2 SiC heating rods, fixtures, furnace door insulation plug (for ≥1200°C models), crucible tongs, high-temperature gloves.
Warranty:
- 1 year for furnace; 3 months for heating elements.
Optional Upgrades:
- Crucibles, setters, alumina/SiC trays.
- PC control software/hardware.
- Touchscreen temperature controller.
Usage Notes:
- Recommended ramp rate: 10–20°C/min to prolong element life.
- Minor furnace cracks over time are normal (repairable with alumina coating).
- Avoid liquid spills; use trays or alumina powder as barriers.
- Install in well-ventilated, dry areas.
