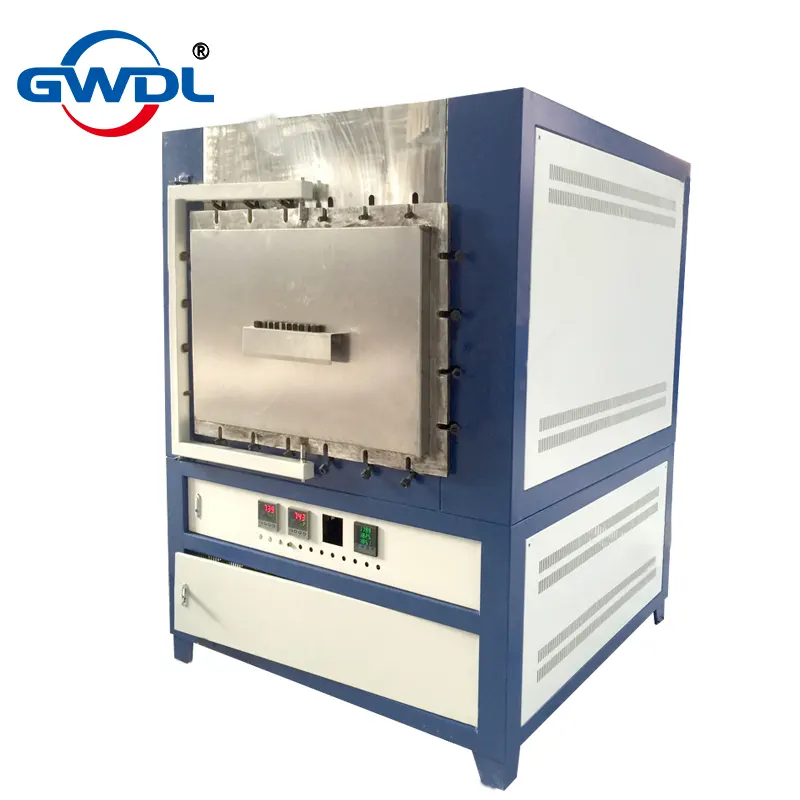

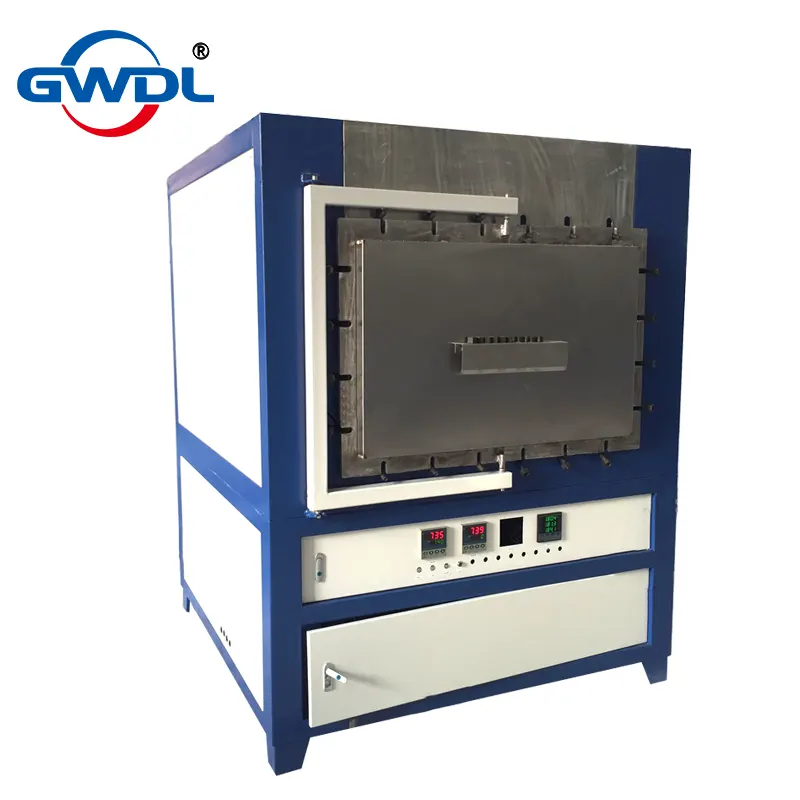

Water-Free Corrosion-Resistant Vacuum Atmosphere Box Furnace

Product Overview

The GWDL-ZQLB Series corrosion-resistant vacuum atmosphere furnace is designed for high-performance thermal processes without requiring water-cooling. By increasing the thickness of the insulation layer and using high-efficiency thermal materials, the furnace maintains optimal exterior temperatures (≤40°C), even under maximum operating temperature conditions. This makes it ideal for sensitive laboratory environments and industrial settings where water circulation is unavailable or undesired.

GWDLTHERMO supports full customization to meet your specific process, space, and material requirements. We’re committed to delivering intelligent, safe, and user-friendly thermal solutions.

Key Features

• No Water Cooling Required
  Thanks to reinforced insulation and advanced material engineering, the furnace operates safely without external water cooling. Built-in air-cooled double-layer casing ensures excellent thermal management.
• High-Performance Insulation
  The chamber is lined with vacuum-formed high-purity alumina lightweight refractory materials. It offers:
  • High working temperature
  • Low thermal mass
  • Excellent thermal shock resistance
  • Crack-free, dust-free, long service life
  • Energy savings >60% compared to traditional furnaces
• Corrosion-Resistant & Vacuum-Ready
  Designed for corrosive material environments, including halide electrolytes and volatile compounds. Suitable for operation under vacuum or inert gas (N₂, Ar, etc.).
• Integrated System Design
  Combines:
  • Temperature control system
  • Vacuum chamber
  • Vacuum pump
  • Gas pipeline system
  • Positive/negative pressure display
  • Flow control system
  • Air-tight structure
  • Circulation pump and water tank (air-cooled version optional)
• Advanced Heating Elements
  Equipped with U-shaped, equal-diameter silicon carbide (SiC) rods, offering fast and stable heating performance in corrosive atmospheres.
• Smart Control Interface

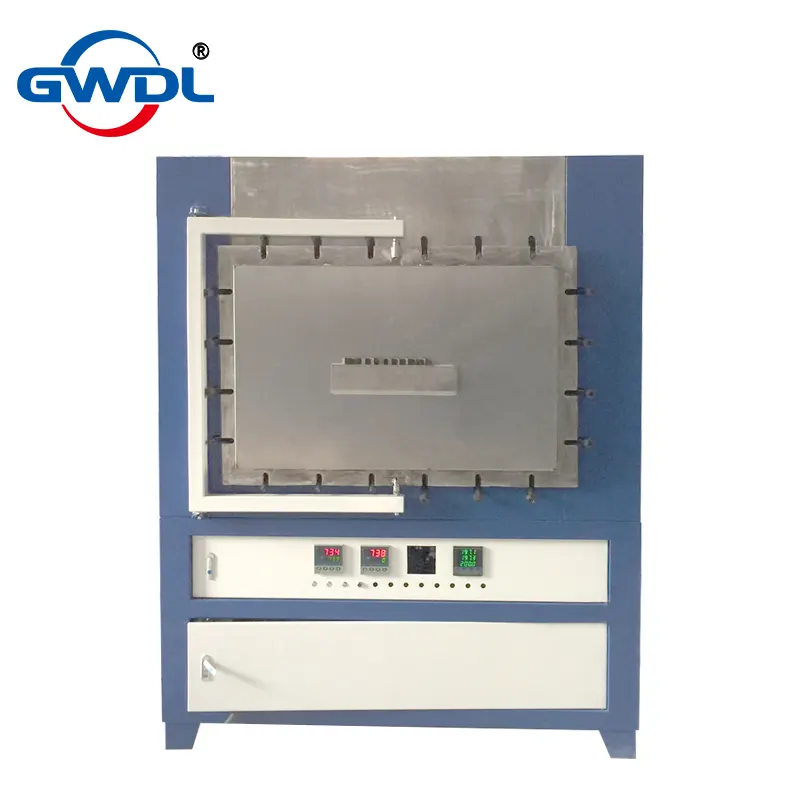

  The front panel includes:
  • Programmable PID temperature controller
  • Heating ON/OFF button
  • Voltage/current meters
  • Vacuum pump control
  • Flow meter for gas input
  • Positive/negative pressure gauges
  • Contact pressure gauge
  • Emergency valves
  • Computer interface for data logging and remote control
• Flexible Program Control
  • Programmable multi-segment heating profiles
  • Real-time parameter adjustment
  • High stability:
    • Temperature control accuracy: ±1°C (no overshoot)
    • Constant temp accuracy: ±1°C
    • Max heating rate: ≤45°C/min

Available in Stock

Notes:

1. Custom chamber sizes are available upon request (lead time: 17–30 days).
2. All dimensions are in millimeters (mm). Dimensions listed are for reference only; actual size may vary slightly upon delivery.
