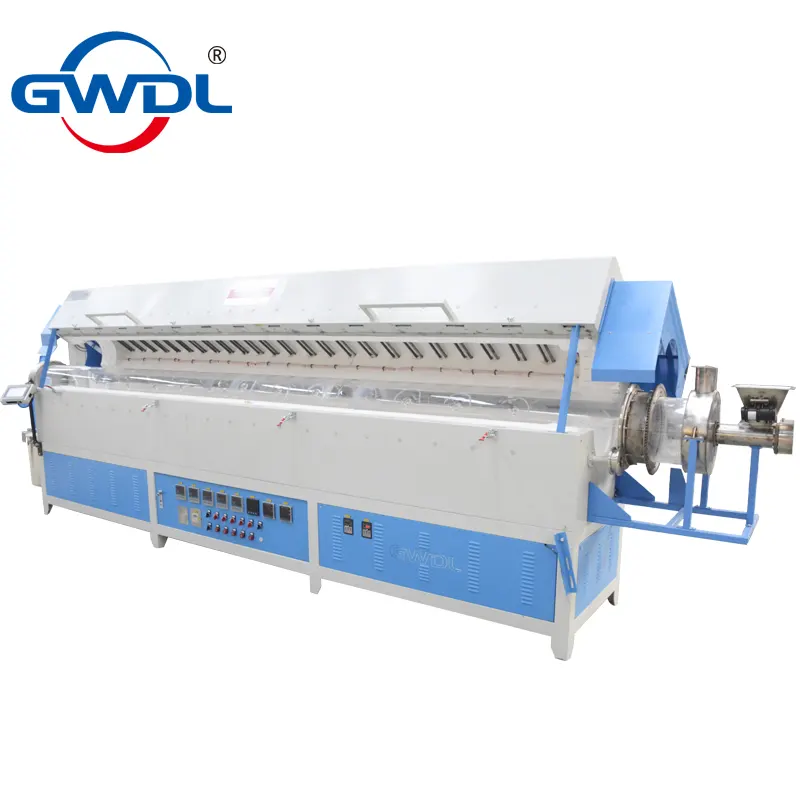

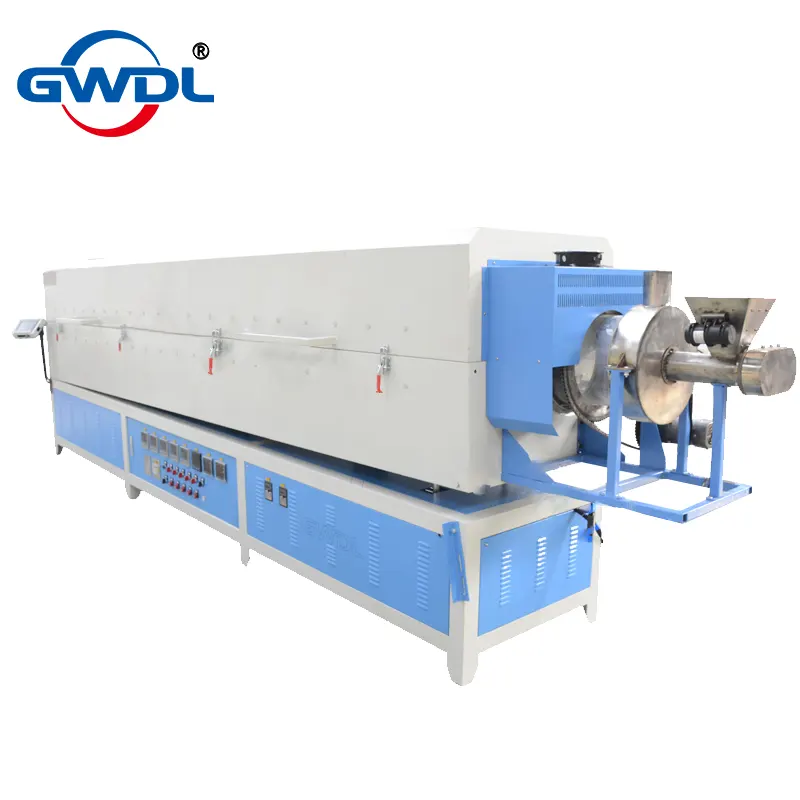

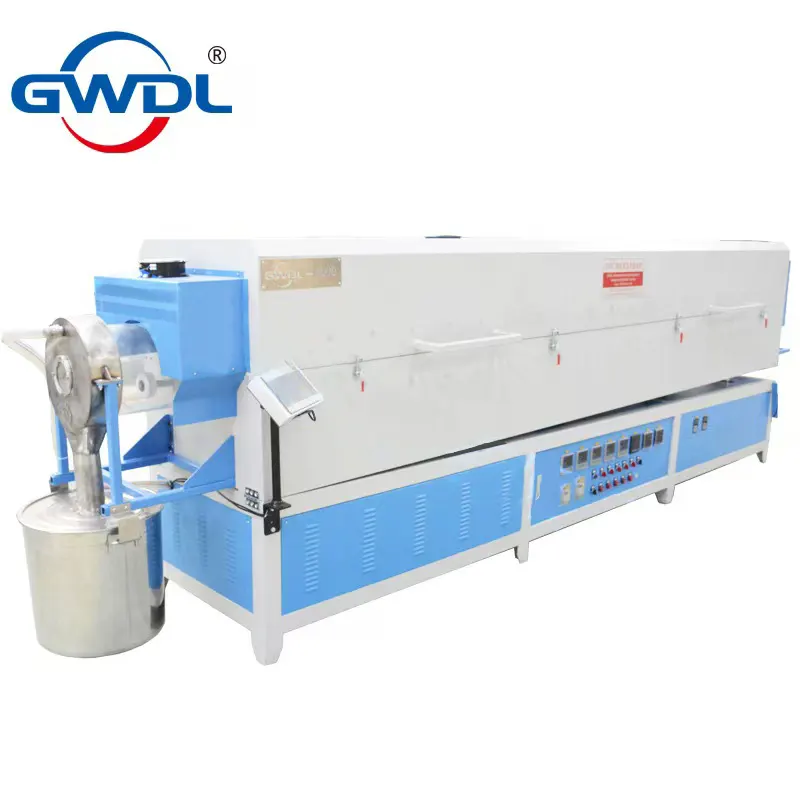

Long-Term Operation Tube Furnace; Sealed Air Valves at Both Ends of Furnace Tube; Adjustable Air Intake; For High-Temperature Heating

Technical Parameters

Power Supply: AC 380V
Long-Term Operating Temperature: 1000℃
Control Range: 50–1300℃
Temperature Measurement Element: K-type thermocouple, temperature measurement range: 0–1300℃
Heating Element Installation Position: Above and below the furnace tube
Rotation Speed: Adjustable, 1–3 r/min
Furnace Tube Tilt Angle: Adjustable, 0–3°
Temperature Control Accuracy: ±1℃ (controlled by integrated circuit, no overshoot)
Furnace Tube Sealing: Simple sealing at both ends of the furnace tube using high-temperature silicone rubber
Air Intake: The electric furnace is equipped with an air intake blower and a manual adjustable air valve for air intake, enabling adjustment of the air intake inside the tube.
Air Inlet & Outlet: One air inlet (with a diameter of 100mm) is installed at each end of the furnace tube, each equipped with an air valve
