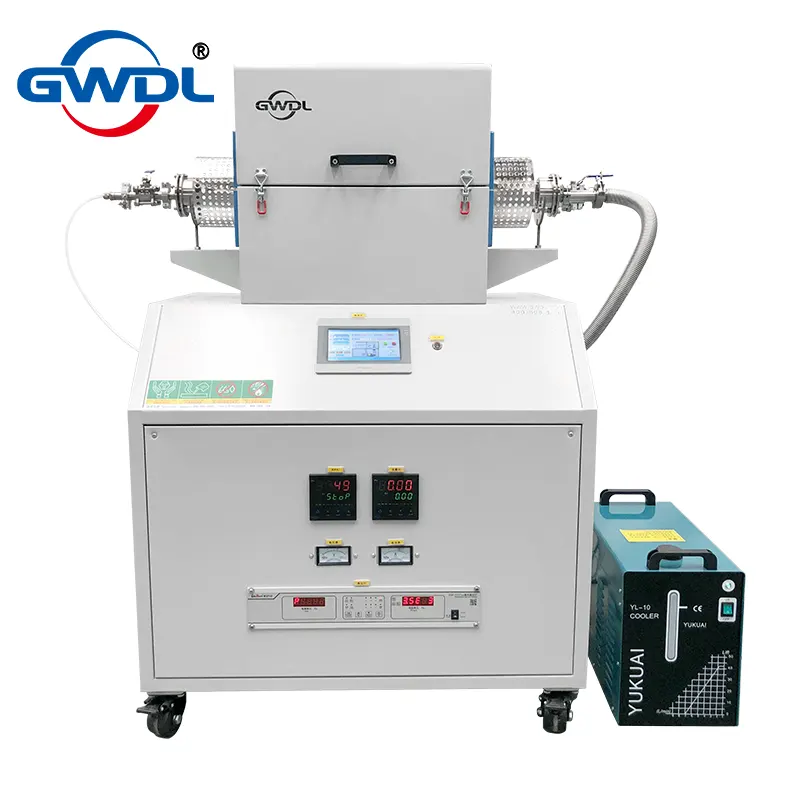

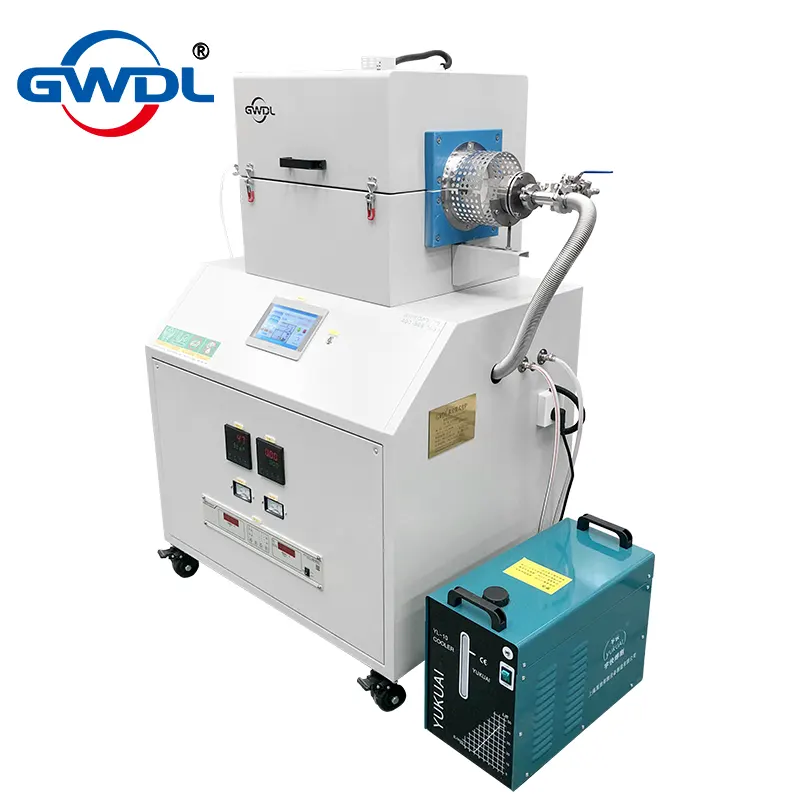

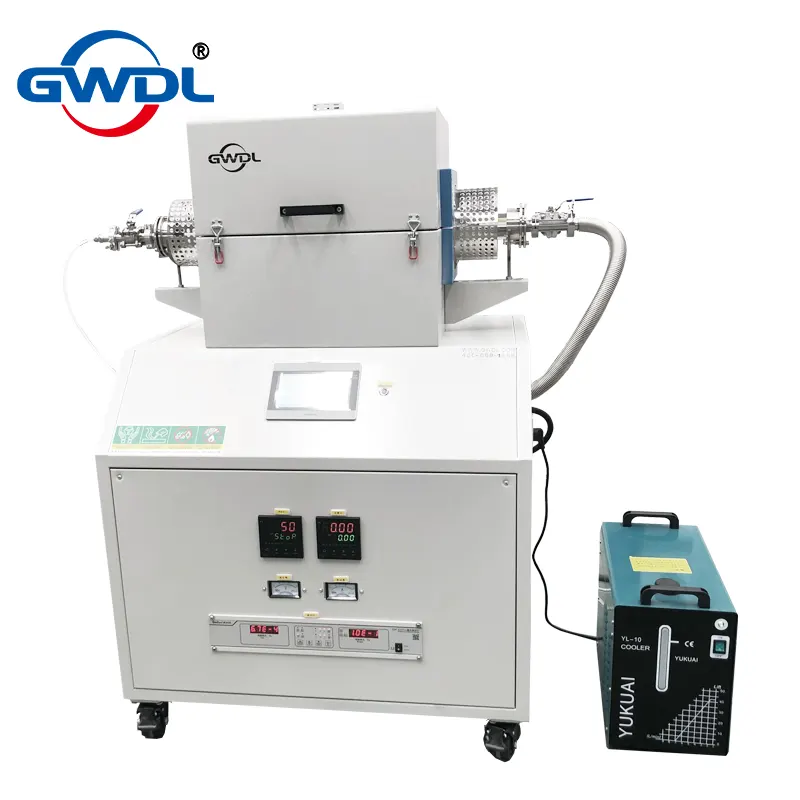

1200℃ Open-Type Vacuum Tube Furnace

I. Applications

Widely used in fields such as ceramics, metallurgy, electronics, glass, chemical engineering, machinery, refractory materials, new material development, special materials, and building materials.

II. Features    The furnace chamber is openable.

1. Control Accuracy: ±1℃; Furnace Temperature Uniformity: ±1℃ (depending on the size of the heating chamber).
2. Easy Operation: Programmable with PID self-tuning, automatic heating, automatic heat preservation, and automatic cooling—no attendance required. An optional computer communication function is available, allowing furnace operation via a computer (e.g., starting/stopping the furnace, pausing heating, setting heating curves, storing heating curves, viewing historical curves, etc.). The software is free of charge; for details, see Computer Control System.
3. The furnace tube is made of quartz glass.
4. Pure titanium metal flange sealing (double rubber rings).
5. The furnace body temperature is close to room temperature.
6. Double-circuit protection.
7. Imported refractory materials, featuring excellent thermal insulation performance and high temperature resistance.
8. Maximum vacuum degree: 10⁻⁴Pa (standard scientific notation).
9. Compatible with multiple gases (e.g., oxygen, nitrogen, argon, hydrogen, etc.).
10. Temperature Category: 1200℃
