12m Long Large Rotary Tube Furnace with 5-Zone Precise Temperature Control

GWDL-1050SSR Large Rotary Tube Furnace

Overview

The GWDL-1050SSR is engineered for demanding industrial applications requiring high precision and uniform heating of powders and bulk materials. It features a 12-meter-long heating zone divided into 5 independently controlled temperature zones to guarantee optimal process conditions. The furnace design integrates corrosion-resistant 310S stainless steel tubes, advanced silicon carbide heating elements, and high-purity alumina fiberboard insulation to ensure durability, energy efficiency, and safety.

Technical Parameters

Design Advantages

• Precise multi-zone temperature control for stable and uniform heating of sensitive materials.
• Long heating zone (12 meters) to ensure extended residence time and thorough processing.
• Robust 310S stainless steel furnace tube resists corrosion and high-temperature oxidation.
• Durable silicon carbide heating rods provide efficient and long-lasting heat generation.
• Adjustable furnace inclination (0-3°) optimizes material flow.

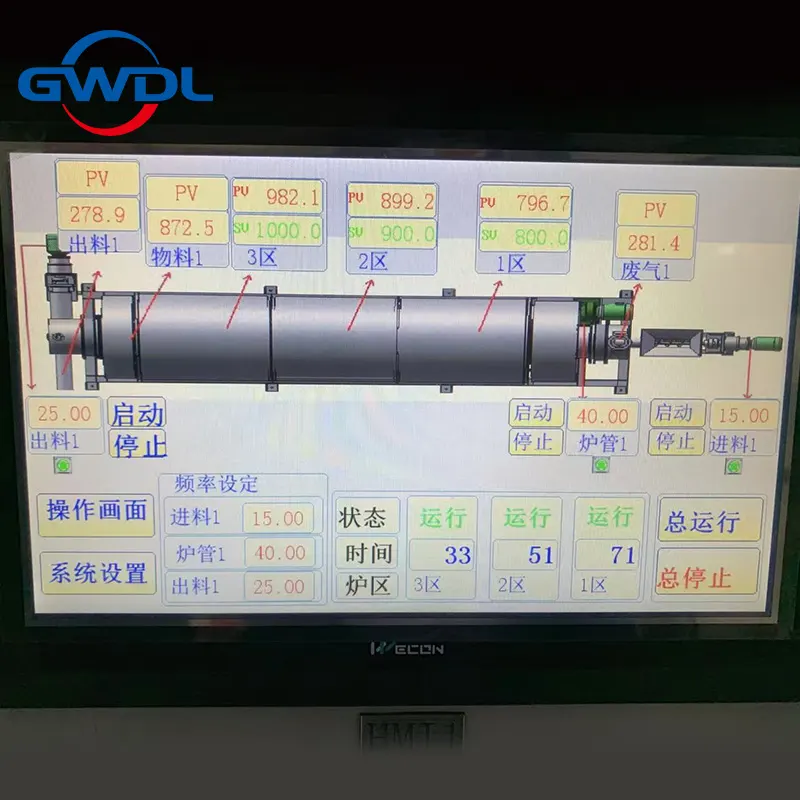

• Advanced touchscreen control system allows easy operation, real-time monitoring, and data logging.
• High-quality sealing with graphite gaskets prevents gas leakage and maintains process atmosphere.
• Safe operation with surface temperature below 45℃ and superior refractory insulation.

Typical Applications

• Powder metallurgy sintering
• Ceramic material processing
• Chemical synthesis reactions
• Glass and refractory material treatments
• New material R&D and industrial production
