Overview

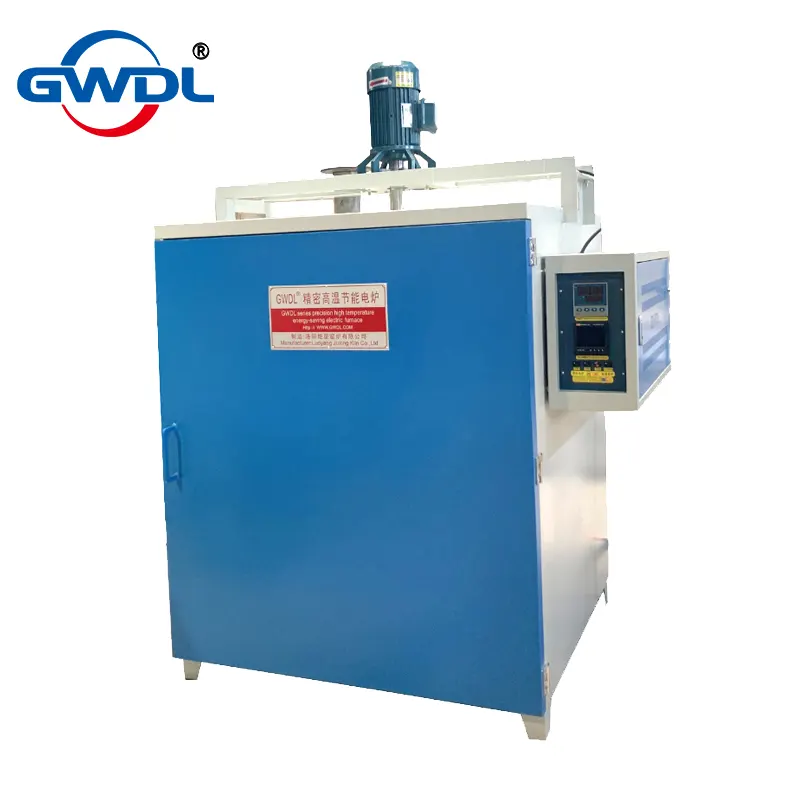

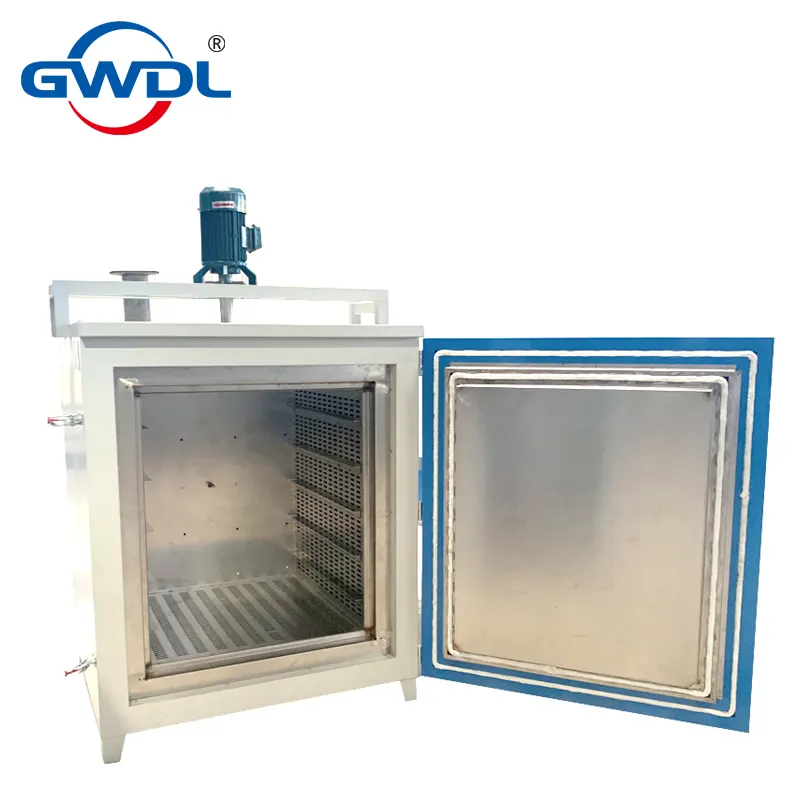

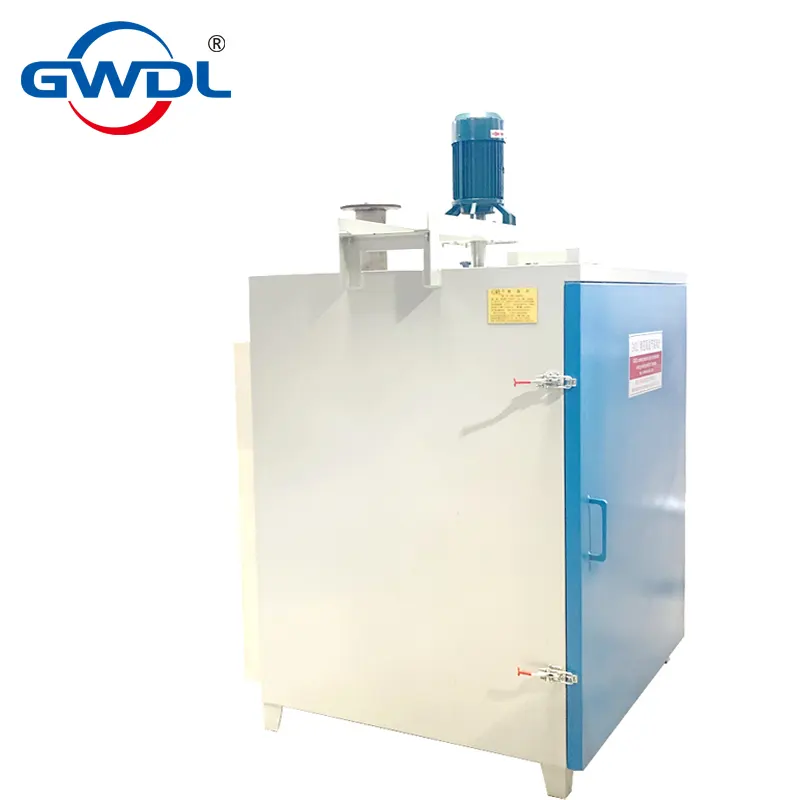

The GWL-800 Ceramic Debinding / Dewaxing Furnace is specifically designed for ceramic, powder metallurgy, and MIM industries to remove binders and waxes from green compacts in a controlled and safe environment.
With precise temperature control, multi-directional air circulation, and an integrated exhaust treatment system, it ensures uniform heating, crack-free parts, and environmentally safe exhaust management.
Key Advantages for Debinding / Dewaxing
- Wide Temperature Range (RT ~ 850℃): Covers all binder decomposition needs, ensuring complete removal of waxes and polymers.
- High Precision Control: ±1℃ stability prevents sudden reactions and product defects.
- Excellent Temperature Uniformity (≤±10℃): Multi-directional forced convection airflow avoids local overheating and ensures consistent results.
- Adjustable Heating Power (1–24 KW): Flexible power output supports slow, programmable heating curves critical for debinding safety.
- Exhaust Gas Treatment (1–5 KW adjustable): Integrated system decomposes hazardous organic vapors into CO₂ and H₂O, meeting environmental standards.
- Strong Structure: 310S stainless steel bottom frame ensures durability under corrosive exhaust conditions.
- Safe & Energy-Efficient: Double-layer insulation keeps surface temperature ≤ ambient +30℃, providing operator safety and reducing heat loss.
Technical Specifications (Model: GWL-800)
- Working Chamber Size: 700×850×1000 mm
- Usable Space: 600×750×880 mm
- External Dimensions (Approx.): 1180×1700×2030 mm
- Temperature Range: RT ~ 850℃ (adjustable)
- Temperature Fluctuation: ≤ ±1℃
- Temperature Uniformity: ≤ ±10℃ (empty furnace)
- Heating Rate: ≤ 10℃/min (empty load, adjustable for slow heating)
- Exhaust Treatment Power: 1–5 KW adjustable
- Power Supply: 380V, 3-phase, 50Hz
- Total Power: 29 KW (Heating 1–24 KW adjustable, Exhaust 1–5 KW adjustable)
- Air Circulation: Forced convection from top, bottom, left, and right
- Furnace Shell Temp.: ≤ Ambient +30℃ (excluding door edges)
- Support Frame: 310S stainless steel, high heat and corrosion resistance
Applications
- Ceramic Industry: Wax removal in advanced ceramic parts
- Powder Metallurgy & MIM: Debinding of binder-containing compacts before sintering
- Refractory & Glass Materials: Pre-treatment of molded components
- Special Materials: Processing of green parts requiring defect-free binder removal
