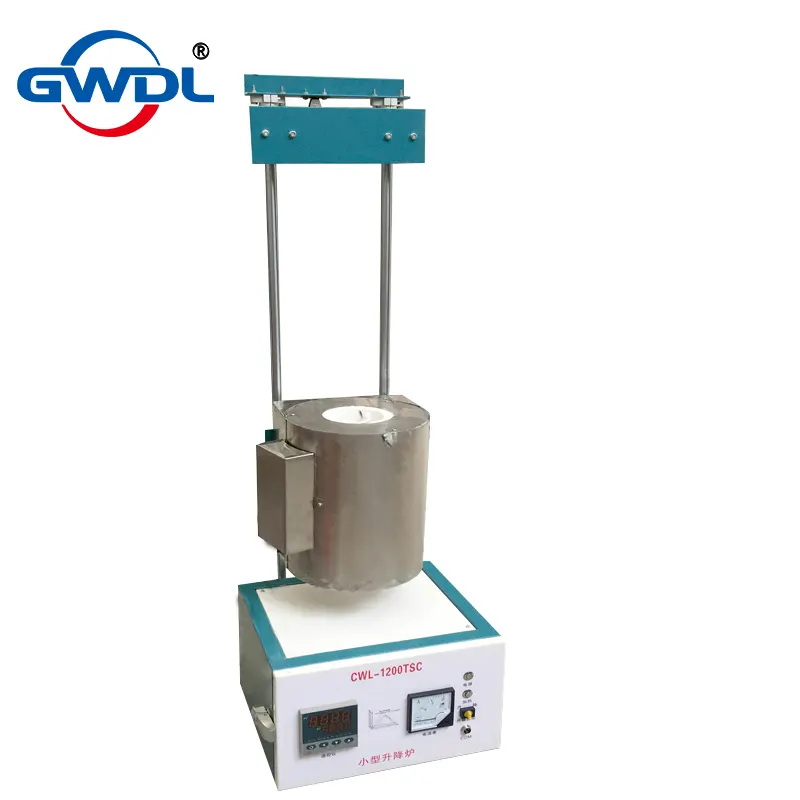

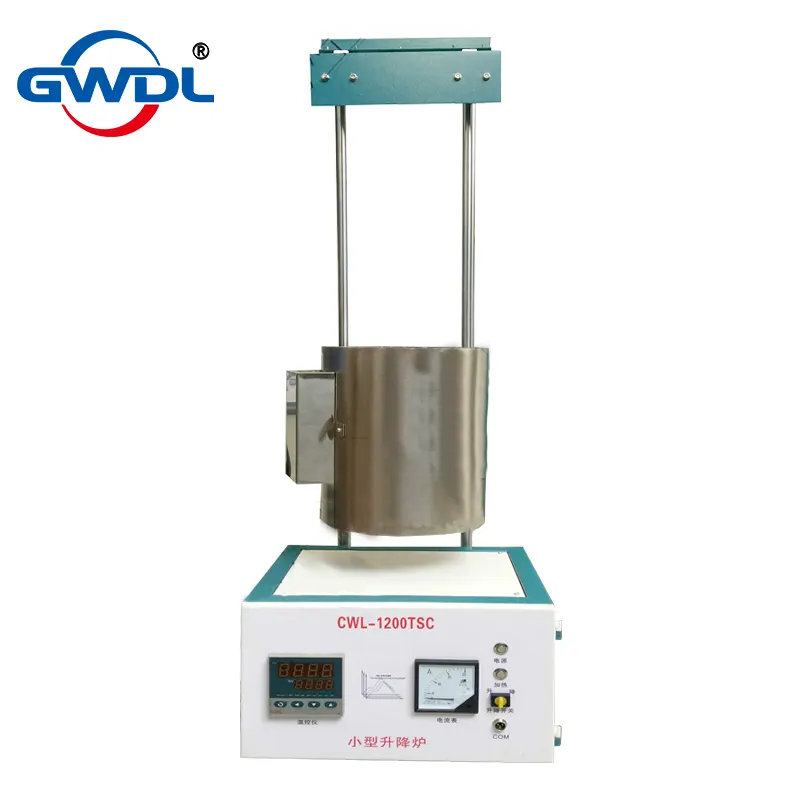

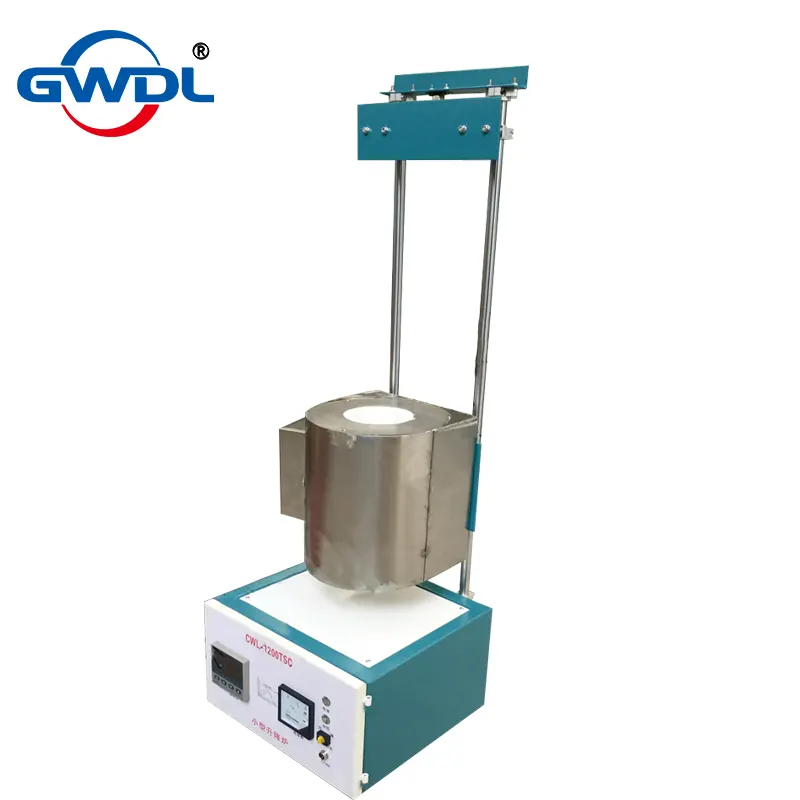

1200℃ tubular lifting furnace: silicon carbide rod heating, uniform temperature field (±1℃), programmable temperature control, and air-cooled furnace body for safety.

Technical Indicators of Tubular Lifting Furnace

Temperature	1200℃	1400℃	1600℃	1700℃	1800℃
Voltage (AC)	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Maximum Operating Temperature	1250℃	1450℃	1650℃	1730℃	1820℃
Long-term Operating Temperature	1200℃	1400℃	1600℃	1700℃	1800℃
Temperature Control Accuracy	±1℃
Temperature Uniformity in Furnace	±1℃
Temperature Control Points	1
Temperature Measurement Element and Range	Platinum-rhodium S thermocouple, 0-1700℃	Platinum-rhodium S thermocouple, 0-1700℃	Platinum-rhodium-platinum B thermocouple, 0-1820℃	Platinum-rhodium-platinum B thermocouple, 0-1820℃	Platinum-rhodium-platinum thermocouple or fiber optic infrared temperature measurement
Touchscreen Full Control	- Item Name	Parameters
	- Size	7-inch, 10-inch, 14-inch TFT true color
	- Overall Dimensions	206W×156H×50D (mm), 280W×200H×50D (mm)
	- Resolution	800×480
	- Backlight	LED
	- Power	5W
	- Weight	1Kg
	- Language	Chinese/English (switchable)
	- Full-screen Display and Operation	Instrument screen, (light column graph), historical trends, data reports, alarm information, data export, process flow, system management, etc.
	- Control Object	Temperature
	- Number of Furnaces Controlled	1-6 units
	- Temperature Control	Touchscreen + high-precision integrated module
	- Start Heating	Touch operation, supports wireless mouse
	- Pause Heating
	- Stop Heating
	- Rotating Table In/Out
	- Rotating Table Lifting
	- Start, Pause, Stop, Programming, etc.
	- Flow Chart	Compiled according to furnace structure or product process flow
	- Temperature Curve Programming	Touch operation, 30 segments per curve
	- Number of Stored Temperature Curves	Unlimited (each curve can be named in Chinese/English)
	- Real-time Status Display	Running curve name, running segment number, segment time, segment running time, digital temperature, real-time curve, power output percentage
	- Start from Selected Segment (Cross-segment Start)	Touch operation
	- Curve Range	Adjustable
	- Historical Curves (Graph + Text)	Approximately 30 months of storage
	- Data Reports (EXCEL)	Approximately 30 months of storage, multi-point display (expandable via USB drive)
	- Interval for Historical Curves/Reports Storage	Adjustable 1-3600 seconds, multi-point display (expandable via USB drive)
	- Alarm Indication	Color change (red)
	- Alarm Information Language	Chinese display (alarm time and event description in Chinese)
	- Data Export Interface	USB
	- Printer Interface	Parallel port
	- Touchscreen Operation Protection	With password setting (unauthorized operation prohibited without password)
	- Communication Port	RS485
Heating Rate	Adjustable from 1℃/h to 40℃/min
Heating Elements	Silicon carbide rods	Silicon carbide rods	Type 1800 silicon molybdenum rods	Type 1800 silicon molybdenum rods	Type 1900 silicon molybdenum rods/tungsten wires/graphite
Installation Position and Method of Heating Elements	Vertically installed around the furnace chamber
Refractory Material	High-purity alumina zirconium-containing fiberboard	High-purity alumina zirconium-containing fiberboard	Imported high-purity alumina fiberboard	Imported Morgan lightweight material	Imported high-purity Morgan lightweight material
Loading Table Lifting	Electric lifting, can stop at any point during lifting
Cooling Structure	Double-layer furnace shell, air-cooled
Furnace Body Temperature	≤45℃
Computer Interface	RS485, RS232, USB

Furnace Chamber Dimensions (mm)	Voltage	Power (KW)	Weight (Kg)	Control Accuracy	Temperature Uniformity in Furnace	Overall Dimensions (mm)
Diameter 100×100	220V	1.8	75	±1℃	±1℃	590×400×920
Diameter 120×120	220V	2	85	±1℃	±1℃	590×400×920
Diameter 250×300	380V	10	180	±1℃	±1℃	750×550×1200

List of Optional Additional Functions

Name	Function Introduction		Function Code
Temperature Controller	Standard 50-segment heating curve, optional imported controller (B)	Choose one out of two.	AB
Touch Screen	Chinese menu, multi-curve storage, historical data recording (7-inch)	Choose one out of two.	C
IoT Interface	RS485 communication for real-time data access (start/pause/stop/curves/timing)		D
Computer Control System	PC software for full furnace control (start/stop/curve setting/data logging). Supports data recording (1s-1h intervals), parameter adjustment, and long-term storage.		E
PLC Control	Siemens PLC (controls heating curves, atmosphere, flow rates, power). Open ports for upstream/downstream equipment integration.		F
Observation Window	High-temperature quartz glass window on furnace door		H
Gas Inlet	Float flow meter + manual valve (selectable flow range/gas type)	Choose one out of two.	K
Gas Inlet	Digital mass flow controller (selectable flow range/gas type)	Choose one out of two.	M
Exhaust	Manual exhaust valve	Choose one out of two.	T
Exhaust	Automatic electric valve (program-controlled by heating curve segments)	Choose one out of two.	P
Full Auto Gas Control	PLC-controlled electric valves synchronized with heating curves (requires touch screen option)		Y
Casters	2 swivel + 2 fixed wheels		R
Rapid Cooling	Program-controlled cooling with inverter + centrifugal fan		N
Multi-zone Control	+10% cost per additional heating zone, +20% for independent control		X
Stirring Fan	Metal fan (<1050°C):-4000; Inverter: -1500-2000; PLC-auto control: -4000		Z
Separate Control Cabinet	Independent cabinet (1600×600×400mm) with 5m control cables		Q
Heat-storage Base	50mm recessed hollow base with multi-point support (+5% cost)		W
Exhaust Treatment	VOC treatment furnace (40m³/h or 80m³/h options)		V
Corrosion-resistant Chamber	Acid/alkali/HF-resistant materials		G
Heating Element Protection	Protective features against powder contamination and vapor corrosion		L
Clean Chamber	Ceramic/glass/metal lining to prevent dust/vapor contamination		J
