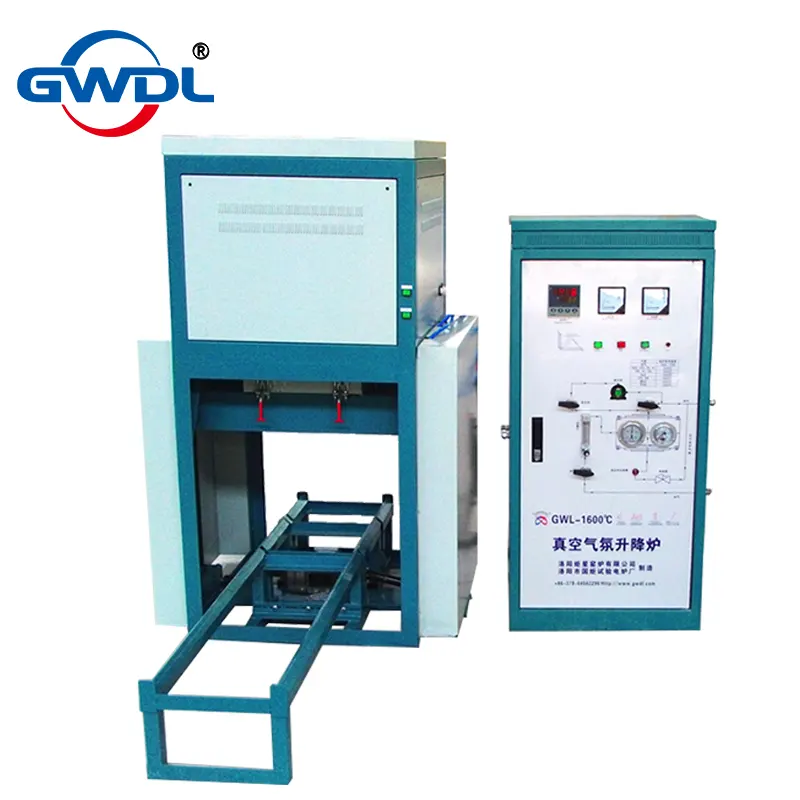

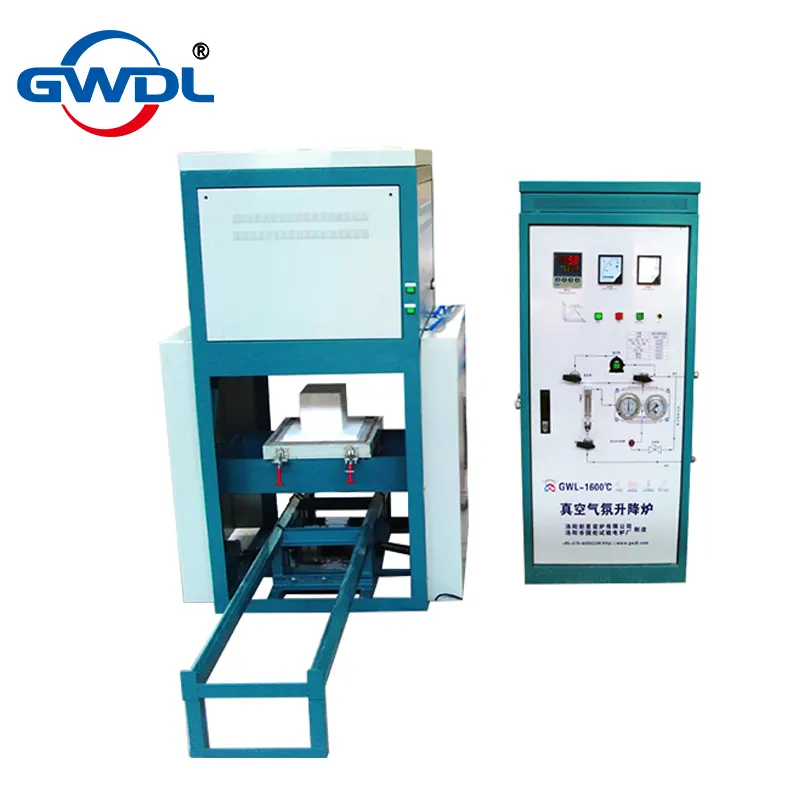

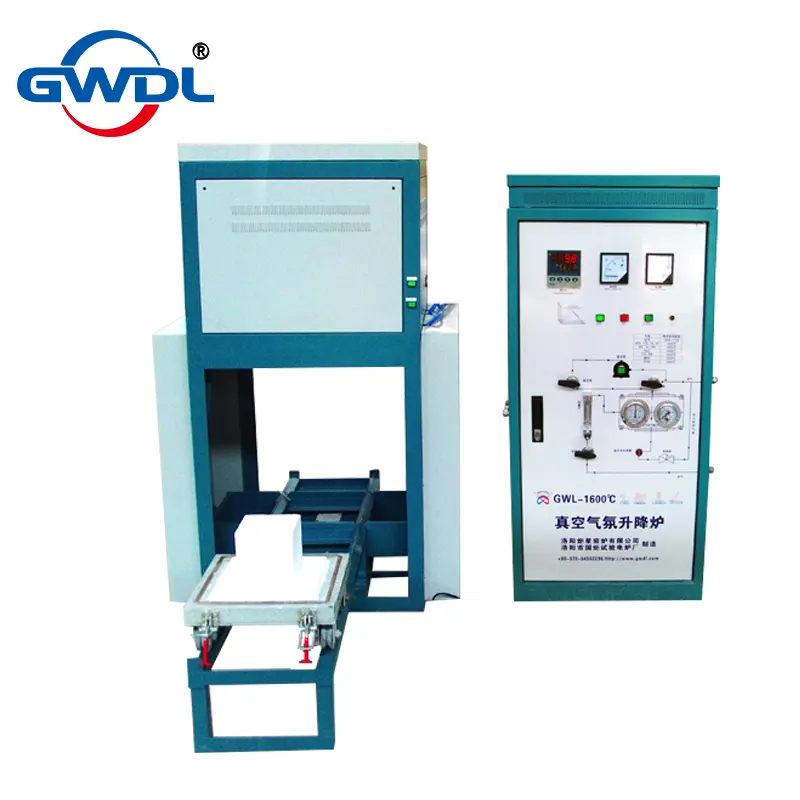

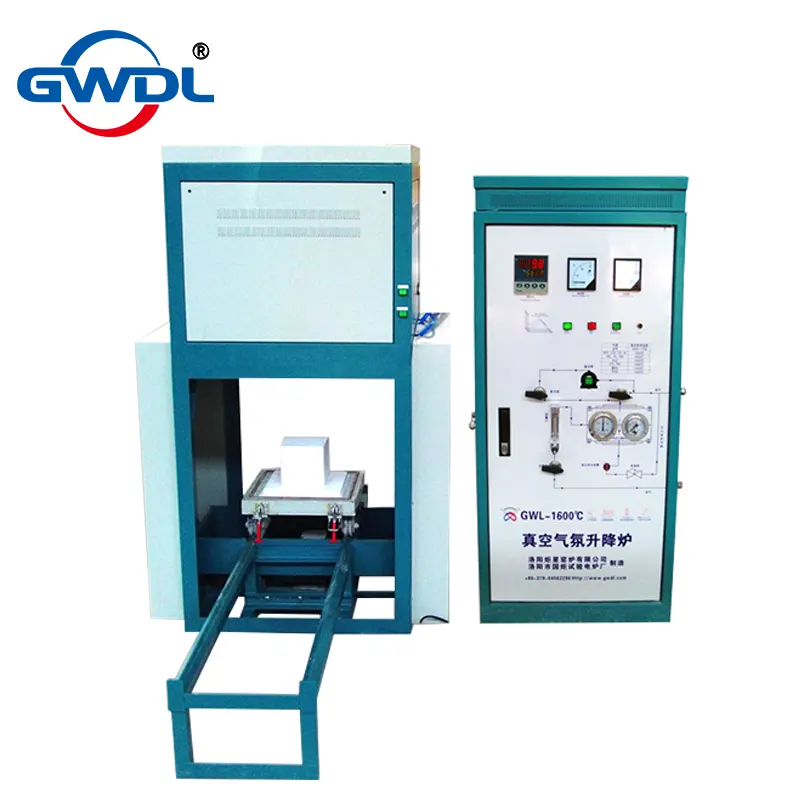

Vacuum atmosphere lifting (lead screw) electric furnace operates at 1200°C for long-term use, with a maximum temperature reaching 1250°C. Both the temperature control accuracy and uniformity are ±1°C. The lead screw lifting loading platform has a load capacity of 0.1-10 tons, supports 50-segment programming, can achieve a vacuum degree of -0.1MPa, and allows for multiple gas atmospheres, making it suitable for high-temperature experimental needs.
| Temperature | 1200℃ |
| Voltage (AC) | 220V/380V |
| Maximum Operating Temperature | 1250℃ |
| Long-term Operating Temperature | 1200℃ |
| Temperature Control Precision | ±1℃ |
| Voltage | 380V/220V |
| Power | 6KW |
| Temperature Field Uniformity in Furnace | ±1℃ (depending on the size of the heating chamber); multi-point temperature control can be adopted for higher requirements |
| Temperature Measuring Element and Measuring Range | Platinum-rhodium S, measuring range 0-1700℃ |
| Number of Programming Curve Segments | Fully automatic heating, cooling and heat preservation; 50 segments for one group, 22 segments for two groups, 8 segments for three groups |
| Communication | USB. The electric furnace can be controlled via computer for starting, pausing, stopping, heating, cooling, temperature curve setting, historical reports, etc. |
| Heating Rate | Adjustable from 1℃/h to 40℃/min |
| Heating Elements | Silicon carbide rods |
| Installation Position and Method of Heating Elements | Vertically installed around the inner wall of the furnace chamber |
| Refractory Materials | High-purity alumina zirconium-containing fiberboard |
| Loading Capacity of Platform | 0.1-10 tons (customizable) |
| Lifting Mechanism | Lead screw lifting |
| Loading Platform In/Out | Manual/electric |
| Lifting and In/Out Control | Fully controlled by PLC |
| Cooling Structure | Double-layer furnace shell, air cooling + water cooling |
| Water Cooling | Equipped with a circulating water pump and a circulating water tank (500 liters) |
| Water-cooled Parts | Furnace door, furnace mouth, furnace top |
| Vacuum Pump | Two-stage rotary vane pump |
| Vacuum Value (Vacuum Gauge) | -0.1MPa |
| Applicable Atmospheres | Hydrogen, nitrogen, argon, carbon monoxide, oxygen, etc. |
| Gas Pressure Protection | To prevent dangers caused by the closure or blockage of the exhaust port in the furnace and excessive pressure in the furnace tube, this system is specially designed. Principle: Signals are obtained by an electric contact pressure gauge or pressure sensor, which drive the control module to close the electromagnetic intake valve and start the electromagnetic exhaust valve and alarm, so as to protect the normal operation of the electric furnace. |
| Furnace Body Temperature | ≤45℃ |
| Computer Interfaces | RS485, RS232, USB |
| Warranty Scope and Period | The furnace is covered by a 1-year free warranty; heating elements are not covered. |
| Name | Function Introduction | Function Code | |
| Temperature Controller | Standard 50-segment heating curve, optional imported controller (B) | Choose one out of two. | AB |
| Touch Screen | Chinese menu, multi-curve storage, historical data recording (7-inch) | Choose one out of two. | C |
| IoT Interface | RS485 communication for real-time data access (start/pause/stop/curves/timing) | D | |
| Computer Control System | PC software for full furnace control (start/stop/curve setting/data logging). Supports data recording (1s-1h intervals), parameter adjustment, and long-term storage. | E | |
| PLC Control | Siemens PLC (controls heating curves, atmosphere, flow rates, power). Open ports for upstream/downstream equipment integration. | F | |
| Observation Window | High-temperature quartz glass window on furnace door | H | |
| Gas Inlet | Float flow meter + manual valve (selectable flow range/gas type) | Choose one out of two. | K |
| Digital mass flow controller (selectable flow range/gas type) | M | ||
| Exhaust | Manual exhaust valve | Choose one out of two. | T |
| Automatic electric valve (program-controlled by heating curve segments) | P | ||
| Full Auto Gas Control | PLC-controlled electric valves synchronized with heating curves (requires touch screen option) | Y | |
| Casters | 2 swivel + 2 fixed wheels | R | |
| Rapid Cooling | Program-controlled cooling with inverter + centrifugal fan | N | |
| Multi-zone Control | +10% cost per additional heating zone, +20% for independent control | X | |
| Stirring Fan | Metal fan (<1050°C):-4000; Inverter: -1500-2000; PLC-auto control: -4000 | Z | |
| Separate Control Cabinet | Independent cabinet (1600×600×400mm) with 5m control cables | Q | |
| Heat-storage Base | 50mm recessed hollow base with multi-point support (+5% cost) | W | |
| Exhaust Treatment | VOC treatment furnace (40m³/h or 80m³/h options) | V | |
| Corrosion-resistant Chamber | Acid/alkali/HF-resistant materials | G | |
| Heating Element Protection | Protective features against powder contamination and vapor corrosion | L | |
| Clean Chamber | Ceramic/glass/metal lining to prevent dust/vapor contamination | J | |
