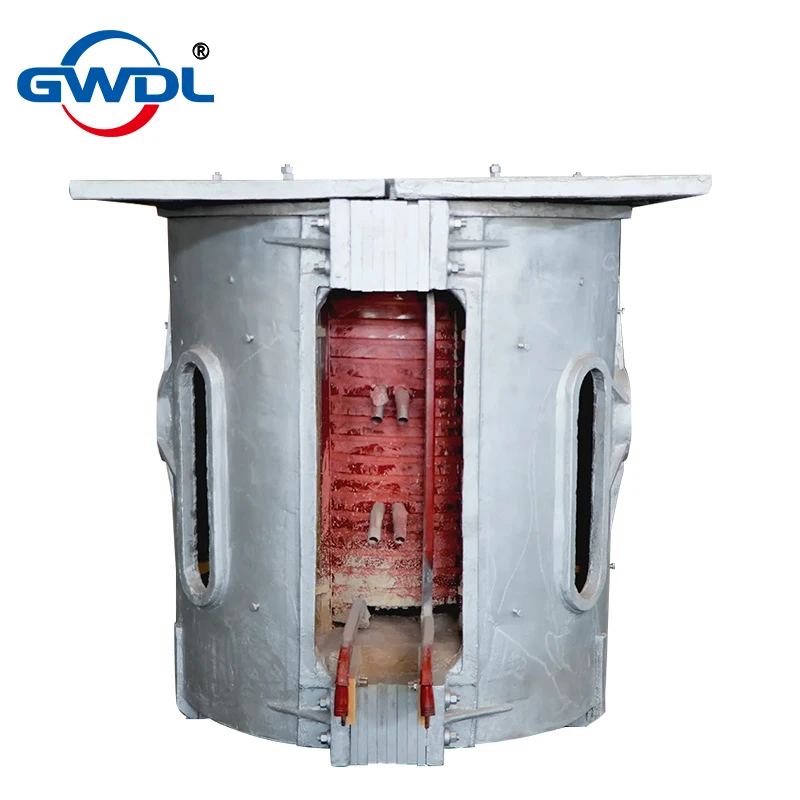

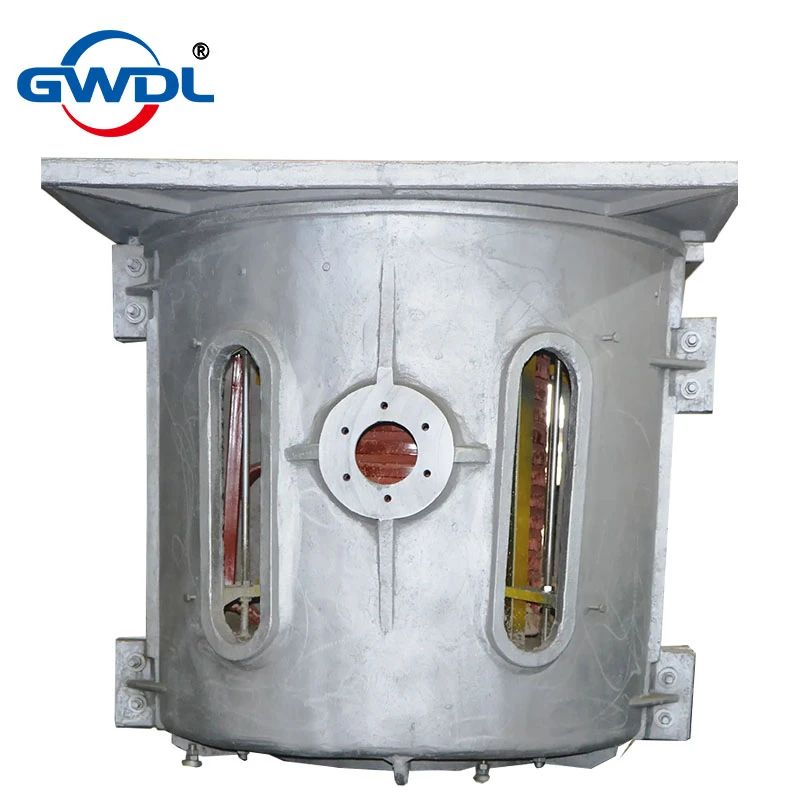

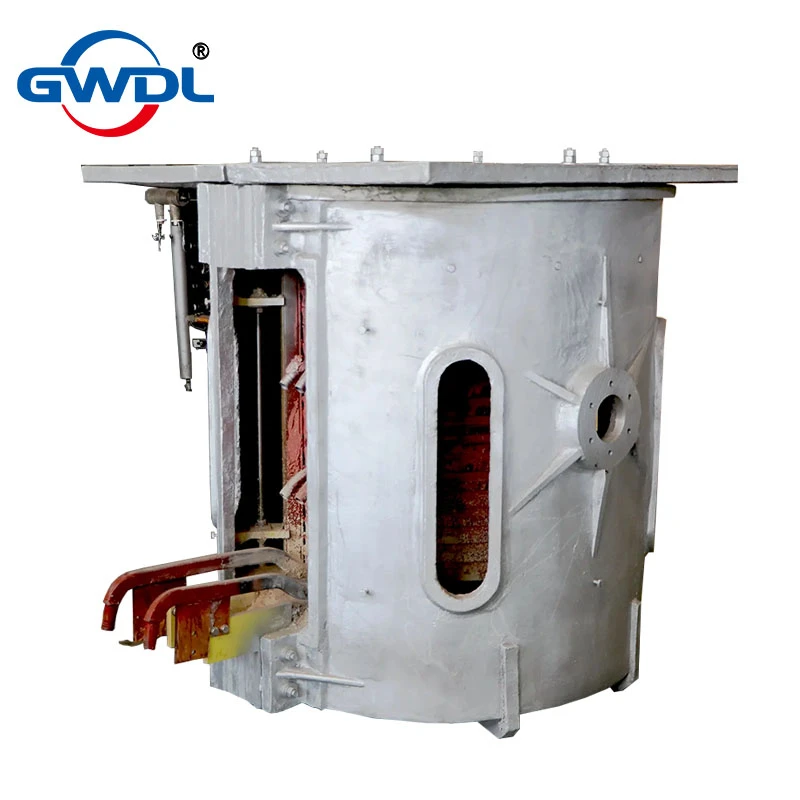

A high-efficiency medium-frequency induction melting furnace designed for foundries, offering rapid melting of 500kg aluminum per batch with energy-saving technology.
| Component | KGPS-0.5T-3 Model | KGPS-0.5T-2 Model |
|---|---|---|
| Input Voltage | 700V → 2800V output to furnace | 400V → 1800V output to furnace |
| Thyristors (KK) | 1000A/2000V × 8 (Xiangfan TAJI) | 1000A/1800V × 8 (Xiangfan TAJI) |
| Thyristors (KP) | 1000A/2500V × 6 | Same |
| Breaker | 1600A (Shanghai People Electric) | Same |
| Busbar | 60mm × 6mm (Larger) | 60mm × 5mm |
| Reactor | 8 turns – 16mm copper tube | 6 turns – 16mm copper tube |
| Remote System | Patented intelligent system (same on both) | Same |
| Capacitors | 2000kF/1200V × 4 (Energy saving: 25kWh/t) | 2000kF/750V × 4 |
| Furnace Voltage | High-voltage (3700V) – saves 200kWh/t | Standard |

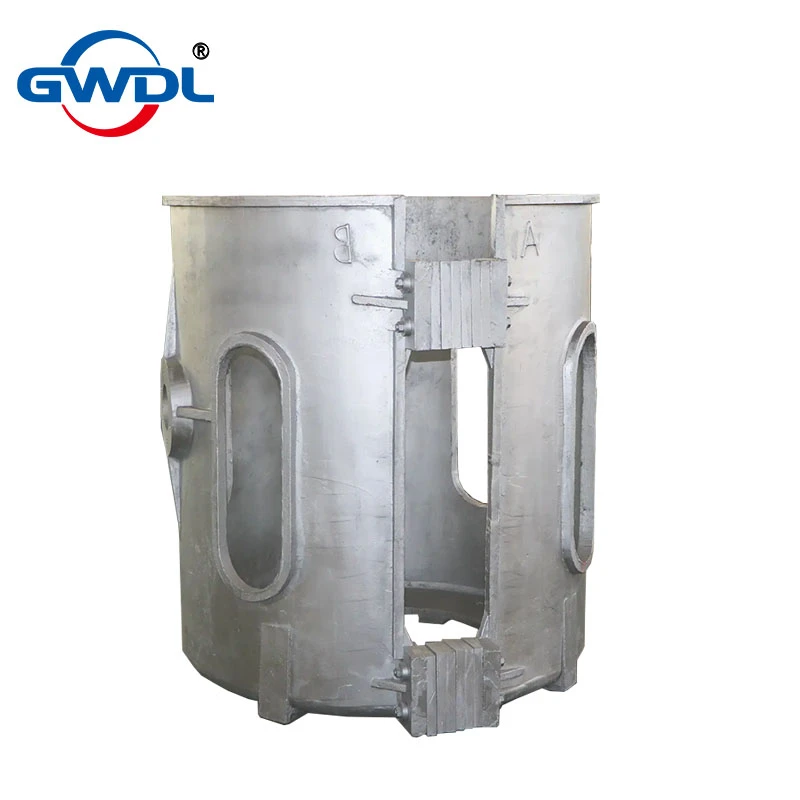

| Shell Size | Ø1.15m × H1.36m | Ø910mm × H1.30m |
| Coil Turns | 30 turns | 17 turns |
| Coil Tube Specs | 25×20×4mm | 25×40×4mm |
| Energy Efficiency | 500–550kWh/ton (40 min, 250kW) | 650–700kWh/ton (50 min, 500kW) |
If energy savings, faster melting, and long-term durability are your priorities, the KGPS-0.5T-3 offers better performance thanks to its higher voltage, longer coil, and boost circuit.
KGPS-0.5T-2 is a reliable standard model with lower upfront voltage requirements.
We understand every foundry has unique requirements. GWDLTHERMO supports flexible customization – from coil size, voltage adaptation, to smart control upgrades – so you get a furnace that truly fits your process. We're here to help you melt smarter.
